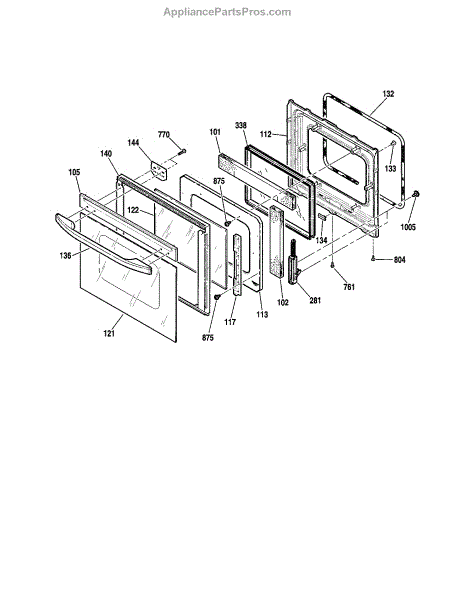

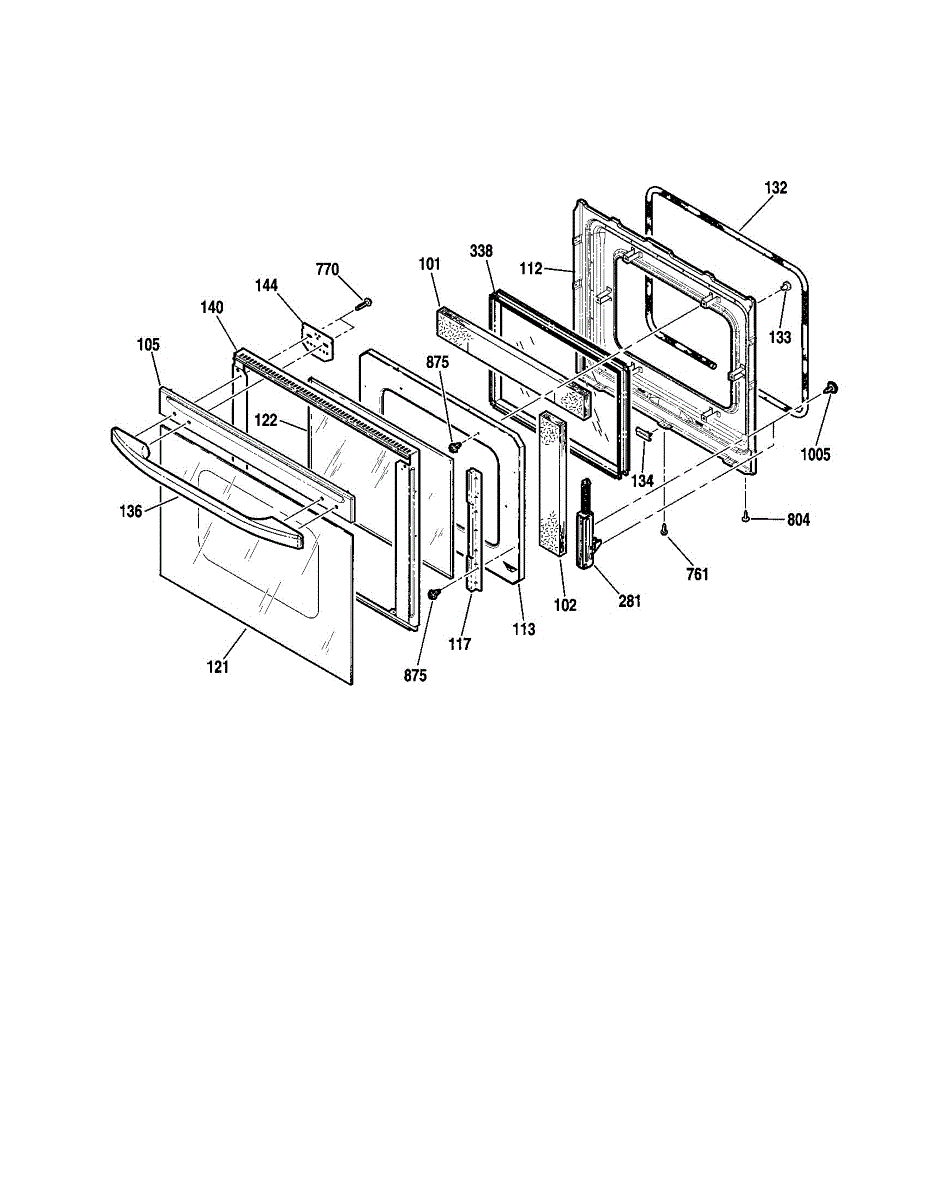

Parts for Kenmore 911.47699100 (91147699100, 911 47699100): Upper And Lower Door Parts

Replace missing or damaged top door insulation in your oven. Restores thermal barrier inside the door to retain heat and improve temperature stability.

Insulation strip for oven doors. Installs between door panels to reduce noise and improve heat retention. Replace if worn, compressed, or missing.

Retains insulation material on your oven door assembly. Replace if the retainer is cracked, broken, or missing, causing insulation to shift or fall out.

Door retainer kit secures the oven door glass panels in place. Replace if retainers are cracked, broken, or missing to restore proper door assembly.

Seals the oven door to retain heat and improve baking efficiency. Replace when worn, cracked, or rigid to stop heat leaks. Verify fit by model number.

Rubber door bumper cushions and stabilizes your oven door. Replaces worn, cracked, or missing bumpers that cause rattling or uneven door closure.

Bottom trim clip secures the lower trim panel on your oven. Replace if trim is loose, rattling, or detached. Verify fit with your model number.

White oven door frame assembly panel that surrounds the door glass. Replace this trim piece if your current frame is cracked, chipped, or discolored.

Reinforcement plate restores structural support where the oven door or trim attaches. Replaces cracked or broken plates to stop sagging and keep panels aligned.

The right lower door hinge is the pivot mechanism mounted at the bottom right corner of your appliance door. It supports the door's weight and keeps it properly aligned as it opens and closes. Replace this part if your door sags, scrapes against the frame, won't stay open at a 90-degree angle, or feels loose and unstable.

Replacement inner glass window assembly for oven doors. Installs between door panels for clear visibility while cooking. Order when cracked, shattered, or broken.

White screw secures panels and trim on ovens and ranges. Replace stripped, corroded, or missing fasteners to restore proper fit and stop rattles.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Black. 8-18 AB HXW 3/8
