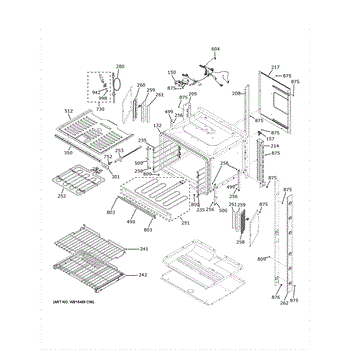

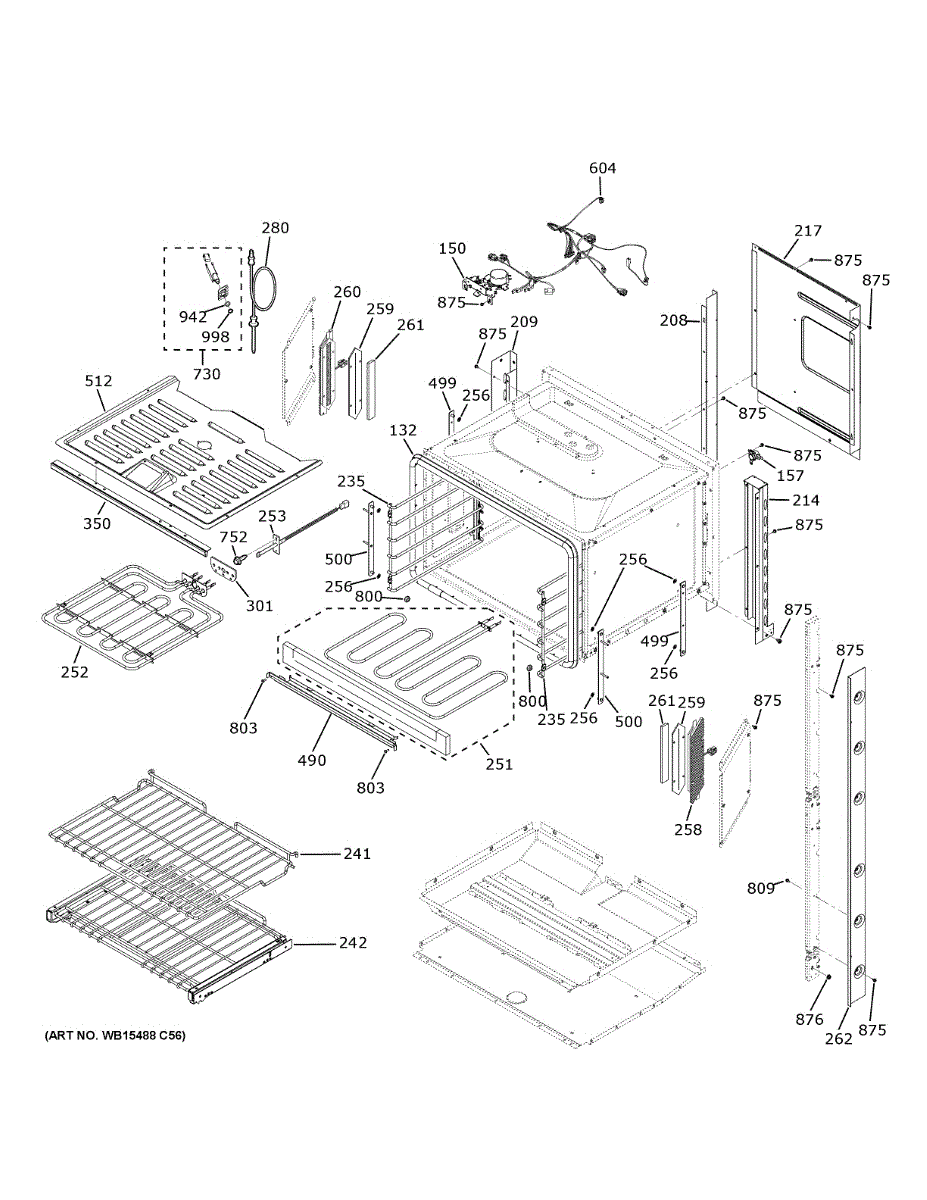

Parts for Ge ZTDX1DPSN2SS: Upper Oven Parts

The Oven door gasket is an OEM part for GE wall ovens and ranges. It fits around the inner rim of the oven door, creating an essential heat and air seal when closed.

Symptoms of a bad door gasket include:

• Excessive heat loss around the door when preheating or cooking
• Ghosting or condensation buildup visible on the door glass
• Worn or misshapen gasket that no longer presses firmly against the door rim

Gasket material naturally hardens over time through repeated exposure to temperature changes. Accidental damage from cleaning can also impact the gasket's integrity. Replacing it with this genuine GE part helps maintain an efficient cooking environment.

This OEM GE replacement gasket is also compatible with some Kenmore, Hotpoint, and RCA wall oven and range models. Proper sealing is important for energy efficiency as well as consistent cooking results.


Note: This latch assembly also includes the oven light switch and plunger. These parts of the latch assembly are not sold separately.

The Latch Assembly is an OEM replacement part for GE electric ovens. It is responsible for securely locking and unlocking the oven door, ensuring that the door remains securely closed during cooking and self cleaning.

Symptoms of a faulty latch assembly include:

• Oven door not closing or latching properly
• Difficulty in opening or closing the oven door
• Oven door not staying securely locked during cooking

A bad latch assembly can occur due to wear and tear over time, mechanical issues, or damage from accidental mishandling. If you notice issues such as the oven door not closing or latching properly, difficulty in opening or closing the door, or the door not staying securely locked during cooking, it may be time to replace the old or damaged latch assembly with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This high limit switch is the temperature safety cut-out for your appliance. It monitors heat and opens the circuit if temperatures rise too high—helping protect components and prevent shutdowns caused by overheating.

• Monitors temperature at a critical location and interrupts power if limits are exceeded
• Helps protect internal components from heat damage
• Can help address: unit won't power on, shuts off during use, or runs without heating
• Replace if it remains open (no continuity) when cool or shows visible damage

• Disconnect power at the breaker before servicing; never work on a live appliance
• If servicing a microwave, be aware the high-voltage capacitor can retain a dangerous charge
• Note wire positions and transfer leads one at a time; mount the switch securely in the original location
• Do not bypass a safety switch; also correct any airflow/ventilation issues that may have caused overheating

Replace a worn or broken right-side oven rack guide to restore smooth rack movement and stable support when sliding cookware in and out of the oven. Helps keep the rack aligned and prevents binding or falling. What it does:

• Supports the right side of the oven rack so it slides in and out smoothly
• Prevents the rack from tipping or falling when loaded
• Fixes symptoms like a sagging or sticking rack and uneven rack alignment
• Durable replacement for plastic or metal guides worn from normal use

• One right-side oven rack guide

• Disconnect power to the appliance (and shut off gas if applicable) before starting
• Remove oven racks and any insulation or trim that blocks access to the guide
• Typically secures with clips or screws; retain hardware and reinstall securely

A left-side oven rack guide that supports and aligns the oven rack so it slides smoothly and stays in position. Replacing a worn or broken guide restores stable rack movement and helps prevent the rack from catching or falling. What it does:

• Supports the oven rack on the left side and keeps the rack seated in the track.
• Guides the rack as it slides in and out to reduce binding and uneven movement.
• Common symptom: rack sags, tilts, or falls off the track when pulled.
• Common symptom: rack binds, scrapes, or does not slide smoothly.

• One left oven rack guide.

• Disconnect power to the oven and allow it to cool before starting any service.
• Remove oven racks and any obstructions before replacing the guide.
• Replacement is typically a direct swap; keep hardware and fasteners with the unit if they are reused.

This flat 30" oven rack restores the proper cooking surface in your range, giving even support for cookware and bakeware. It replaces bent, warped or missing racks so pans sit level for better results. What it does

• Provides a flat, stable shelf for baking sheets, pans and dishes
• Replaces damaged or warped oven racks that cause uneven cooking or tipping
• Slides into existing rack supports to restore correct shelf positions
• Helps maintain airflow for even heat distribution when used as intended

• Allow the oven to cool completely and disconnect power before installing
• Slide rack into the desired pair of oven support rails until fully seated
• Inspect support rails for damage and ensure the rack moves smoothly
• Clean oven interior and the rack per the manufacturer's cleaning instructions before use

This oven rack slide assembly replaces the worn or damaged slide that guides a 30" oven rack, restoring smooth, stable rack movement and preventing the rack from falling or binding during use. What it does:

• Guides the oven rack in and out smoothly for loading and unloading
• Holds the rack securely to prevent tipping or falling when extended
• Replaces bent, worn, or broken slides that cause scraping or binding
• Helps restore even rack alignment and proper oven function

• Disconnect power to the appliance before starting any repair
• Remove oven racks and cool completely before installing the slide assembly
• Basic hand tools may be required; follow OEM instructions for proper alignment

The Hidden Bake Element Kit is an OEM component specifically designed for GE wall ovens. This kit contains the bake heating element, mounting bracket, and wiring harness necessary to complete the installation.

Causes of a bad bake element can include deteriorating insulation leading to shorts or failures over time, or damage from baking spills or impact.

Symptoms of a bad bake element include:

• Inconsistent or uneven baking
• Reduced heating power
• The oven not heating up to the set temperature
• Error codes related to bake element operation

This OEM GE replacement kit is also compatible with Hotpoint, RCA, and select Kenmore models.

This broil element is the replaceable upper heating element used for broiling and high-heat top-heat baking in electric ovens. It restores focused top-side heat so the oven can brown and broil food properly. What it does:

• Heats from the top of the oven cavity to brown, sear, or broil food items
• Restores broil function when the element is visibly damaged or no longer heats
• Works with the oven's broil or self-clean cycles that use the upper element
• Safe, direct replacement for the oven's upper heating element when compatible

• One broil element

• Disconnect power to the range at the breaker or unplug before servicing
• Access usually requires removing the oven cavity's top cover or back panel and disconnecting the element terminals
• Handle carefully to avoid bending or damaging the element; wear gloves to protect hands

The Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or extended high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to maintain the set oven temperature
• Fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This retainer bolt fastens and secures internal appliance components to keep panels and assemblies stable during operation. It's a direct-fit replacement designed to restore proper hold and reduce looseness or vibration. What it does:

• Secures appliance parts and assemblies in place to prevent movement during use
• Restores proper alignment of panels or components that become loose
• Functions as a hardware fastener where the original retainer bolt was used

• One retainer bolt

• Disconnect power and, if applicable, gas supply before starting any repair
• Start threads by hand to avoid cross-threading; tighten with appropriate hand tools
• Do not overtighten—secure snugly to avoid stripping threads or damaging components

This LED board assembly replaces a failed right-side LED lighting/control board to restore proper LED illumination and signaling on compatible appliances. It provides the board, connectors, and pre-mounted LEDs so lights operate as intended. What it does:

• Powers and controls the right-side LED lighting and status indicators
• Restores LED illumination when lights are dim, flicker, or do not turn on
• Supports normal user-interface light functions tied to the right-side circuit
• Helps eliminate intermittent or non-functioning LED behavior caused by a faulty board

• One LED board assembly with attached connectors and pre-mounted LEDs

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the board by its edges and avoid touching components to prevent ESD damage
• Verify connector orientation and seating; do not force connectors

This LED light board assembly provides interior lighting for compatible refrigerators, restoring clear, efficient illumination so contents are easy to see. It replaces a faulty board that powers LED strips or modules. What it does:

• Supplies power and signal to the refrigerator's LED lighting for bright, even interior illumination
• Replaces boards that cause dim, flickering, or no light inside the appliance
• Works with existing LED modules and mounting brackets when the board is the failed component
• Helps restore normal light operation without replacing full lighting housings

• Disconnect power (unplug or shut off breaker) before any service to avoid shock
• Handle the board by edges and avoid touching circuitry or LED contacts to prevent damage
• Reinstall any covers or diffusers securely; confirm wiring connectors are fully seated

This glass LED light lens protects and diffuses the appliance's LED lamp for clear, even interior illumination. It restores proper light distribution and replaces cracked, cloudy or missing lenses to improve visibility. What it does:

• Covers and protects the LED module from spills, debris and impact
• Diffuses LED emissions for more even, shadow-free lighting
• Replaces lenses that are cracked, chipped, discolored or loose
• Can help resolve dim or uneven interior lighting when lens damage is the cause

• Disconnect power to the appliance before starting any work
• Handle the glass carefully to avoid breakage and wear protective gloves and eye protection
• Remove any trim or housing per the appliance's service instructions to access the lens
• Secure fasteners; do not overtighten clips or screws

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This heat-resistant gasket fits around the broil element where it passes through the oven liner. It helps seal the opening to reduce heat and moisture leaks and provides a secure, finished fit for the element.

• Seals the broil element pass-through at the oven liner to help contain heat, steam, and splatters
• Helps protect insulation and wiring behind the liner from spills and debris
• Cushions the mounting point to reduce metal-to-metal wear and rattles
• Common signs it's needed: brittle, cracked, or missing gasket; discoloration or residue at the pass-through; element feels loose at the mounting point

• Disconnect power at the breaker and let the oven cool completely before servicing
• Remove broil element screws and gently lower or pull the element forward to access the pass-through
• Remove the old gasket; seat the new gasket evenly without stretching or pinching; don't overtighten hardware
• Reconnect firmly and route wires away from sharp edges before reassembly

This hidden bake cover replaces the metal shield that protects and conceals the oven's hidden bake element, helping keep the element clean and directing heat for consistent cooking performance. What it does

• Shields the hidden bake element from spills and debris to reduce cleaning and potential damage.
• Helps direct heat from the hidden bake element for more even oven temperatures.
• Replaces a cracked, warped, or missing cover that can expose the element or allow food to fall onto it.
• Compatible with common symptom: visible damage or a missing cover after service or heavy use.

• Disconnect power to the oven at the breaker before starting any work.
• Allow the oven to cool completely; the element and surrounding parts can retain heat.
• Remove mounting screws or clips used by your model and lift the old cover out; handle carefully to avoid bending.
• The cover seats flat against the element support and reinstall fasteners securely.

This replacement top oven plate restores the oven's interior surface and protective covering, helping maintain proper clearance and protecting wiring and insulation from drips or direct heat. Designed to match OEM fit and form for compatible GE ranges. What it does:

• Covers the oven ceiling to protect internal components from spills and debris
• Helps maintain proper airflow and heat path by keeping the oven cavity intact
• Commonly replaced when the plate is warped, cracked, or showing heavy corrosion
• Can reduce burning odors caused by food debris contacting hot components

• Disconnect power (unplug or shut off breaker) and ensure the oven is completely cool before starting
• Use hand tools to remove mounting screws/retainers; keep fasteners for re-use unless damaged
• Handle the plate carefully—sharp edges or corrosion can cause cuts

The Meat Probe and Harness Assembly is an OEM part for GE ovens. This probe monitors the internal temperature of meat or other food items during the cooking cycle.

Causes can be regular wear and damage from repeated insertions into food over the appliance's lifespan. Liquid ingress into the control panel area could compromise electrical connections.

Symptoms of a bad probe or harness include:

• Inaccurate or unstable temperature readings displayed
• Failure of the unit to switch cooking modes at pre-set temperature thresholds
• Unreliable monitoring of food doneness

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small replacement mounting screw used to secure panels and components in household appliances. Restores proper fastening to reduce rattling, loose panels, and misaligned parts for safer, quieter operation. What it does:

• Fastens panels, brackets, and trim to keep appliance parts securely in place.
• Stops vibration-related noise caused by loose fasteners.
• Prevents components from shifting, which can affect fit and function.
• Works wherever the OEM screw specification matches the application.

• Use the matching screw size and thread type for the original hole; do not force a mismatched screw.
• Turn off and disconnect power before accessing internal components to avoid shock.
• Hand-start threads to prevent cross-threading; tighten until snug—do not over-torque.
• If multiple screws or a specific length/type is required, verify the full parts list for your model before ordering.

This is a replacement #8-18 screw, 0.750 inches long with a nickel finish, used to secure panels and components on compatible appliances. It restores proper fastening and helps eliminate loose or rattling parts. What it does:

• Fastens appliance panels, brackets or small components where a #8-18 x 3/4" screw is required
• Replaces missing or damaged screws that cause loose panels, rattles, or misalignment
• Provides a corrosion-resistant nickel finish for longer-lasting attachment
• Matches OEM thread and length for a secure fit

• One (1) screw as shown

• Use the correct screwdriver or bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal panels
• Replace only with the same size and thread to ensure proper fit; do not overtighten
