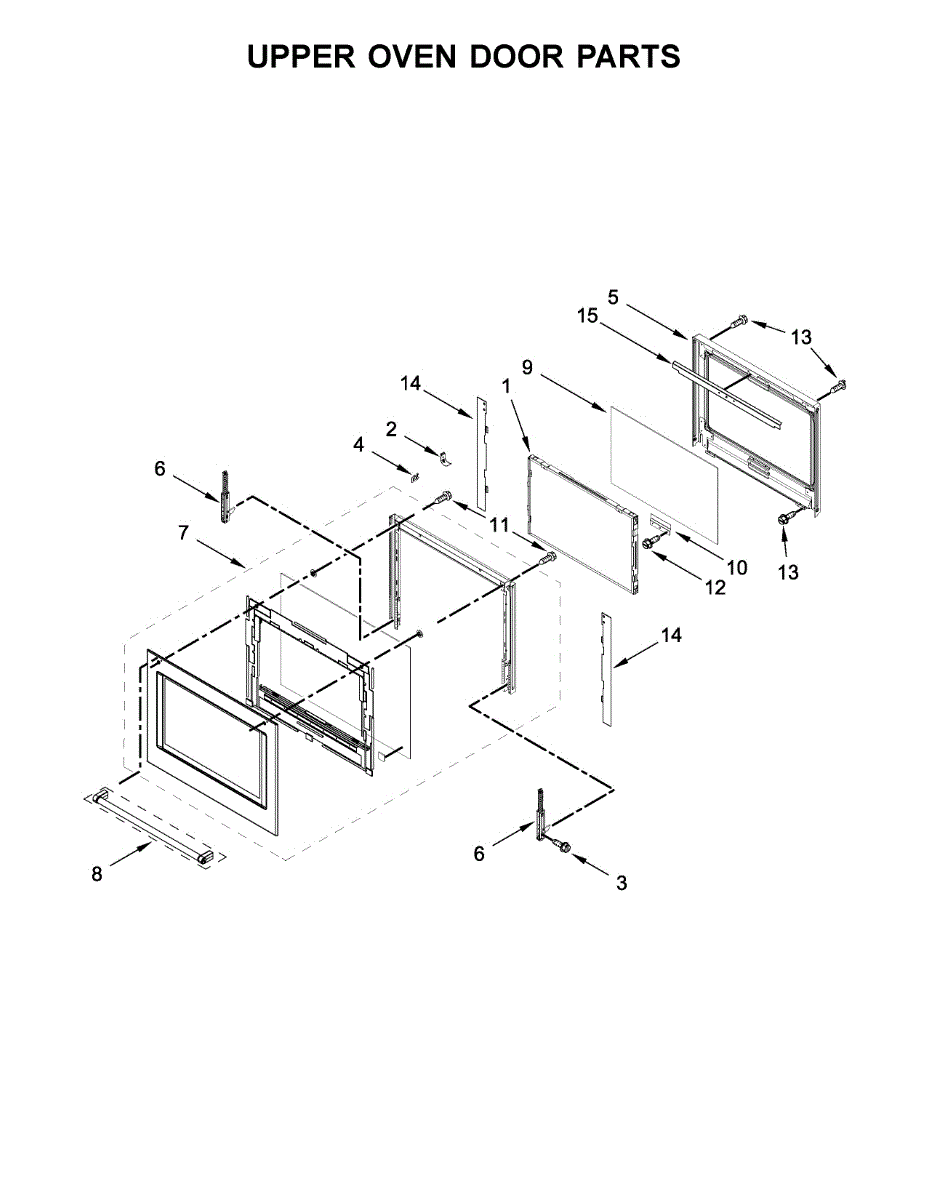

Parts for Kitchenaid KODE507ESS03: Upper Oven Door Parts

Sealed, multi-pane glass window pack assembly that installs in your oven door. Replace when glass is cracked, broken, cloudy, or damaged.

Secures oven glass panel in place and prevents movement or rattling. Replace this bracket if cracked, broken, or missing to stabilize glass and restore fit.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

Secures oven door glass to the door assembly, maintaining stability and proper seal. Replace if worn or broken to restore door alignment. Verify fit with your model.

This welded liner assembly replaces a damaged or corroded oven cavity liner to restore the oven's interior structure and heat containment. It provides a factory-fit replacement for ovens that require a single-piece welded liner. What it does:

• Replaces a warped, cracked, or rusted oven cavity liner to improve structural integrity
• Helps maintain even heat distribution by restoring the oven's original interior surface
• Reduces heat loss from the cavity and helps protect insulation and exterior panels
• Matches OEM fit and mounting points for straightforward refit

• 1 welded oven liner assembly

• Installation requires removing the oven from its enclosure; disconnect power before service
• Handle carefully to avoid scratching the finished surfaces; wear gloves to protect from sharp edges
• Verify all mounting hardware and seals are present and in good condition before final reassembly

This door hinge secures and pivots the refrigerator door so it opens and closes smoothly, restoring proper door alignment and seal for reliable cooling performance. What it does:

• Supports the refrigerator door and provides a smooth pivot point for opening and closing
• Helps maintain proper door alignment to ensure a tight seal and consistent internal temperature
• Can prevent or correct door sag, rubbing, or uneven gaps
• Reduces noise or sticking that occurs when the hinge is worn or damaged

• Disconnect power to the appliance before attempting repairs and work with the door supported to prevent dropping
• Use appropriate tools to remove and reinstall hinge fasteners; keep track of any washers or shims
• Verify door alignment and gasket seat after installation; adjust hinge position as needed before fully tightening
• If other hinge hardware is worn or damaged, replace those components to ensure proper function

Black outer door glass panel for electric wall ovens. Replaces cracked, broken, or shattered oven door glass. Direct fit for select models.

White outer door glass panel for electric wall ovens. Replaces cracked, broken, or discolored glass. Restores appearance and door visibility.

Black stainless steel outer door glass panel for wall ovens. Replaces cracked, chipped, or broken door glass. Installs on exterior of oven door.

Complete glass door assembly for electric wall ovens. Includes outer frame and inner glass panel. Replace if cracked, shattered, or damaged for safe viewing.

This genuine replacement door handle restores a secure grip and smooth opening on compatible refrigerators. It replaces a cracked, loose, or missing handle so the door can be used safely and comfortably. What it does:

• Provides a solid gripping surface to open and close the fridge door
• Replaces handles that are cracked, broken, or detached
• Helps prevent injury from sharp or damaged edges on the original handle
• Restores proper door operation when the handle no longer functions

• Unplug the appliance or disconnect power before starting any repair
• Remove any food and open the door to access mounting screws or clips
• Align the handle with mounting points and secure with original screws; do not overtighten
• Wear gloves to protect hands from sharp edges and use proper tools for a safe installation

Replaces cracked or damaged inner door glass panel on wall ovens and ranges. Restores visibility and maintains door seal. Confirm fit with your model number.

Mounting bracket that secures the glass panel in your wall oven door. Replace if the bracket is cracked, bent, or missing to properly hold the glass in place.

Fastens panels, brackets, trim, and hardware in your oven or range. Replace missing, stripped, or damaged screws to eliminate rattles and secure components.

Mounting screw secures panels, brackets, and components inside your oven. Replace missing, stripped, or damaged screws to restore proper fit.

Secures the glass panel to your wall oven door frame. Replace this bracket if it's cracked, broken, or missing to properly support the door glass.

Replacement glass door bracket for wall ovens. Secures the glass panel to the door frame. Replace if bracket is cracked, broken, or missing parts.

Secures and aligns the glass panel in your oven door assembly. Replace this bracket if it's cracked, broken, or missing to restore proper door fit.
