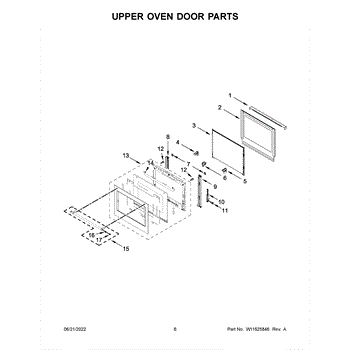

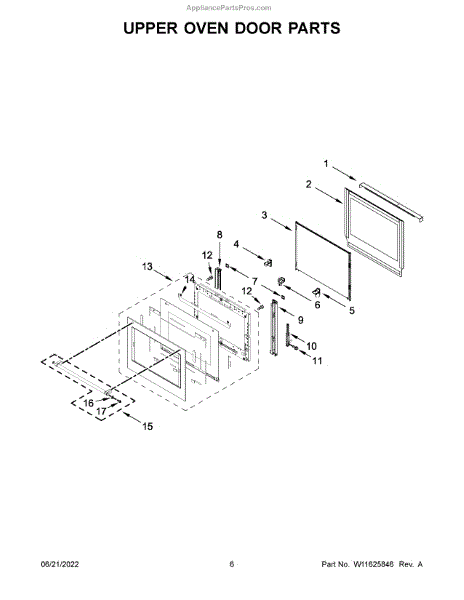

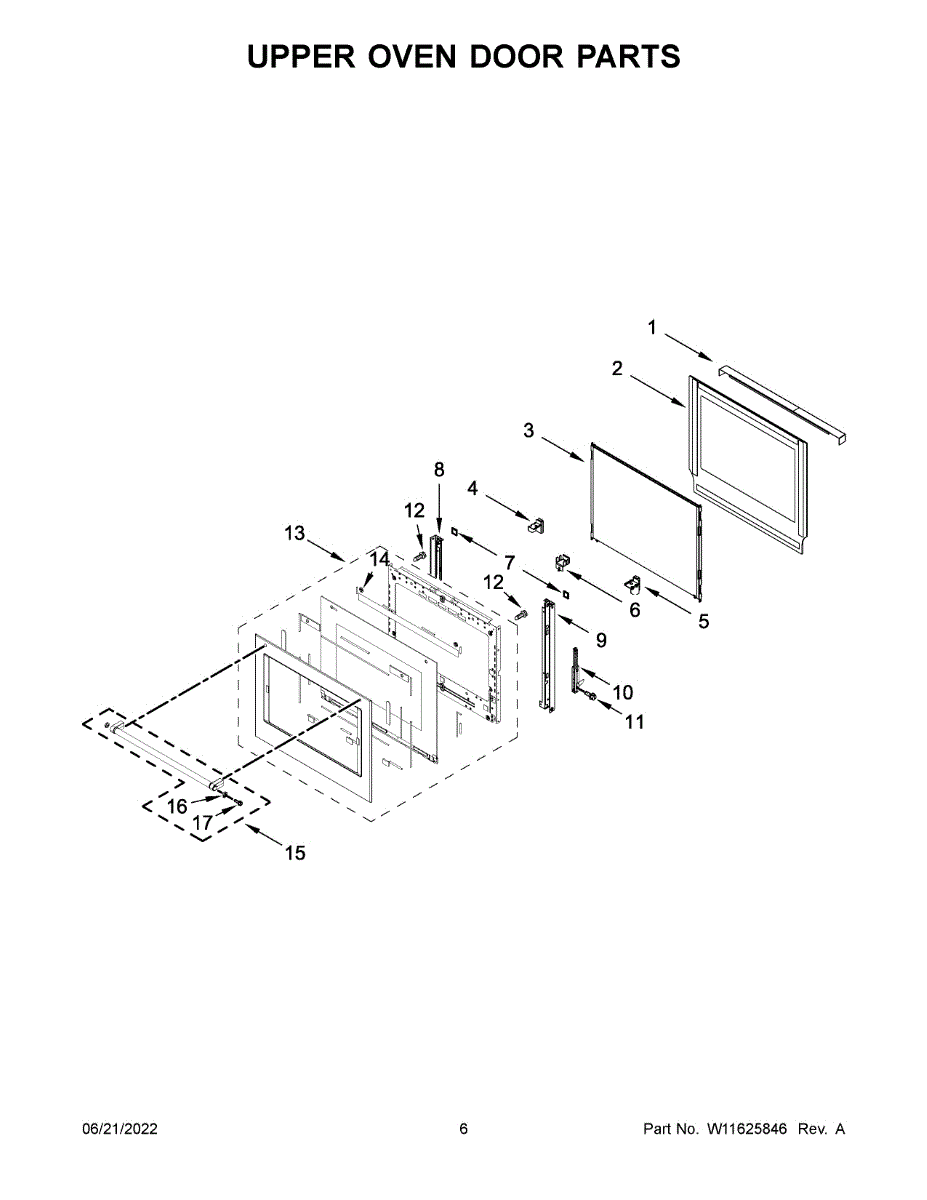

Parts for Kitchenaid KODE900HBS20: Upper Oven Door Parts

Positions and supports exhaust components at the top outlet for proper duct alignment and seal. Replace if damaged or missing to prevent air leaks and vibration.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

This flat washer is a direct-replacement fastening washer that restores proper spacing and fastening for appliance panels and components. It helps re-secure loose hardware so assemblies sit and operate as intended. What it does:

• Provides a smooth bearing surface for bolts and screws to distribute load
• Helps keep fasteners tight to prevent wobble or loose panels
• Restores correct spacing and alignment between mating parts
• Can reduce vibration-related noise when worn or missing

• One replacement flat washer

• Disconnect power and water before starting repairs
• Use the correct size socket or driver to remove and reinstall fasteners
• Inspect mating fastener and surrounding parts for wear; replace if damaged
• Tighten hardware securely but avoid overtightening which can deform the washer

Secures panels, trim, and brackets in refrigerators, ranges, ovens, and microwaves. Replace if missing, stripped, or damaged during repairs or maintenance.
