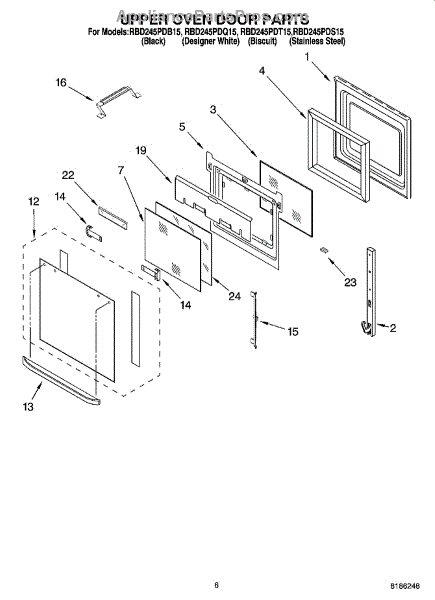

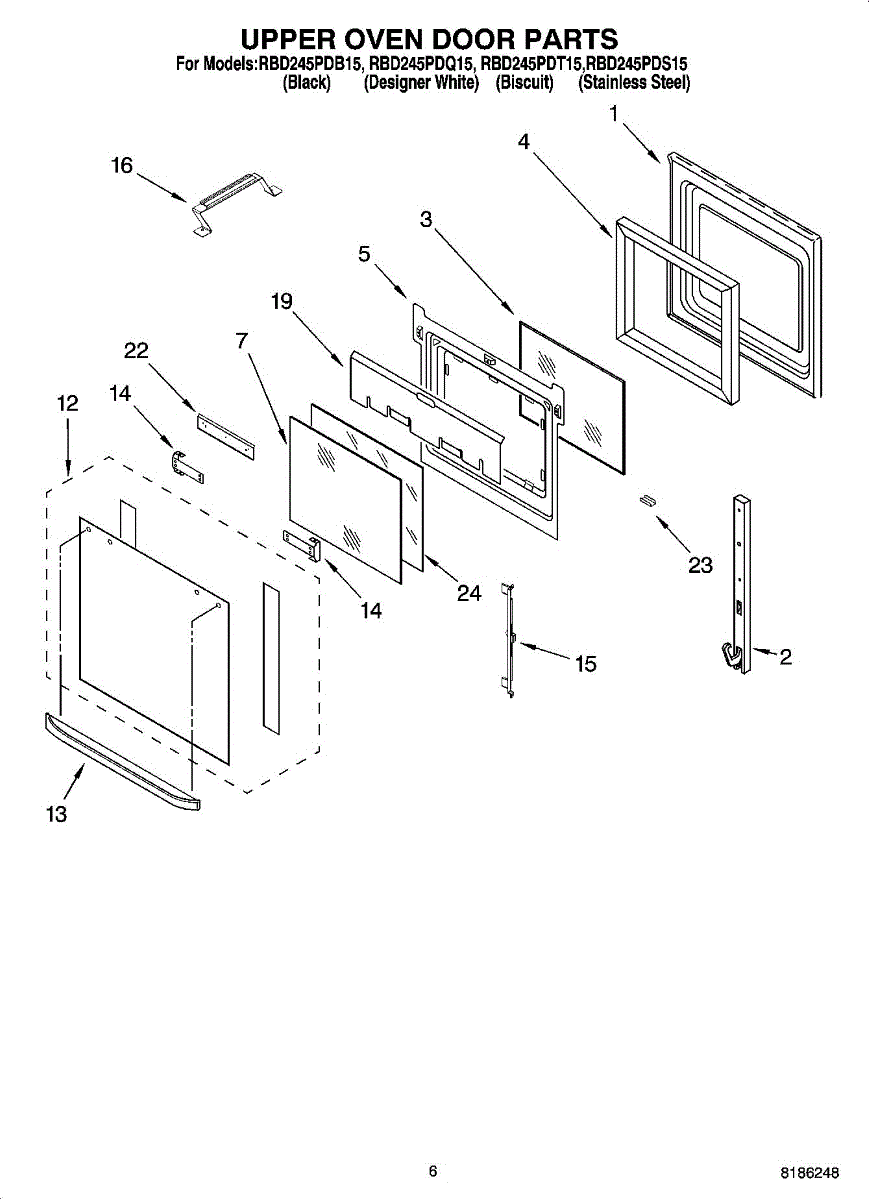

Parts for Whirlpool RBD245PDB15: 04 - Upper Oven Door Parts

Restores the interior surface of your oven door, protecting insulation and ensuring proper sealing. Replace when cracked, dented, or heat-damaged. Verify fit with your model number.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Replacement inner glass for oven doors. Installs as the interior viewing window. Needed when glass is cracked, broken, or shattered. Fits within door frame.

Replaces worn, torn, or deteriorated oven cavity insulation. Restores the thermal barrier to contain heat and protect surrounding panels from damage.

Oven panel retainer secures interior or door panels in place. Replace if broken, cracked, or missing to restore proper panel alignment and fit.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Inner oven door glass panel that installs behind the outer glass. Replace if cracked, shattered, or cloudy to restore safe heat retention and visibility.

Mounting bracket for wall ovens. Secures the oven to the cabinet cutout. Replace if bent, rusted, or damaged during installation or service work.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Color: Black

Color: White.

Replace cracked, cloudy, or shattered inner oven door glass to restore visibility and proper door seal. Fits behind outer panel. Verify fit with your model.
