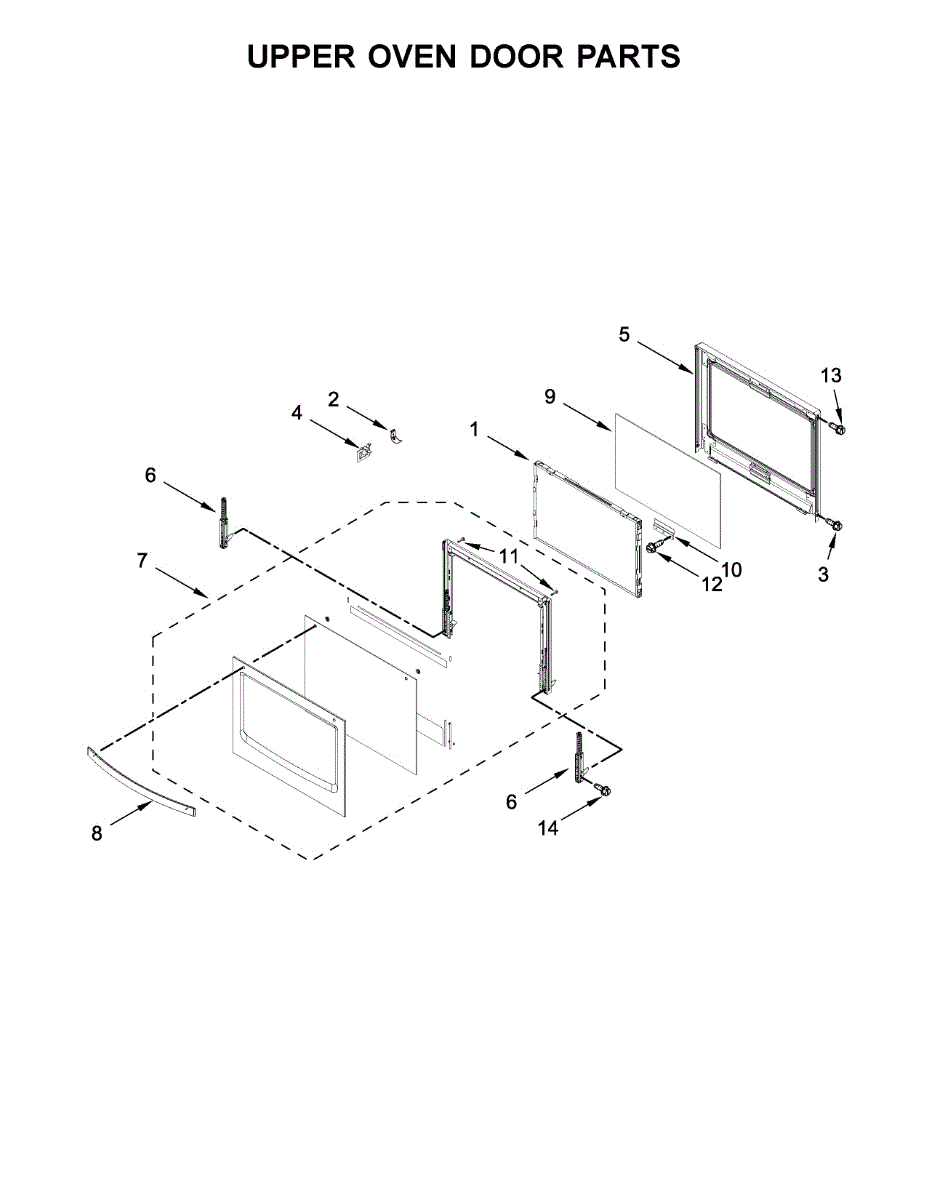

Parts for Whirlpool WOD51EC7HS00: Upper Oven Door Parts

This factory window pack assembly creates the sealed, insulated glass window in your oven door. It restores a clear view into the cavity and helps the appliance hold temperature when the original window is broken, cloudy, or damaged.

• Forms the sealed, multi-pane window within the oven door
• Helps contain heat and maintain consistent baking temperatures
• Restores visibility into the oven cavity
• Common symptoms: cracked/shattered glass, fogging or streaks between panes, rattling glass, heat escaping near the window area

• Disconnect power and allow the oven to cool completely before servicing
• Wear cut-resistant gloves and eye protection; handle glass vertically and support the edges
• Door removal and partial disassembly are typically required; keep screws and trim organized
• Transfer any reusable brackets/insulation per your model's service information

This glass support bracket secures a stove/oven or appliance glass panel in place to prevent movement and ensure proper alignment. It replaces worn or broken brackets to help stabilize the glass and reduce noise or rattling. What it does:

• Holds a glass panel or trim securely to the appliance frame
• Restores proper glass alignment and prevents uneven gaps
• Stops rattling or vibration caused by a loose or broken bracket
• Helps maintain safe, stable placement of the glass during use

• One glass support bracket

• Disconnect power and let surfaces cool before beginning work
• Handle glass carefully; support the panel to avoid dropping or cracking
• Use correct fasteners and avoid over-tightening to prevent glass stress
• Replace the glass along with damaged hardware if the glass is cracked or chips are present.

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part

This glass bracket secures the oven door glass to the door assembly, keeping the glass stable during normal use and helping maintain a proper seal. Replaces a worn or broken bracket to restore door stability and alignment. What it does:

• Holds the oven door glass in place so the door opens, closes, and seals correctly
• Prevents rattling, movement, or misalignment of the inner/outer door glass
• Helps maintain even heat containment by keeping the glass properly positioned
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Basic hand tools required; avoid over-tightening fasteners which can crack the glass
• Disconnect power to the appliance before removing or servicing the door
• Support the door and glass during removal to prevent dropping or breakage

This welded liner assembly replaces a damaged or corroded oven cavity liner to restore the oven's interior structure and heat containment. It provides a factory-fit replacement for ovens that require a single-piece welded liner. What it does:

• Replaces a warped, cracked, or rusted oven cavity liner to improve structural integrity
• Helps maintain even heat distribution by restoring the oven's original interior surface
• Reduces heat loss from the cavity and helps protect insulation and exterior panels
• Matches OEM fit and mounting points for straightforward refit

• 1 welded oven liner assembly

• Installation requires removing the oven from its enclosure; disconnect power before service
• Handle carefully to avoid scratching the finished surfaces; wear gloves to protect from sharp edges
• Verify all mounting hardware and seals are present and in good condition before final reassembly

This door hinge is a replacement hinge that restores proper door alignment and secure operation so the appliance door opens and closes smoothly. Fits the factory hinge mounting and matches OEM form and function. What it does

• Re-establishes correct door alignment to prevent sagging or gaps
• Helps the door latch and seal properly for consistent closing
• Reduces rubbing, binding, or squeaking during door movement
• Restores smooth, predictable hinge rotation and support

• Use basic hand tools; follow the appliance manufacturer's disassembly instructions.
• Support the door while removing/installing the hinge to prevent dropping or damage.
• Replace only the hinge(s) specified for your model.
• Disconnect power and remove perishable contents from the appliance if needed for safe access.

This inner oven door glass replaces a cracked, cloudy or damaged panel to restore visibility and safe operation. It provides the clear viewing window behind the oven door and helps retain cooking heat. What it does:

• Replaces broken, chipped or shattered inner oven door glass
• Restores clear visibility to monitor food without opening the door
• Helps maintain oven heat containment when sealed properly
• Reduces drafts and minimizes heat loss through the door

• One inner oven door glass panel as shown

• Disconnect power to the oven before beginning any disassembly
• Handle with care and wear cut-resistant gloves; glass can be sharp if broken
• Follow OEM disassembly steps for removing the oven door and inner glass
• If clips, brackets or gaskets are damaged, replace them per OEM guidance

Color: Stainless

Restore a safe, efficient oven door with this inner glass panel. It replaces the heat-resistant liner on the inside of the door, helping retain heat and keep the viewing window clear during cooking. What it does:

• Forms the inner layer of the oven door window and helps insulate the oven cavity
• Maintains a clear interior-facing surface for viewing food
• A damaged panel can cause heat loss, temperature fluctuations, or poor visibility through the door window
• Replace if the glass is cracked, shattered, chipped, or permanently hazy/etched

• 1 inner oven door glass panel

• Disconnect power at the breaker and allow the oven to cool completely before service
• Wear cut-resistant gloves and eye protection; glass edges can be sharp
• Remove the door and place it face down on a protected surface; follow model-specific steps to access the inner pane
• Transfer any retainers/brackets as needed and tighten hardware evenly without overtightening

This factory fastener secures appliance components so panels, brackets, and handles stay tight and aligned. Replace a missing or stripped screw to stop rattles and keep assemblies firmly in place.

• Fastens appliance parts such as panels, brackets, trim, or hardware
• Replaces a missing, loose, or stripped fastener
• Helps eliminate vibration noise and wobbly components
• Restores proper alignment and secure mounting

• Disconnect power; for water- or gas-connected appliances, shut off supply lines before service
• Match length/thread to the original location; start threads by hand to avoid cross-threading
• Use the correct driver bit to prevent stripping the head
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing
