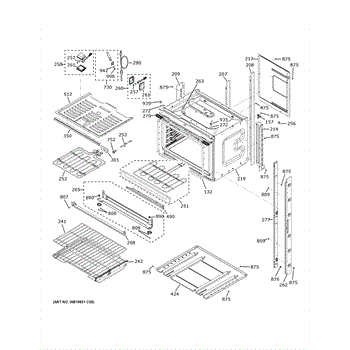

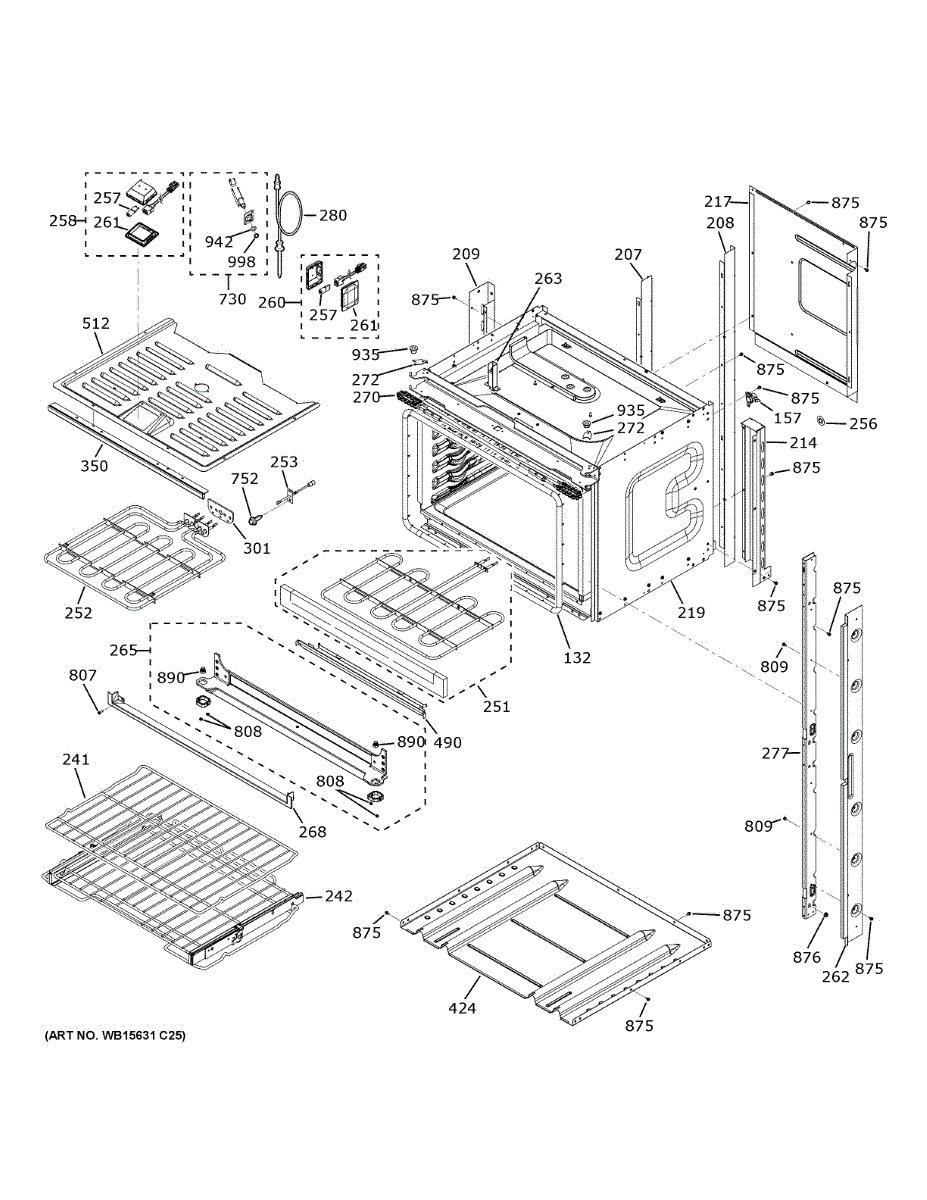

Parts for Ge CTD90FP3N1D1: Upper Oven Parts

The Oven door gasket is an OEM part for GE wall ovens and ranges. It fits around the inner rim of the oven door, creating an essential heat and air seal when closed.

Symptoms of a bad door gasket include:

• Excessive heat loss around the door when preheating or cooking
• Ghosting or condensation buildup visible on the door glass
• Worn or misshapen gasket that no longer presses firmly against the door rim

Gasket material naturally hardens over time through repeated exposure to temperature changes. Accidental damage from cleaning can also impact the gasket's integrity. Replacing it with this genuine GE part helps maintain an efficient cooking environment.

This OEM GE replacement gasket is also compatible with some Kenmore, Hotpoint, and RCA wall oven and range models. Proper sealing is important for energy efficiency as well as consistent cooking results.


This high limit switch is the temperature safety cut-out for your appliance. It monitors heat and opens the circuit if temperatures rise too high—helping protect components and prevent shutdowns caused by overheating.

• Monitors temperature at a critical location and interrupts power if limits are exceeded
• Helps protect internal components from heat damage
• Can help address: unit won't power on, shuts off during use, or runs without heating
• Replace if it remains open (no continuity) when cool or shows visible damage

• Disconnect power at the breaker before servicing; never work on a live appliance
• If servicing a microwave, be aware the high-voltage capacitor can retain a dangerous charge
• Note wire positions and transfer leads one at a time; mount the switch securely in the original location
• Do not bypass a safety switch; also correct any airflow/ventilation issues that may have caused overheating

This air center divider is the interior air baffle that directs airflow inside the refrigerator compartment for more even temperature control and circulation. It replaces a cracked, missing, or damaged center air divider to restore normal airflow paths. What it does:

• Guides cooled air through the refrigerator compartment to help maintain even temperatures
• Prevents air leaks and improper circulation caused by broken or warped dividers
• Helps reduce warm spots and uneven cooling inside the fresh-food section
• Restores proper airflow after impact damage or plastic fatigue

• One air center divider

• Disconnect power to the appliance before starting any work
• Remove shelves and related trim to access the center air baffle; retain all fasteners
• Handle plastic tabs/clips gently to avoid breakage during removal and installation

Restore a safe, level shelf inside your oven. This replacement oven rack supports bakeware securely and lets you position pans at the right height for baking, roasting, or broiling when your original rack is bent, rusted, or missing.

• Provides a stable, heat-safe surface for cookware inside the oven
• Slides on the side rails at multiple positions to set cooking height
• Keeps pans level and properly supported when correctly seated
• Common signs it's needed: rack is bent/warped, flaking or rusted, doesn't slide properly, or missing

• Allow the oven to cool completely; wear gloves to protect hands
• To remove the old rack, pull it forward to the stop, lift the front to clear the stops, and pull straight out
• To install, align the rear of the rack with the side rails, keep level, and slide fully back until seated

This rack oven slide assembly replaces a worn or damaged oven rack slide to restore smooth rack movement and secure support for oven racks. It helps racks slide in and out without sticking or sagging for safer loading and unloading. What it does:

• Supports and guides the oven rack along the oven cavity for smooth in/out motion
• Replaces bent, worn, or broken slides that cause rack sticking or uneven movement
• Helps maintain proper rack alignment so cookware stays level during use
• Reduces rattling or clunking noises caused by damaged slide hardware

• Disconnect power (and gas if applicable) before starting any repair; allow the appliance to cool.
• Use appropriate hand tools; keep track of mounting hardware and orientation during removal.
• Align the slide with existing mounting points; secure fasteners snugly but avoid over-tightening.
• Test rack movement before completing reassembly; re-check alignment and fasteners if movement is still restricted.

The Hidden Bake Element Kit is an OEM component specifically designed for GE wall ovens. This kit contains the bake heating element, mounting bracket, and wiring harness necessary to complete the installation.

Causes of a bad bake element can include deteriorating insulation leading to shorts or failures over time, or damage from baking spills or impact.

Symptoms of a bad bake element include:

• Inconsistent or uneven baking
• Reduced heating power
• The oven not heating up to the set temperature
• Error codes related to bake element operation

This OEM GE replacement kit is also compatible with Hotpoint, RCA, and select Kenmore models.

This broil element is the replaceable upper heating element used for broiling and high-heat top-heat baking in electric ovens. It restores focused top-side heat so the oven can brown and broil food properly. What it does:

• Heats from the top of the oven cavity to brown, sear, or broil food items
• Restores broil function when the element is visibly damaged or no longer heats
• Works with the oven's broil or self-clean cycles that use the upper element
• Safe, direct replacement for the oven's upper heating element when compatible

• One broil element

• Disconnect power to the range at the breaker or unplug before servicing
• Access usually requires removing the oven cavity's top cover or back panel and disconnecting the element terminals
• Handle carefully to avoid bending or damaging the element; wear gloves to protect hands

The Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or extended high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to maintain the set oven temperature
• Fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This retainer bolt fastens and secures internal appliance components to keep panels and assemblies stable during operation. It's a direct-fit replacement designed to restore proper hold and reduce looseness or vibration. What it does:

• Secures appliance parts and assemblies in place to prevent movement during use
• Restores proper alignment of panels or components that become loose
• Functions as a hardware fastener where the original retainer bolt was used

• One retainer bolt

• Disconnect power and, if applicable, gas supply before starting any repair
• Start threads by hand to avoid cross-threading; tighten with appropriate hand tools
• Do not overtighten—secure snugly to avoid stripping threads or damaging components

The Lamp Halogen Bulb is an OEM part for GE ovens. This part provides illumination inside the oven, allowing users to easily monitor the cooking process without opening the door and losing heat.

Causes of a bad lamp halogen bulb can include regular wear and tear from extended use, exposure to high temperatures, or accidental impacts that cause the bulb to break or malfunction.

Symptoms of a bad Lamp Halogen Bulb include:

• The oven interior not lighting up when the door is opened
• Flickering or dim light
• The bulb being visibly burnt out or broken
• Difficulty seeing inside the oven during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The HALOGEN LAMP ASM is an OEM component specifically designed for GE electric wall ovens and ranges. It serves as the light source to illuminate the oven cavity, allowing users visual inspection of dishes during the cooking process.

Causes of a bad halogen lamp assembly can include bulb burnout over extended use. Handling the lamp without protective gear may also cause accidental breakage.

Symptoms of a bad halogen lamp assembly involve:

• Dim or unlit oven cavity preventing visibility of food
• Completely burned out or broken bulb housing unit
• Faulty bulb connection preventing power delivery

Replacing it with this genuine GE part restores the essential oven light functionality. Proper illumination streamlines cooking and ensures thorough temperature application.

This OEM GE halogen lamp assembly replacement is also compatible with some Hotpoint and RCA wall oven models. Reliable lighting performs as intended cycle after cycle.


This Bottom Cabinet Trim is the decorative finishing piece at the lower edge of the appliance where it meets surrounding cabinetry. It replaces a damaged or missing trim to cover gaps and restore a clean, factory look.

• Finishes the lower front edge and hides exposed gaps between the unit and cabinets
• Protects edges from crumbs, spills, and snags while improving appearance
• Restores fit and stability when the original trim is cracked, bent, loose, or missing
• Common symptoms include visible gaps, broken or sharp edges, rattling trim, or discoloration

• Disconnect power and allow the appliance to cool before servicing
• Wear cut-resistant gloves; trim edges and cabinet fronts can be sharp
• Remove fasteners/clips securing the old trim, align the new piece, and secure with existing hardware
• Refer to your model's diagram for mounting locations and orientation

This retainer bearing supports the dryer drum shaft and helps the drum turn smoothly, reducing shaft movement and wear. Replacing a worn retainer bearing can stop rubbing, grinding, or wobbling noises and improve drum alignment. What it does

• Holds and centers the drum shaft to prevent excessive axial movement
• Reduces metal-on-metal contact that can cause squealing or grinding
• Helps maintain smooth, consistent drum rotation and alignment
• Commonly replaced when you hear rubbing, scraping, or loud bearing noises

• One retainer bearing

• Disconnect power before servicing; for gas dryers also shut off gas supply
• Access requires removing panels or the cabinet to reach the drum shaft area
• Inspect adjoining parts (shaft, rollers, glides) and replace if worn to prevent repeat failure

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This heat-resistant gasket fits around the broil element where it passes through the oven liner. It helps seal the opening to reduce heat and moisture leaks and provides a secure, finished fit for the element.

• Seals the broil element pass-through at the oven liner to help contain heat, steam, and splatters
• Helps protect insulation and wiring behind the liner from spills and debris
• Cushions the mounting point to reduce metal-to-metal wear and rattles
• Common signs it's needed: brittle, cracked, or missing gasket; discoloration or residue at the pass-through; element feels loose at the mounting point

• Disconnect power at the breaker and let the oven cool completely before servicing
• Remove broil element screws and gently lower or pull the element forward to access the pass-through
• Remove the old gasket; seat the new gasket evenly without stretching or pinching; don't overtighten hardware
• Reconnect firmly and route wires away from sharp edges before reassembly

This bottom air duct cover directs cold-air flow inside the refrigerator to help maintain consistent temperatures and protect internal components. It replaces a cracked or missing duct cover to restore proper airflow routing. What it does

• Channels refrigerated air through the lower cabinet to support even cooling
• Protects evaporator/fan pathways from debris and accidental contact
• Helps reduce localized warm spots and uneven food cooling
• Prevents rattling or vibration caused by a damaged or loose duct cover

• One bottom air duct cover

• Disconnect power to the appliance before starting any repair
• Remove shelves, drawers and any trim blocking access to the duct area
• Handle plastic parts gently to avoid cracking; secure with original clips or screws

This hidden bake cover replaces the metal shield that protects and conceals the oven's hidden bake element, helping keep the element clean and directing heat for consistent cooking performance. What it does

• Shields the hidden bake element from spills and debris to reduce cleaning and potential damage.
• Helps direct heat from the hidden bake element for more even oven temperatures.
• Replaces a cracked, warped, or missing cover that can expose the element or allow food to fall onto it.
• Compatible with common symptom: visible damage or a missing cover after service or heavy use.

• Disconnect power to the oven at the breaker before starting any work.
• Allow the oven to cool completely; the element and surrounding parts can retain heat.
• Remove mounting screws or clips used by your model and lift the old cover out; handle carefully to avoid bending.
• The cover seats flat against the element support and reinstall fasteners securely.

This replacement top oven plate restores the oven's interior surface and protective covering, helping maintain proper clearance and protecting wiring and insulation from drips or direct heat. Designed to match OEM fit and form for compatible GE ranges. What it does:

• Covers the oven ceiling to protect internal components from spills and debris
• Helps maintain proper airflow and heat path by keeping the oven cavity intact
• Commonly replaced when the plate is warped, cracked, or showing heavy corrosion
• Can reduce burning odors caused by food debris contacting hot components

• Disconnect power (unplug or shut off breaker) and ensure the oven is completely cool before starting
• Use hand tools to remove mounting screws/retainers; keep fasteners for re-use unless damaged
• Handle the plate carefully—sharp edges or corrosion can cause cuts

The Meat Probe and Harness Assembly is an OEM part for GE ovens. This probe monitors the internal temperature of meat or other food items during the cooking cycle.

Causes can be regular wear and damage from repeated insertions into food over the appliance's lifespan. Liquid ingress into the control panel area could compromise electrical connections.

Symptoms of a bad probe or harness include:

• Inaccurate or unstable temperature readings displayed
• Failure of the unit to switch cooking modes at pre-set temperature thresholds
• Unreliable monitoring of food doneness

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement #8-18 screw, 0.750 inches long with a nickel finish, used to secure panels and components on compatible appliances. It restores proper fastening and helps eliminate loose or rattling parts. What it does:

• Fastens appliance panels, brackets or small components where a #8-18 x 3/4" screw is required
• Replaces missing or damaged screws that cause loose panels, rattles, or misalignment
• Provides a corrosion-resistant nickel finish for longer-lasting attachment
• Matches OEM thread and length for a secure fit

• One (1) screw as shown

• Use the correct screwdriver or bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal panels
• Replace only with the same size and thread to ensure proper fit; do not overtighten
