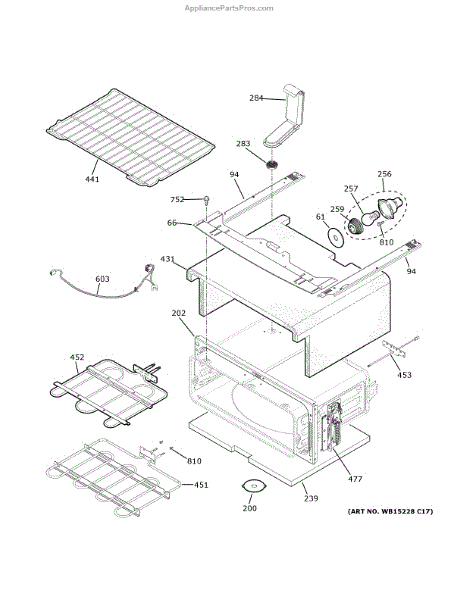

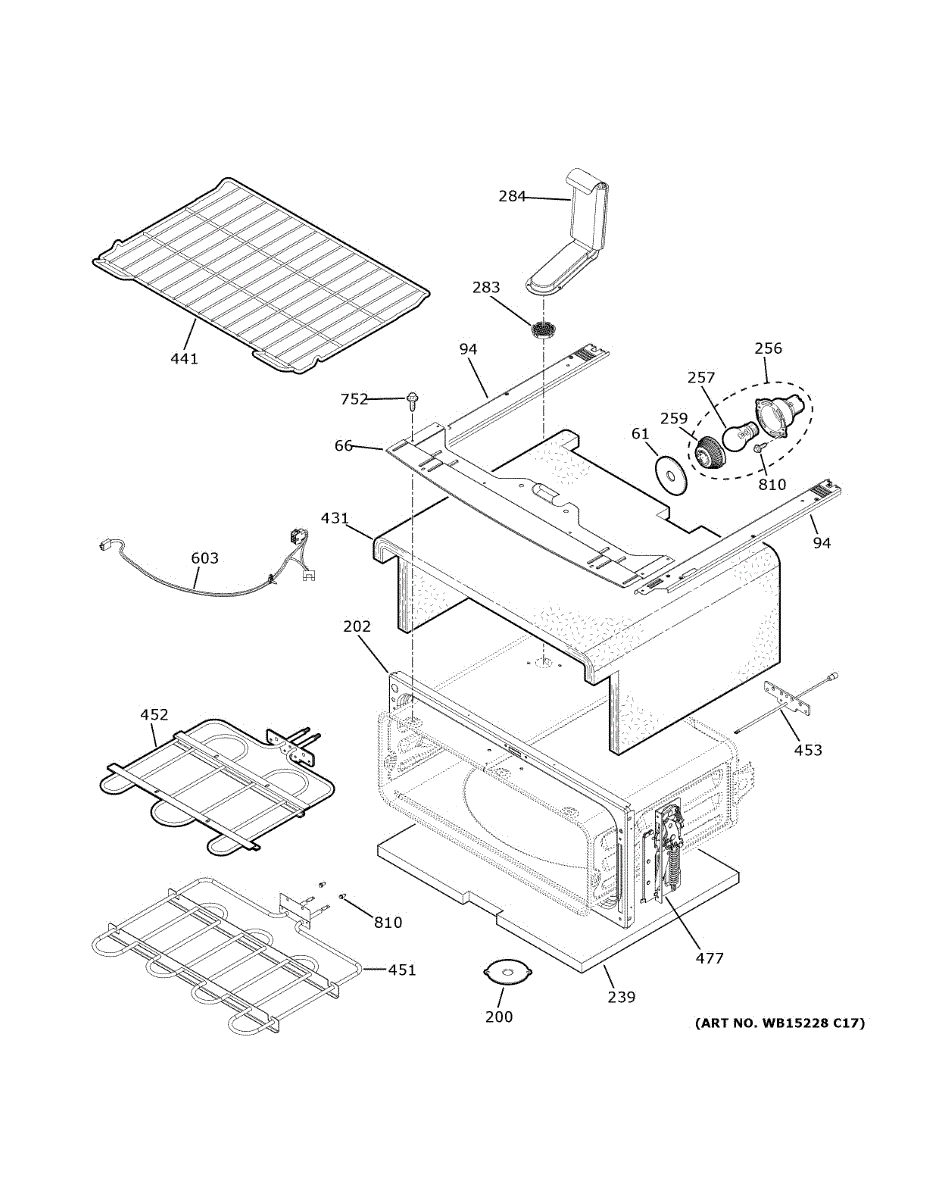

Parts for Ge JBS86SP2SS: Upper Oven Parts

This smoke eliminator is a charcoal-based filter designed for recirculating range and microwave venting. It helps reduce cooking odors and airborne grease particles when the appliance is used in non-vented (recirculating) mode. What it does:

• Adsorbs and reduces cooking odors and smoke in recirculating vent systems
• Helps capture particles that pass through the venting fan to keep kitchen air fresher
• Commonly replaced when strong cooking smells persist or airflow seems less effective
• Fits into the appliance's recirculating filter slot to restore odor control

• One (1) smoke eliminator charcoal filter

• Turn power to the appliance off before accessing the vent/filter area
• Remove the vent or grille per your appliance manual, replace the old filter with the new one, and reassemble
• No special tools usually required; refer to your model's instructions for exact access steps
• Replace periodically or when odor reduction becomes noticeably worse

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

The Oven Rack is an OEM replacement part for GE ranges. It provides an elevated surface for baking, roasting or broiling food inside the oven cavity.

Causes of a bad rack can include warping or discoloration from exposure to high heat over time. Cracks or breakage may also occur due to mishandling or loading the rack with excess weight.

Symptoms of a bad oven rack include:

• Food not baking or cooking evenly while on the rack
• Difficulty sliding the rack in and out of the oven
• Cracks, bends or broken welds in the rack frame

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bake element is the lower oven heating element that produces the heat needed for bake cycles, restoring oven temperature and consistent cooking performance when the original element is damaged or not heating. What it does:

• Heats the oven cavity during bake cycles to maintain set temperatures for baking and roasting.
• Restores heating when a burned, broken or visibly damaged element causes little or no heat.
• Helps correct uneven cooking or longer-than-normal preheat times when caused by a faulty element.
• Direct-fit replacement designed to mount in the oven's lower cavity and connect to existing wiring.

• Disconnect power to the appliance at the circuit breaker before starting any work.
• Allow the oven to cool completely and remove oven racks before accessing the element.
• Replace the element mounting screws and wire terminals exactly as removed; ensure tight, secure connections.

This broil shield is the oven's rear cavity panel that protects the oven back and nearby components from direct broiler heat. It helps channel heat for safer broiling and prevents heat damage to internal parts. What it does:

• Deflects direct broiler heat away from the oven back wall and components
• Helps maintain proper broiling performance by directing heat toward food
• Reduces risk of heat-related damage, discoloration, or premature wear on internal oven parts
• Limits grease and debris contact with sensitive rear components

• Disconnect power (and gas supply on gas ovens) before servicing the oven
• Remove oven racks and, if required, the broil element to access the shield
• Handle edges carefully—metal parts can be sharp
• Keep hardware removed during disassembly; screw locations for reassembly

This right-side hinge assembly secures and guides the appliance door for consistent opening and closing, restoring proper alignment and sealing. It's a direct-fit replacement when the door feels loose, binds, or won't stay aligned. What it does:

• Supports the door on the right side and maintains correct pivoting motion
• Restores proper door alignment to improve closing and sealing
• Helps eliminate sagging, binding, or uneven gaps during operation
• Works with existing hinge pins and mounts where applicable

• Replace both hinges if the left-side hinge shows similar wear; balance is recommended for long-term alignment
• Disconnect power and remove any panels or door components per manufacturer instructions before starting
• Use proper tools and keep fasteners organized; tighten to OEM torque if specified
