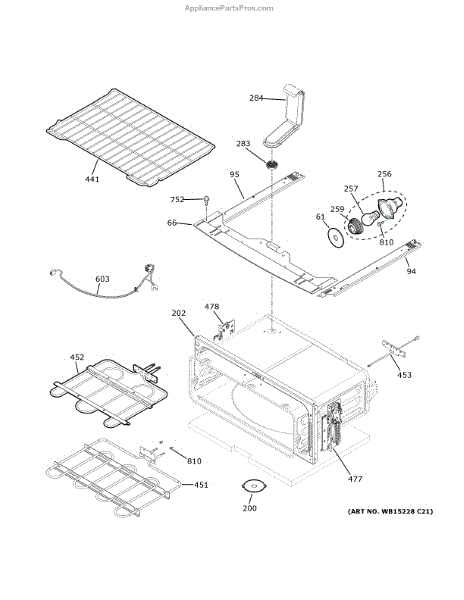

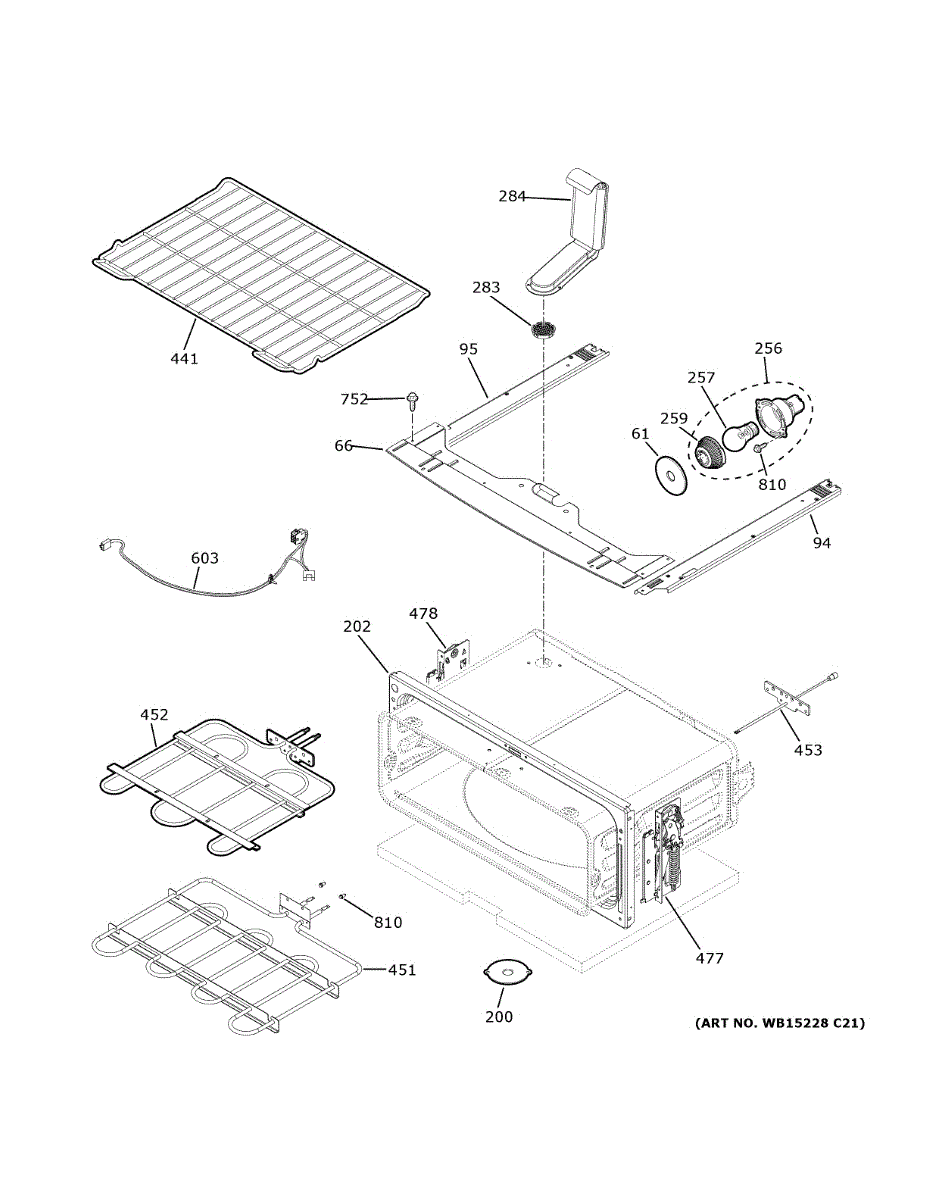

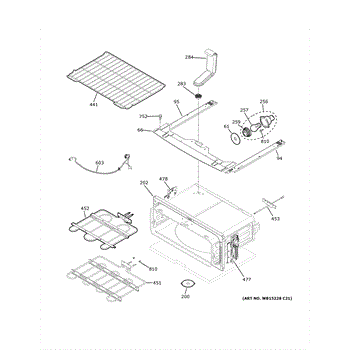

Parts for Ge JBS86SP3SS: Upper Oven Parts

Rangetop enclosure for electric ranges. Installs on the main cooking surface to contain and support the heating elements. Replace if cracked or damaged.

This smoke eliminator is a charcoal-based filter designed for recirculating range and microwave venting. It helps reduce cooking odors and airborne grease particles when the appliance is used in non-vented (recirculating) mode. What it does:

• Adsorbs and reduces cooking odors and smoke in recirculating vent systems
• Helps capture particles that pass through the venting fan to keep kitchen air fresher
• Commonly replaced when strong cooking smells persist or airflow seems less effective
• Fits into the appliance's recirculating filter slot to restore odor control

• One (1) smoke eliminator charcoal filter

• Turn power to the appliance off before accessing the vent/filter area
• Remove the vent or grille per your appliance manual, replace the old filter with the new one, and reassemble
• No special tools usually required; refer to your model's instructions for exact access steps
• Replace periodically or when odor reduction becomes noticeably worse

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

Replacement oven rack for electric ranges. Provides elevated surface for baking, roasting, and broiling. Replace if warped, discolored, or cracked.

Oven not heating or baking unevenly? This lower bake element restores consistent oven temperature for proper cooking. Moderately difficult DIY repair.

This broil shield is the oven's rear cavity panel that protects the oven back and nearby components from direct broiler heat. It helps channel heat for safer broiling and prevents heat damage to internal parts. What it does:

• Deflects direct broiler heat away from the oven back wall and components
• Helps maintain proper broiling performance by directing heat toward food
• Reduces risk of heat-related damage, discoloration, or premature wear on internal oven parts
• Limits grease and debris contact with sensitive rear components

• Disconnect power (and gas supply on gas ovens) before servicing the oven
• Remove oven racks and, if required, the broil element to access the shield
• Handle edges carefully—metal parts can be sharp
• Keep hardware removed during disassembly; screw locations for reassembly

This right-side hinge assembly secures and guides the appliance door for consistent opening and closing, restoring proper alignment and sealing. It's a direct-fit replacement when the door feels loose, binds, or won't stay aligned. What it does:

• Supports the door on the right side and maintains correct pivoting motion
• Restores proper door alignment to improve closing and sealing
• Helps eliminate sagging, binding, or uneven gaps during operation
• Works with existing hinge pins and mounts where applicable

• Replace both hinges if the left-side hinge shows similar wear; balance is recommended for long-term alignment
• Disconnect power and remove any panels or door components per manufacturer instructions before starting
• Use proper tools and keep fasteners organized; tighten to OEM torque if specified

Replacement mounting screw for cooktops and ranges. Secures cooktop components to the frame. Replace if screw is stripped, missing, or damaged.
