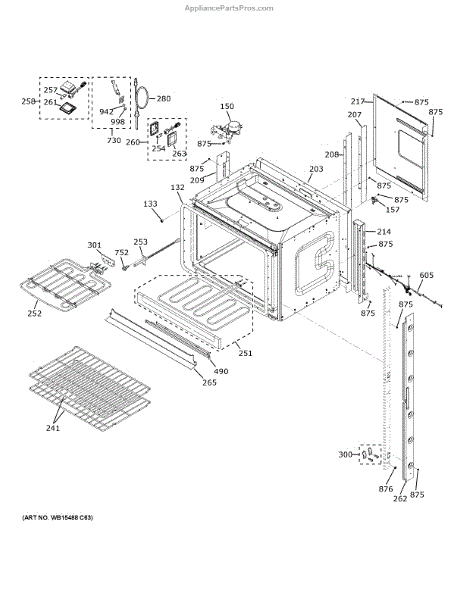

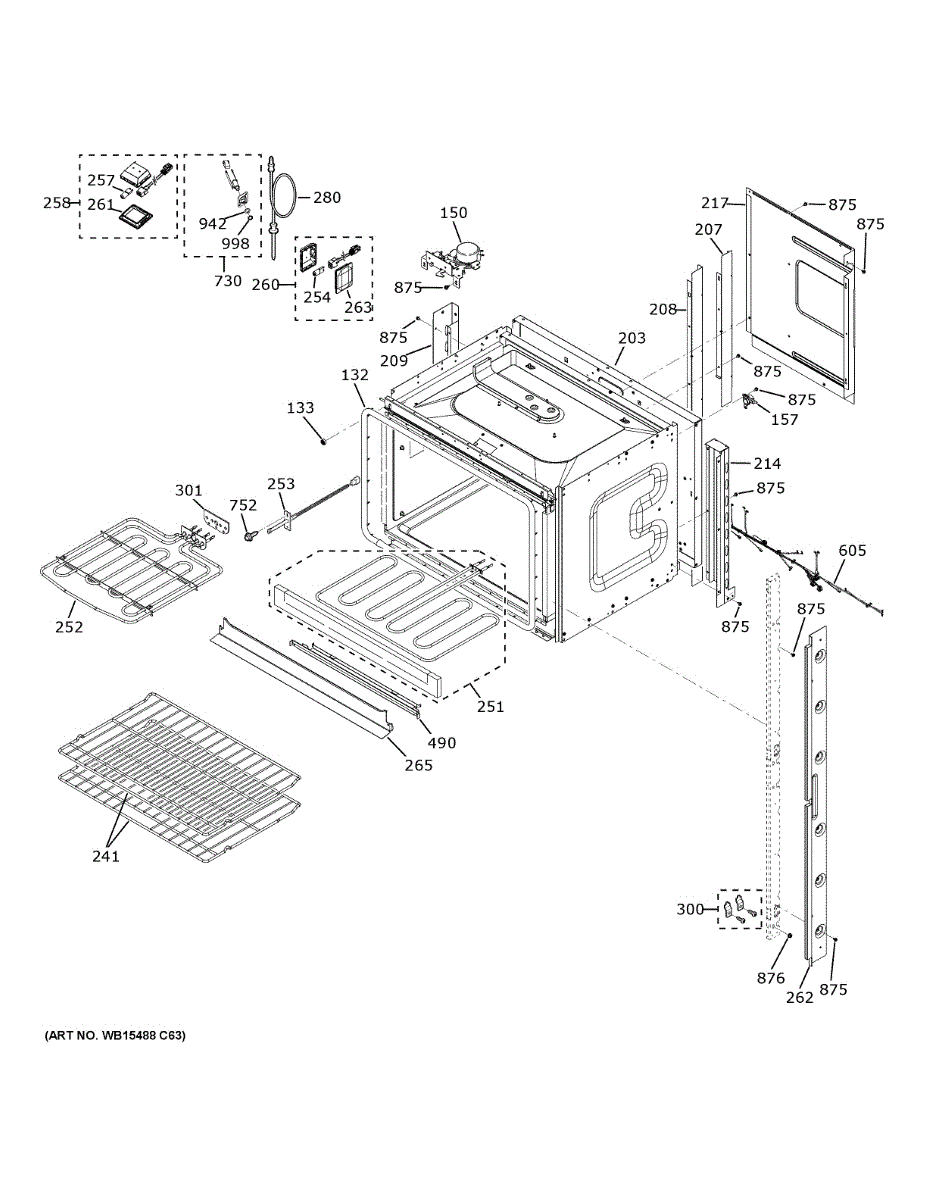

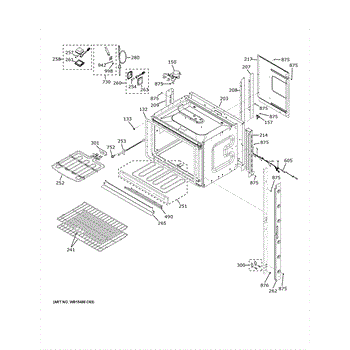

Parts for Ge JKD5000DV1BB: Upper Oven Parts

Seals oven door edges to prevent heat loss and maintain cooking temperature. Replace if worn, melted, compressed, or causing uneven heating. Confirm fit with your model number before ordering.

Fix an oven door that won't open or close properly. This latch assembly includes the oven light switch and secures your oven door during operation.

Fixes oven not heating after self-clean cycle. This thermal safety switch cuts power when temperatures get too high. Simple diagnosis with continuity test.

This air center divider is the interior air baffle that directs airflow inside the refrigerator compartment for more even temperature control and circulation. It replaces a cracked, missing, or damaged center air divider to restore normal airflow paths. What it does:

• Guides cooled air through the refrigerator compartment to help maintain even temperatures
• Prevents air leaks and improper circulation caused by broken or warped dividers
• Helps reduce warm spots and uneven cooling inside the fresh-food section
• Restores proper airflow after impact damage or plastic fatigue

• One air center divider

• Disconnect power to the appliance before starting any work
• Remove shelves and related trim to access the center air baffle; retain all fasteners
• Handle plastic tabs/clips gently to avoid breakage during removal and installation

Air divider panel for double wall ovens. Separates oven cavities and directs airflow. Replace if cracked, warped, or missing to restore proper oven operation.

Chrome-coated oven rack for wall ovens and electric ranges. Replace worn, damaged, or missing racks to restore cooking capacity and oven functionality.

If your oven won't heat during bake cycles or bakes unevenly, this hidden bake element kit restores proper temperature. Mounts under the oven floor.

This broil element is the replacement heating element for the oven's upper/broil function, restoring direct top-heat for broiling and finishing dishes. Fits common GE ovens that use this OEM-style element. What it does:

• Heats the oven's upper ca

Fix F2 or F34 error codes and inaccurate oven temperatures with this temperature sensor assembly. Moderate DIY repair, 30-60 minutes install time.

Replace your oven's halogen light bulb to restore clear interior visibility while cooking. G9 two-pin base design ensures easy installation.

Halogen bulb illuminates your oven cavity so you can monitor cooking without opening the door. Replace when dim or burnt out. Verify fit with your model.

Halogen light assembly illuminates your oven cavity during cooking. Replace if light won't turn on, flickers, or glass is cracked. Confirm fit by model.

Halogen lamp assembly illuminates your oven cavity for visibility while cooking. Replace when light flickers or fails to turn on. Confirm fit with your model.

Replace your oven light lens cover to restore interior lighting. Install when cracked, discolored, or missing. Confirm fit with your model number.

This clear glass oven light lens protects the interior light bulb and helps keep heat and debris away from the lamp, restoring safe, visible illumination inside the oven. What it does:

• Covers and shields the oven light bulb from spills, grease, and heat
• Restores clear interior lighting when the original lens is cracked, shattered, missing, or discolored
• Helps maintain proper light diffusion for even oven visibility
• Prevents direct contact with the bulb, reducing the risk of breakage

• Allow the oven to cool completely and disconnect power before servicing
• Handle the glass carefully; wear gloves to reduce the risk of cuts
• Remove any mounting screws or retainers, replace lens, and secure per the appliance's service instructions

Lower vent trim for wall ovens. Installs along the bottom edge to cover the vent opening. Replace if cracked, discolored, warped, or missing.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor

Secures and supports oven door pivot for proper alignment and smooth opening/closing. Replace if door sags, won't close flush, or hinge feels loose. Confirm fit with your model number.

Heat escaping around broil element? This pass-through gasket seals the opening where the element enters the oven liner, containing heat and steam. Quick DIY fix.

Protective cover that conceals the bake element in the oven cavity bottom. Replace if cracked, warped, discolored, or missing for a clean appearance.

Oven not reading meat temperature accurately? This meat probe and harness assembly monitors internal food temperature during cooking cycles.

Mounting screw secures panels, brackets, and trim in ranges and wall ovens. Replace when stripped, missing, or damaged to restore proper fastening.

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.
