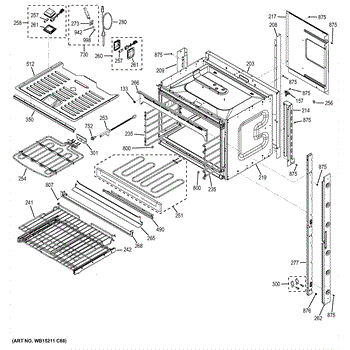

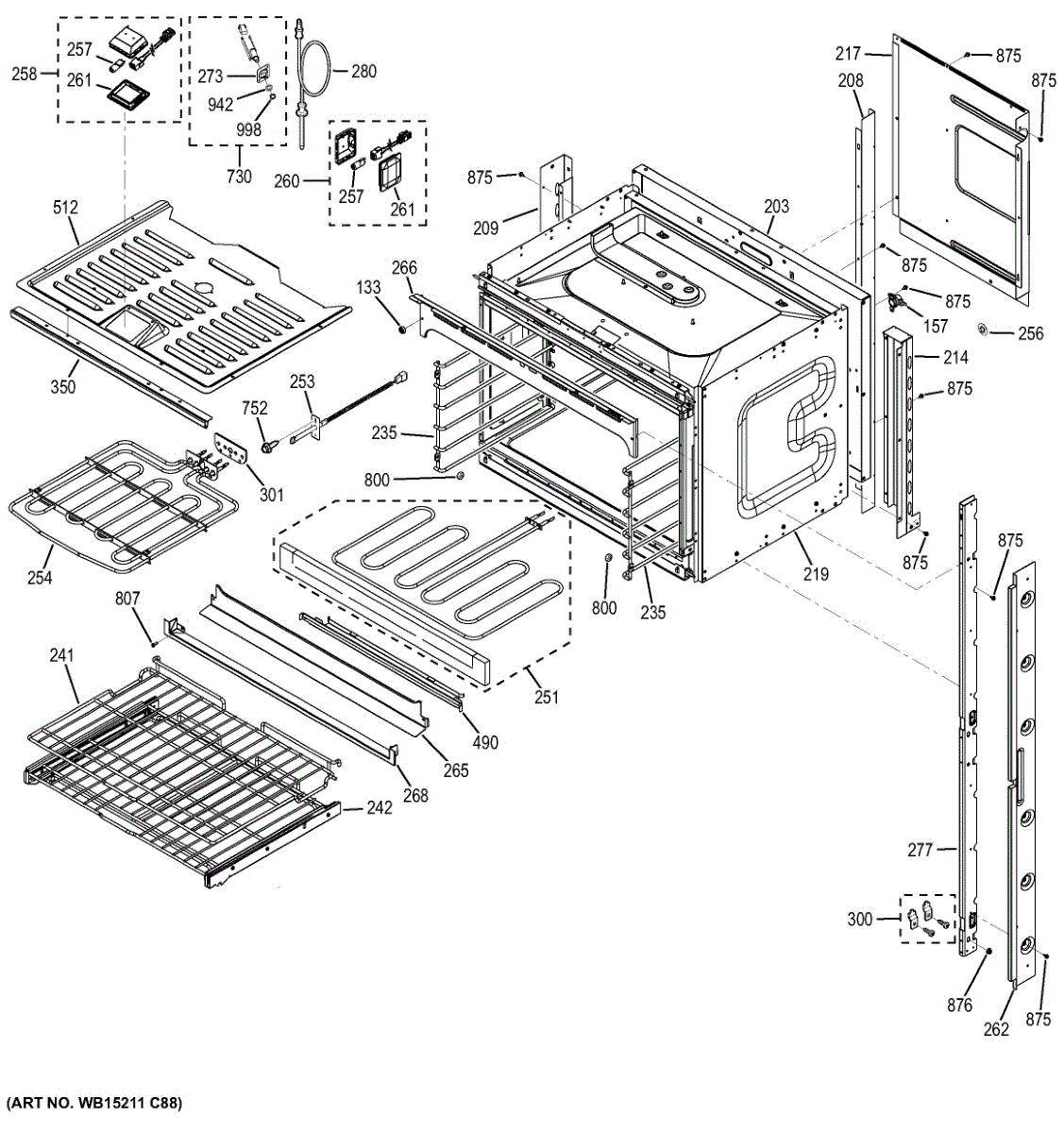

Parts for Ge PT7550DF3BB: Upper Oven Parts

This high limit switch is the temperature safety cut-out for your appliance. It monitors heat and opens the circuit if temperatures rise too high—helping protect components and prevent shutdowns caused by overheating.

• Monitors temperature at a critical location and interrupts power if limits are exceeded
• Helps protect internal components from heat damage
• Can help address: unit won't power on, shuts off during use, or runs without heating
• Replace if it remains open (no continuity) when cool or shows visible damage

• Disconnect power at the breaker before servicing; never work on a live appliance
• If servicing a microwave, be aware the high-voltage capacitor can retain a dangerous charge
• Note wire positions and transfer leads one at a time; mount the switch securely in the original location
• Do not bypass a safety switch; also correct any airflow/ventilation issues that may have caused overheating

Replace a worn or broken right-side oven rack guide to restore smooth rack movement and stable support when sliding cookware in and out of the oven. Helps keep the rack aligned and prevents binding or falling. What it does:

• Supports the right side of the oven rack so it slides in and out smoothly
• Prevents the rack from tipping or falling when loaded
• Fixes symptoms like a sagging or sticking rack and uneven rack alignment
• Durable replacement for plastic or metal guides worn from normal use

• One right-side oven rack guide

• Disconnect power to the appliance (and shut off gas if applicable) before starting
• Remove oven racks and any insulation or trim that blocks access to the guide
• Typically secures with clips or screws; retain hardware and reinstall securely

A left-side oven rack guide that supports and aligns the oven rack so it slides smoothly and stays in position. Replacing a worn or broken guide restores stable rack movement and helps prevent the rack from catching or falling. What it does:

• Supports the oven rack on the left side and keeps the rack seated in the track.
• Guides the rack as it slides in and out to reduce binding and uneven movement.
• Common symptom: rack sags, tilts, or falls off the track when pulled.
• Common symptom: rack binds, scrapes, or does not slide smoothly.

• One left oven rack guide.

• Disconnect power to the oven and allow it to cool before starting any service.
• Remove oven racks and any obstructions before replacing the guide.
• Replacement is typically a direct swap; keep hardware and fasteners with the unit if they are reused.

The Flat Rack is an OEM part for GE electric wall ovens. It provides an essential surface for baking many types of foods positioned flat during the cooking cycle.

Causes of a bad flat rack can include rust or dulling from extended high-heat baking and repeated exposure to cooking oils and food particles over time. Damage from impact if accidentally dropped while hot or cooled racks is also risk.

Symptoms of a bad flat rack include:

• Warping or bending out of shape that compromises its stability
• Holes or cracks that could potentially drip into foods below
• Rack no longer fitting properly or securely in the oven cavity

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven rack slide assembly lets the rack glide in and out smoothly for easier loading and unloading. Replace a bent, worn, or seized slide to restore proper rack movement and stable support at the oven's rack positions.

• Provides guided, smooth extension and retraction of a slide-out oven rack
• Helps keep the rack level and secure as it moves on the side supports
• Replace if the rack binds, sticks, or jumps off the supports
• Common signs include rough sliding, grinding noises, or visible damage to rails/rollers

• Disconnect power and allow the oven to cool completely before servicing
• Remove the existing slide/rack per your user manual, noting orientation and engagement points
• Seat the new assembly fully on the rack supports and ensure proper engagement
• Test rack travel empty before returning the oven to service

The Hidden Bake Element Kit is an OEM component specifically designed for GE wall ovens. This kit contains the bake heating element, mounting bracket, and wiring harness necessary to complete the installation.

Causes of a bad bake element can include deteriorating insulation leading to shorts or failures over time, or damage from baking spills or impact.

Symptoms of a bad bake element include:

• Inconsistent or uneven baking
• Reduced heating power
• The oven not heating up to the set temperature
• Error codes related to bake element operation

This OEM GE replacement kit is also compatible with Hotpoint, RCA, and select Kenmore models.

The Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or extended high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to maintain the set oven temperature
• Fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This broil element delivers high, direct heat from the top of the oven for broiling and browning. It restores the oven's ability to sear, brown, and finish foods for crisp tops and caramelized surfaces. What it does:

• Heats the oven's upper cavity for broiling and finishing dishes
• Provides concentrated top-down heat for browning and searing
• Replaces a failed or visibly damaged element that won't glow or heat
• Helps eliminate uneven broiling or lack of broil function

• Disconnect power to the appliance before starting any work
• Allow the oven to cool completely and wear gloves to protect against sharp edges
• Remove mounting screws and disconnect wires from element terminals; reconnect wires to the new element in the same orientation
• Test broil function after installation to ensure proper operation

This retainer bolt fastens and secures internal appliance components to keep panels and assemblies stable during operation. It's a direct-fit replacement designed to restore proper hold and reduce looseness or vibration. What it does:

• Secures appliance parts and assemblies in place to prevent movement during use
• Restores proper alignment of panels or components that become loose
• Functions as a hardware fastener where the original retainer bolt was used

• One retainer bolt

• Disconnect power and, if applicable, gas supply before starting any repair
• Start threads by hand to avoid cross-threading; tighten with appropriate hand tools
• Do not overtighten—secure snugly to avoid stripping threads or damaging components

The Lamp Halogen Bulb is an OEM part for GE ovens. This part provides illumination inside the oven, allowing users to easily monitor the cooking process without opening the door and losing heat.

Causes of a bad lamp halogen bulb can include regular wear and tear from extended use, exposure to high temperatures, or accidental impacts that cause the bulb to break or malfunction.

Symptoms of a bad Lamp Halogen Bulb include:

• The oven interior not lighting up when the door is opened
• Flickering or dim light
• The bulb being visibly burnt out or broken
• Difficulty seeing inside the oven during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The HALOGEN LAMP ASM is an OEM component specifically designed for GE electric wall ovens and ranges. It serves as the light source to illuminate the oven cavity, allowing users visual inspection of dishes during the cooking process.

Causes of a bad halogen lamp assembly can include bulb burnout over extended use. Handling the lamp without protective gear may also cause accidental breakage.

Symptoms of a bad halogen lamp assembly involve:

• Dim or unlit oven cavity preventing visibility of food
• Completely burned out or broken bulb housing unit
• Faulty bulb connection preventing power delivery

Replacing it with this genuine GE part restores the essential oven light functionality. Proper illumination streamlines cooking and ensures thorough temperature application.

This OEM GE halogen lamp assembly replacement is also compatible with some Hotpoint and RCA wall oven models. Reliable lighting performs as intended cycle after cycle.


The Lens Oven Light is an OEM part for GE ovens. It lights the oven cavity, allowing homeowners to view food while cooking or cleaning without opening the oven door. The lens is designed to project an even spread of light and withstand high temperatures inside the oven.

Causes of a bad lens can include cracks or breaks due to impact or excessive heat exposure over time. The polymer material used in the lens can degrade with regular use of the oven at high temperatures.

Symptoms of a bad lens include:

• Dim or no light inside the oven cavity
• Uneven or splotchy light distribution
• Cracks or breaks in the lens cover

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge bracket assembly secures and supports the refrigerator door pivot to restore proper door alignment and reliable opening/closing. It replaces worn or damaged hinge hardware to help stop door sag and improve sealing. What it does

• Replaces the door hinge bracket that anchors the hinge to the cabinet or door
• Restores correct door alignment and smooth pivoting motion
• Helps eliminate sagging or uneven door gaps that affect the seal
• Works with existing hinge pins and mounting points to secure the door

• One hinge bracket assembly kit

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing/installing the hinge to prevent dropping or damage
• Use appropriate hand tools; tighten fasteners to secure bracket without over-torquing

This hidden bake cover replaces the metal shield that protects and conceals the oven's hidden bake element, helping keep the element clean and directing heat for consistent cooking performance. What it does

• Shields the hidden bake element from spills and debris to reduce cleaning and potential damage.
• Helps direct heat from the hidden bake element for more even oven temperatures.
• Replaces a cracked, warped, or missing cover that can expose the element or allow food to fall onto it.
• Compatible with common symptom: visible damage or a missing cover after service or heavy use.

• Disconnect power to the oven at the breaker before starting any work.
• Allow the oven to cool completely; the element and surrounding parts can retain heat.
• Remove mounting screws or clips used by your model and lift the old cover out; handle carefully to avoid bending.
• The cover seats flat against the element support and reinstall fasteners securely.

This replacement top oven plate restores the oven's interior surface and protective covering, helping maintain proper clearance and protecting wiring and insulation from drips or direct heat. Designed to match OEM fit and form for compatible GE ranges. What it does:

• Covers the oven ceiling to protect internal components from spills and debris
• Helps maintain proper airflow and heat path by keeping the oven cavity intact
• Commonly replaced when the plate is warped, cracked, or showing heavy corrosion
• Can reduce burning odors caused by food debris contacting hot components

• Disconnect power (unplug or shut off breaker) and ensure the oven is completely cool before starting
• Use hand tools to remove mounting screws/retainers; keep fasteners for re-use unless damaged
• Handle the plate carefully—sharp edges or corrosion can cause cuts

The Meat Probe and Harness Assembly is an OEM part for GE ovens. This probe monitors the internal temperature of meat or other food items during the cooking cycle.

Causes can be regular wear and damage from repeated insertions into food over the appliance's lifespan. Liquid ingress into the control panel area could compromise electrical connections.

Symptoms of a bad probe or harness include:

• Inaccurate or unstable temperature readings displayed
• Failure of the unit to switch cooking modes at pre-set temperature thresholds
• Unreliable monitoring of food doneness

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

A replacement black trim screw that secures exterior trim and small panels on appliances, restoring proper fit and finish so pieces stay aligned and rattle-free. What it does

• Fastens appliance trim, bezels, and small decorative panels
• Keeps trim aligned to prevent gaps, rattling, and vibration noise
• Replaces missing or stripped trim fasteners to restore secure attachment
• Works wherever the OEM specifies a black trim screw of this style

• One black trim screw

• Disconnect power or unplug the appliance before starting any work
• Use the correct screwdriver size to avoid stripping the screw head
• Hand-start the screw, then snug—do not overtighten to prevent cracking the trim
• If access is tight, a magnetic screwdriver or bit holder can help

Black. 8-18 AB HXW 3/8
