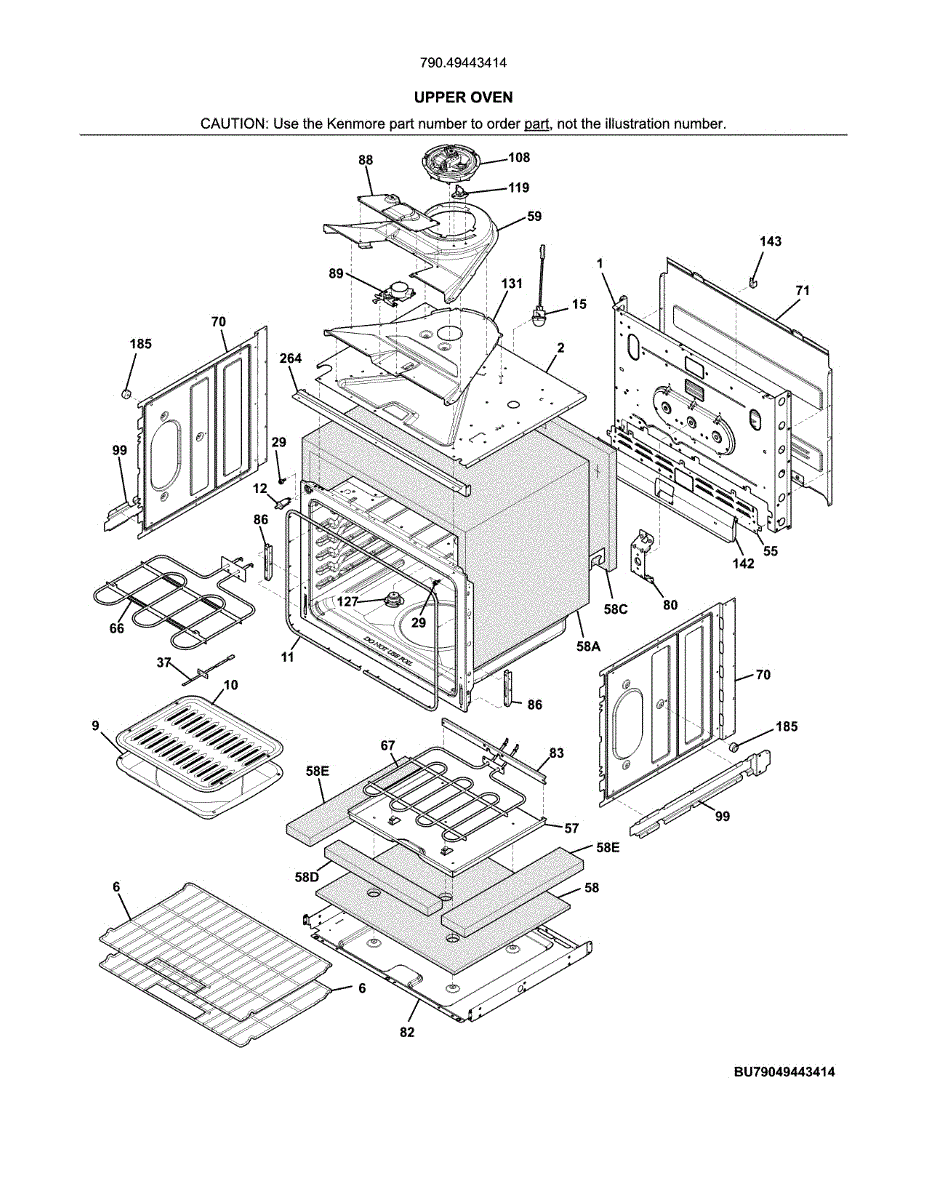

Parts for Kenmore 790.49443414 (79049443414, 790 49443414): Upper Oven Parts

Oven rack for electric and gas ranges. Replaces damaged, warped, or missing racks. Slides into side rails to support cookware during baking and roasting.

Broiler pan for electric and gas ranges. Installs in oven cavity for broiling. Replace if cracked, warped, rusted, or heavily stained beyond cleaning.

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

This is a flexible gray gasket that lines the perimeter of the oven door to create an airtight seal when the door is closed. It prevents heat from escaping the oven cavity, helping maintain consistent cooking temperatures. Replace this seal if you feel excessive heat radiating from around the oven door, notice uneven cooking, or see visible wear, cracks, or gaps in the existing gasket.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

Heat shield for ranges and wall ovens. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to prevent overheating.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix loud rattling or grinding noise from your oven fan. This convection fan motor restores quiet operation and even heat distribution. DIY repair.

This Tube Assembly routes water inside the refrigerator to the dispenser and ice-maker, restoring proper water flow and preventing leaks when the original line is damaged. Reliable replacement for delivery and fill connections. What it does:

• Transports water from the inlet to the ice maker/dispenser assembly
• Replaces cracked, kinked, or leaking tubing that causes puddles or low water flow
• Helps restore normal ice production and dispenser operation when the tube is the fault
• Matches OEM routing and connector types for correct fit and seal

• One tube assembly as shown

• Disconnect power and shut off the water supply before starting
• Remove ice maker or access panel as needed to reach routing; follow OEM service instructions
• Inspect fittings and replace any damaged clamps or seals; avoid kinking the new tube
• After installation, turn on water, check for leaks, and run dispenser/ice cycles to confirm proper flow

Reinforces and supports oven door glass panels. Replace if original stiffener is bent, cracked, or missing to properly secure glass in the door frame.

Mounting screw for electric and gas ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Illuminates your oven interior for visibility while cooking and cleaning. Replace when burned out to restore lighting. Verify fit with your model number.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
