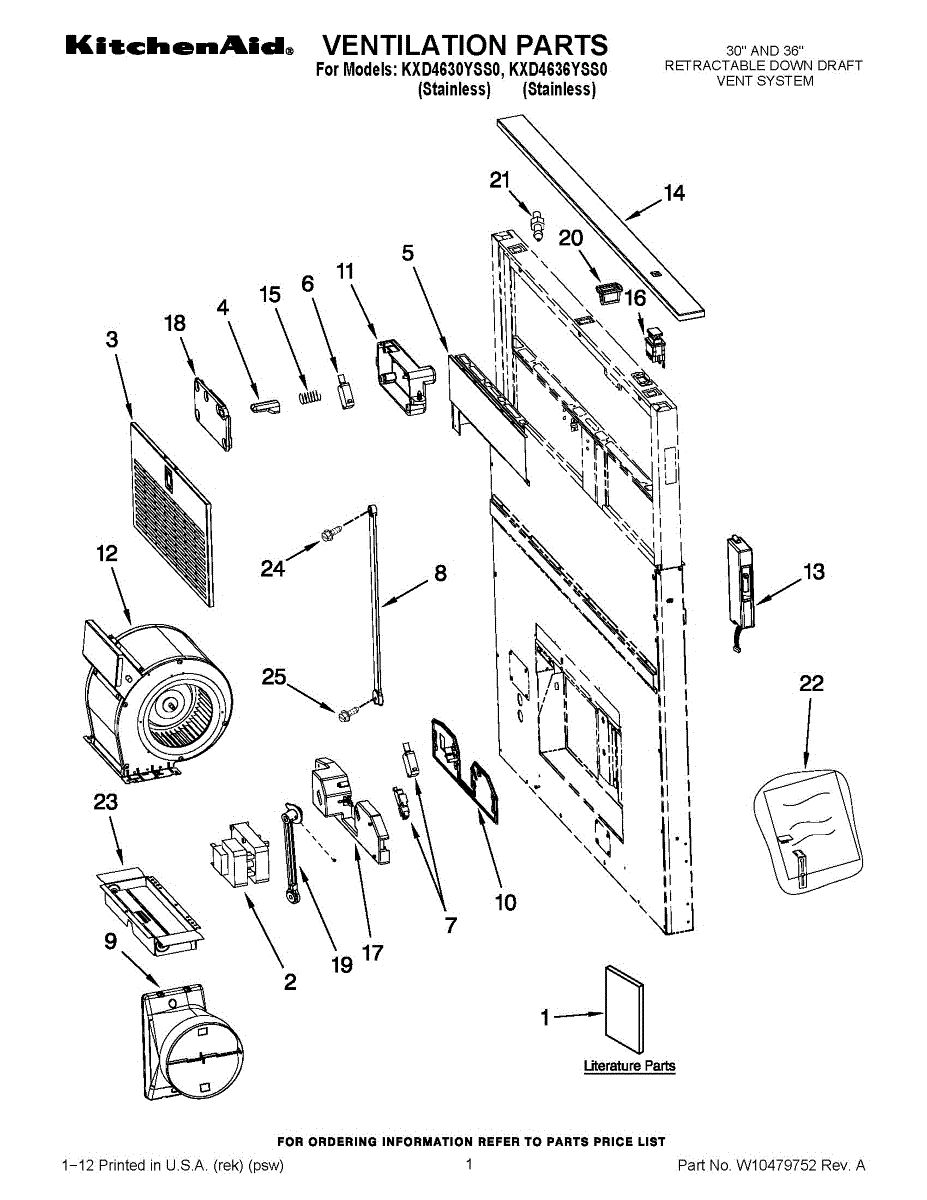

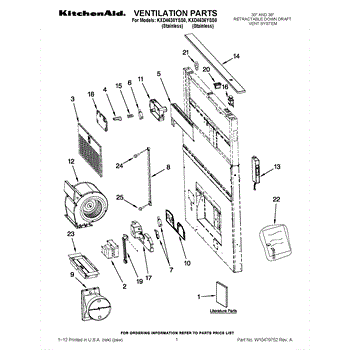

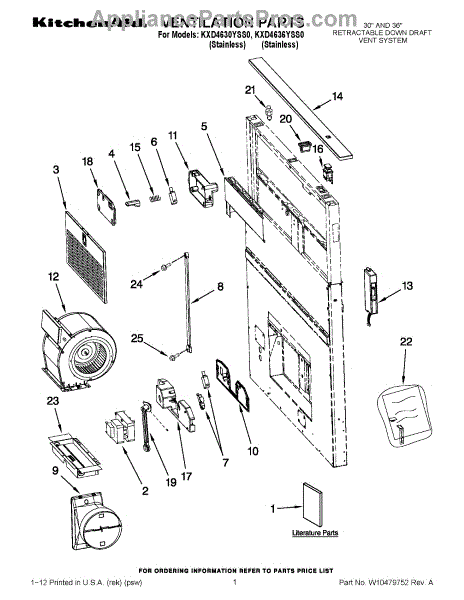

Parts for Kitchenaid KXD4636YSS0: 01 - Ventilation Parts

The Filter for Whirlpool Range Hoods is an OEM component specifically designed for select Whirlpool kitchen range hoods. This filter plays a crucial role in removing smoke, particles, and grease from the air circulated through the ventilation system. It works to reduce odors and keep the kitchen environment fresh.

Causes of a bad filter can include excessive buildup of debris that clogs the filter mesh over time, damage that compromises its filtering ability, or being used past its recommended replacement cycle.

Symptoms of a bad filter include:

• Reduced airflow and ventilation
• Strong cooking smells lingering in the kitchen
• Grease or other residue visible on the interior surfaces of the range hood

This OEM Whirlpool replacement filter is specially shaped to fit precisely within the range hood system. It is compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

This replacement grease filter traps cooking grease and airborne particles as your microwave's vent runs. Replacing a clogged or damaged filter helps maintain airflow, protect the blower and ductwork, and keep the area under the unit cleaner. What it does:

• Traps grease and particulates from cooktop fumes during venting
• Helps maintain proper airflow through the vent system
• Protects the fan/motor and interior ducting from buildup
• Common symptoms: weak venting, visible grease buildup, lingering smoke, or a torn/warped filter

• 1 grease filter

• Disconnect power to the appliance before service
• Access the filter from the underside; release the retaining tab or screws (varies by model)
• Slide out the old filter and seat the new one fully and securely
• Do not operate the vent/microwave without a filter installed

This front cover replaces the damaged or worn outer front panel on compatible dryers, restoring the appliance's appearance and protecting internal components. It provides a clean mounting surface for the door and controls. What it does

• Shields internal parts from lint, dust, and impact damage to help maintain dryer performance.
• Restores a secure mounting surface for the door and related hardware so the door seals and closes properly.
• Stops rattling or vibration caused by cracked or loose front panels.
• Improves the dryer's appearance if the original cover is dented, cracked, or rusted.

• High-level replacement: remove the door, disconnect power, and unfasten screws to swap the front cover; reassemble in reverse order.
• Always disconnect the appliance from power (and gas supply for gas dryers) before beginning service.
• Keep track of fasteners and any clips removed—some models reuse the same hardware.
• If rust or corrosion is present on mounting points, inspect and address before installing the new cover.

This switch cover protects and secures the appliance's switch assembly, keeping the switch aligned and shielded from debris so the switch can operate reliably. It's a simple replacement that restores the original enclosure. What it does:

• Covers and protects the switch assembly from dust, moisture, and impact
• Keeps the switch properly seated and aligned for reliable actuation
• Prevents foreign objects from interfering with switch operation
• Can resolve symptoms like intermittent or failed switch actuation and related start/door/lid detection issues

• Disconnect power before starting any repair to avoid shock or injury
• Access may require removing the control panel, top lid, or inner trim depending on model
• Replace the cover and secure with the original fasteners; no wiring changes required
• If the original switch is damaged, replace the switch assembly as recommended

This arm motor powers the dishwasher spray arm, restoring rotation needed for even cleaning and proper water circulation. Replace a failed motor to stop arm stalling or noisy operation and recover normal wash performance. What it does:

• Spins the spray arm so water sprays across dishes for effective cleaning.
• Works with the wash/circulation assembly to maintain proper water flow.
• Common symptoms: spray arm not rotating, uneven cleaning, motor humming or noisy during the wash cycle.
• Replaces worn or failed arm motor that causes intermittent or no rotation.

• Disconnect power to the appliance before beginning any work.
• Handle the motor and mounting hardware carefully; wear gloves and eye protection.
• Verify alignment of the motor coupling and spray arm during installation; ensure fasteners are tightened to spec.
• After installation, run a short cycle to check for leaks.

This cover switch protects and secures the appliance's access-panel switch, keeping the switch assembly in place and helping maintain normal control operation. It replaces a worn or damaged switch cover to restore safe, consistent function. What it does:

• Holds the access-panel or control switch in the correct position so the switch can operate reliably
• Helps prevent dirt, debris, and accidental contact with the switch mechanism
• Commonly replaced when covers are cracked, broken, or no longer secure

• Disconnect power to the appliance before starting any repair
• Remove the access panel or control bezel to reach the switch cover; keep track of fasteners
• Inspect surrounding components for damage and replace if needed for a secure fit

This switch cover protects and secures the appliance's switch assembly, keeping the switch aligned and shielded from debris so the switch can operate reliably. It's a simple replacement that restores the original enclosure. What it does:

• Covers and protects the switch assembly from dust, moisture, and impact
• Keeps the switch properly seated and aligned for reliable actuation
• Prevents foreign objects from interfering with switch operation
• Can resolve symptoms like intermittent or failed switch actuation and related start/door/lid detection issues

• Disconnect power before starting any repair to avoid shock or injury
• Access may require removing the control panel, top lid, or inner trim depending on model
• Replace the cover and secure with the original fasteners; no wiring changes required
• If the original switch is damaged, replace the switch assembly as recommended

The Blower-Fan is an OEM component compatible with Whirlpool range hoods. Located inside the venting system, this multi-blade centrifugal fan powerfully evacuates cooking fumes, smoke, and odors from the kitchen. It pulls contaminated air through filters and vents it outside through ductwork.

Causes of a bad blower-fan can include accumulated grease buildup on fan blades that causes vibration and imbalance over time. Plastic housing cracks or breaks could also reduce air movement.

Symptoms of a faulty blower-fan include:

• Inadequate ventilation of cooking fumes and smells
• Greasy residue left behind on cookware and surfaces
• Reduced exhaust capability requiring longer range hood use
• Abnormal noises emitting from the venting system

This Whirlpool Blower-Fan is compatible in some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper vent hoods as well.

This electronic control board replaces the appliance's main control module to restore reliable operation and responsive controls. It manages cycle selection, timing, and electronic signals so the appliance runs as commanded from the console. What it does:

• Controls user inputs, cycle sequencing, and timing signals for the appliance's electronic systems
• Drives the display and button/knob responses so selections register correctly
• Sends start/stop and motor/pump commands to other components
• Commonly replaced when the display is blank, controls are unresponsive, cycles are incorrect, or the appliance won't start

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Handle the board by the edges and avoid contact with components to prevent ESD damage
• Access typically requires removing the console or control panel; keep fasteners and wire locations noted for reassembly

This decorative trim restores the look around your appliance's control area and hides rough edges for a finished appearance. It replaces a damaged or worn trim piece to help your appliance look clean and cared for. What it does:

• Covers and protects the edge of the control panel for a finished appearance
• Hides scratches, chips, and worn spots on the control area
• Helps reduce dirt and grime buildup along the panel edge
• Matches the original fit and finish when replacing a broken or bent trim

• One decorative trim piece as shown

• Disconnect power to the appliance before beginning any work
• Remove any screws or retainers and lift the old trim away; the new trim typically snaps or screws into place
• Handle trim carefully to avoid scratching the finish during installation

This push-button switch mounts in the control area and completes the circuit when pressed, allowing the appliance to start or change a function. Replacing a worn switch restores reliable button response and consistent operation.

• Closes/opens the electrical circuit when the button is pressed and released
• Helps control on/off or specific functions, depending on the appliance design
• Common symptoms: no response to button presses, intermittent operation, or having to press unusually hard
• Physical signs of failure can include a stuck button, broken tabs, or damaged terminals

• Disconnect power to the appliance before servicing
• Access the control area; note wire locations and terminal markings on the original switch
• Transfer connectors one at a time to the new switch; secure the switch in its bracket or panel
• Reassemble, restore power, and test button operation

This cover switch protects and secures the appliance's access-panel switch, keeping the switch assembly in place and helping maintain normal control operation. It replaces a worn or damaged switch cover to restore safe, consistent function. What it does:

• Holds the access-panel or control switch in the correct position so the switch can operate reliably
• Helps prevent dirt, debris, and accidental contact with the switch mechanism
• Commonly replaced when covers are cracked, broken, or no longer secure

• Disconnect power to the appliance before starting any repair
• Remove the access panel or control bezel to reach the switch cover; keep track of fasteners
• Inspect surrounding components for damage and replace if needed for a secure fit

This switch cover protects and secures the appliance's switch assembly, keeping the switch aligned and shielded from debris so the switch can operate reliably. It's a simple replacement that restores the original enclosure. What it does:

• Covers and protects the switch assembly from dust, moisture, and impact
• Keeps the switch properly seated and aligned for reliable actuation
• Prevents foreign objects from interfering with switch operation
• Can resolve symptoms like intermittent or failed switch actuation and related start/door/lid detection issues

• Disconnect power before starting any repair to avoid shock or injury
• Access may require removing the control panel, top lid, or inner trim depending on model
• Replace the cover and secure with the original fasteners; no wiring changes required
• If the original switch is damaged, replace the switch assembly as recommended

A small replacement retaining clip that secures components and trim so parts stay aligned and rattle-free. Replacing a damaged clip restores proper fit and prevents loose panels or wiring from shifting during use. What it does:

• Holds panels, trim pieces or small assemblies in place to maintain correct alignment
• Prevents vibration noise and rattling caused by loose or missing fasteners
• Keeps wiring harnesses or lightweight components from moving or snagging
• Useful when a clip is cracked, broken or lost during service or disassembly

• Disconnect power (and water, where applicable) before servicing any appliance
• Access clip location by removing the necessary panel or trim; keep track of fasteners
• Use pliers or a small screwdriver to remove the old clip and press the replacement into place
• Replace only with the exact part number to ensure proper fit and secure mounting

This small replacement clip secures appliance panels and trim so parts stay aligned and rattle-free. It restores proper fit for loose trim, panels or internal components, helping stop vibration and intermittent contact. What it does:

• Fastens panels, trim pieces or lightweight components to the appliance frame
• Keeps parts aligned to prevent rubbing, vibration noise and scraping
• Helps maintain electrical and mechanical connections by holding harnesses/parts in place
• Used where a small, durable retainer is required for proper fit and function

• Disconnect power to the appliance before starting any repair
• Typically installs by snapping into a mounting slot or over a stud; light prying may be required
• Use basic hand tools as needed; avoid excessive force to prevent breakage
• Replace any broken mating tabs or damaged surrounding trim for a lasting repair

A replacement hood damper assembly that opens and closes the vent opening to help direct exhaust airflow and reduce backdrafts when the range hood or microwave fan is off. Restores proper vent operation and helps control odors and smoke. What it does:

• Opens to allow exhaust air to escape when the hood fan runs
• Closes to block outside air and reduce backdrafts when the fan is off
• Helps improve ventilation performance and reduces kitchen odors and smoke build-up
• Commonly replaced when the damper is stuck, bent, or noisy

• One hood damper assembly

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the hood or microwave bottom panel; support the unit if needed
• Verify damper orientation and secure mounting fasteners; test operation before reassembly

This is a genuine replacement mounting screw used to secure appliance components and panels. It restores proper fit and reduces rattling or loose parts for a safe, stable appliance. What it does:

• Fastens panels, brackets, or internal components to keep parts aligned
• Stops vibration and rattling caused by missing or worn fasteners
• Restores secure attachment after disassembly or repairs
• Works wherever the OEM screw specification is required

• Disconnect power and, if applicable, gas or water before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten — excess torque can strip threads or crack parts

This factory screw secures components in your appliance to keep panels and parts firmly in place. Replacing a missing or stripped screw restores a tight fit and helps prevent rattles, gaps, or loose assemblies.

• Fastens panels or brackets where this size/style screw is specified
• Helps correct loose, vibrating, or misaligned parts due to missing or damaged hardware
• Maintains proper fit and finish after service or part replacement

• Unplug appliance or shut off power before servicing
• Note screw location and orientation during removal to match threads and length
• Start by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or inserts the screw threads into
