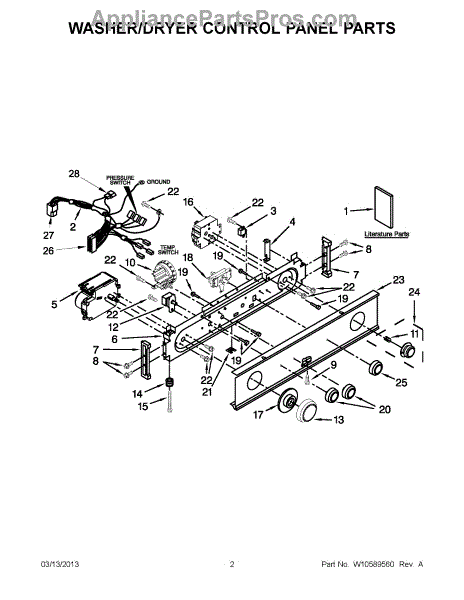

Parts for Whirlpool LTE5243DQB: 01 - Washer / Dryer Control Panel Parts

This replacement buzzer assembly restores audible alerts and beeps for cycle status, touchpad feedback, and error notifications so you won't miss completed cycles or warning signals. It fits into the appliance's control area and connects to the existing wiring. What it does

• Produces audible beeps for cycle end, timer alerts, and control-pad feedback
• Signals fault codes and warnings so problems are noticeable
• Replaces a buzzer that is silent, weak, or intermittent
• Works with the existing control harness and mounting location

• One buzzer assembly

• Disconnect power to the appliance before servicing to avoid shock
• Handle control board and wiring gently; avoid bending pins or pulling on wires
• Test function before reassembling trim or panels

This console lock secures the appliance control console and helps prevent accidental changes to settings. It replaces a worn or broken console latch so the control panel stays closed and functions as intended. What it does:

• Secures the control console or access panel to prevent unintended opening
• Restores a solid latch action when the existing lock is loose, broken, or missing
• Helps prevent accidental button presses or changes to selected cycles
• Fits into the control console area and engages with the console catch mechanism

• One console lock assembly

• Disconnect power to the appliance before attempting any repair
• Removal typically requires access to the control console—refer to your model-specific service manual
• Handle plastic tabs and clips carefully to avoid breakage during removal and installation

The Timer is an OEM replacement part for Whirlpool washers. It is an electronic component that controls the duration of each wash cycle. The timer is located behind the control panel of the washer.

Causes of a faulty timer can include stripped internal gears or disconnected wiring terminals from use over the years.

Symptoms of a bad timer include:

• Inability to start or stop cycles at the correct times
• Unexpected shutoff or prolonged run times
• Failure to load, wash, rinse, or spin functions

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 3/4 inch.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

This water level pressure switch senses tub fill height and tells the washer when to stop filling—helping prevent overfilling and ensuring correct wash cycles. Replaces a failed or intermittent level switch for proper water sensing. What it does:

• Detects water level via an air pressure line and signals the control board to stop or continue filling
• Restores proper fill and drain logic when the washer overfills, underfills, or stops mid-cycle
• Commonly replaces switches that cause erratic fill behavior, long fill times, or no fill
• Works as the electronic input for the machine to choose correct cycle water amounts

• Disconnect power before servicing to avoid shock or machine damage
• Handle gently; avoid damaging terminals or the attached air hose
• Confirm air hose is properly seated and free of kinks or blockages during reassembly

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This water temperature selector switch lets the washer choose the correct fill temperature during cycles, restoring user control over cold, warm and hot fills. Use it to replace a worn or unresponsive temperature control switch. What it does:

• Selects the washer's water temperature setting so the machine fills with the requested temperature range.
• Sends the temperature-selection signal to the control and inlet valve system.
• Common symptom fix: temperature setting won't change or the washer always fills with the same temperature.
• Helps resolve erratic temperature selection or a loose/non-responsive temperature dial.

• Disconnect power and turn off water supply before starting work.
• Access requires removing the control console or selector knob—retain hardware for reassembly.
• Avoid touching electrical terminals; ensure connections are secure and oriented as removed.

The Knob is an OEM part for Whirlpool washers. This part allows users to select and control the various wash cycles and settings by turning the knob to the desired position. It fits securely onto the washer's control shaft, providing an intuitive and reliable interface for managing the washing machine's functions.

Causes of a bad knob can include regular wear and tear, damage from repeated use, or breakage due to accidental impact.

Symptoms of a bad knob include:

• The knob not turning smoothly or becoming difficult to turn
• The knob slipping off or not staying securely on the control shaft
• Inaccurate or unresponsive cycle and setting adjustments
• Visible cracks, breaks, or wear on the knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the replacement spring used in the console lock assembly to restore proper tension and movement in the control lock mechanism. It helps the lock return to its resting position so the console control operates correctly. What it does:

• Provides tension for the console/keyboard lock mechanism so buttons and switches return properly
• Restores correct movement of the lock actuator to engage and release the console lock
• Can resolve symptoms such as a stuck or unresponsive console lock or buttons that don't spring back
• Small part that is part of the overall console lock assembly function

• One spring for the console lock assembly

• Disconnect power (unplug or trip breaker) before servicing the appliance
• Access requires removing the console or control panel—keep track of screws and orientation
• Handle carefully; small spring can be difficult to seat, consider using needle-nose pliers or a magnetic pickup tool

This console lock screw secures the appliance control console or console lock assembly to the cabinet, keeping controls fastened and aligned for reliable operation. Simple replacement for loose or missing console hardware. What it does:

• Fastens the console/console lock assembly to the appliance cabinet or control housing
• Restores a secure, rattle-free console and proper panel alignment
• Used when a screw is missing, stripped, or damaged and the console feels loose
• Small hardware solution that prevents further wear to console trim and components

• Disconnect power to the appliance before beginning any repair to avoid electrical shock
• Use the correct screwdriver or driver bit to avoid stripping the screw head
• Thread the screw in carefully and snug—do not over-tighten to prevent damage to threads or plastic parts
• Inspect the mounting hole and replace or repair as needed before installing

This 4-cycle dryer timer controls the sequence and duration of your drying programs. Replace it to restore proper cycle advance and automatic shut-off when the unit stalls mid-cycle or runs past the set time.

• Sequences power to the motor and heater based on the selected program
• Advances the cycle and turns the dryer off at the end of the set time
• Supports timed drying and cool-down functions
• Common symptoms of a failing timer: cycle won't advance, runs too long/short, or won't shut off at end

• Disconnect power; for gas models, shut off gas supply
• Access the control console; remove the knob and rear panel as needed
• Transfer wires one at a time to matching terminals;
• Secure the timer, reassemble the console, and test all cycles

The Washer Timer Dial is an OEM replacement part for Whirlpool washers. Positioned just behind the washer timer knob, the timer dial has a gray indicator that helps the user select the appropriate cycle. It interacts with the timer to ensure the washer operates in the correct mode and duration according to the chosen cycle.

Over time, the timer dial may degrade due to regular use, excessive force during cycle selection, or accidental impact. This can lead to inaccurate cycle selection, making it hard to use the washer efficiently.

Color: White

Symptoms of a faulty Washer Timer Dial include:

• Misalignment or sticking when choosing cycles
• Difficulty accurately selecting the desired cycle
• Cracked or broken indicator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This push-to-start switch activates the cycle when you press the start button or knob. Replacing a worn switch restores reliable starts and eliminates intermittent, no-response issues when starting your appliance.

• Momentarily closes the start circuit to energize the motor/control when pressed
• If defective, symptoms include no start, starts only while the button is held, or intermittent operation
• Restores consistent response to the start button/knob

• Disconnect power before servicing; also shut off gas supply
• Access the control/console area to reach the switch behind the start button/knob
• Note wire positions or take a photo; move wires to the new switch one at a time
• Secure the switch, align the knob with the shaft, reassemble, and test

White

This console clip secures the appliance control console or control panel to the cabinet, restoring a snug, stable fit and stopping rattles or loose movement. Durable plastic clip designed to replace a broken or worn fastener. What it does:

• Holds the control console in place to prevent sagging or separation from the cabinet
• Stops rattling or vibration noise caused by a loose console
• Restores proper alignment for buttons and switches on the control panel
• Replaces a cracked, worn, or missing mounting clip

• One console mounting clip (1 each)

• Disconnect power before attempting any service to avoid shock or injury
• Remove the console or access panel per your model's service instructions to reach the clip
• Pry out the damaged clip carefully and snap the new clip into the factory mounting boss until it seats
• Handle plastic parts gently to avoid cracking; before reassembling

This replacement timer knob lets you set and turn the dryer's cycle timer smoothly and reliably, restoring easy selection of drying times and cycle settings. Designed as the correct white knob assembly for compatible Whirlpool dryers. What it does:

• Fits onto the dryer timer shaft so you can rotate and select drying cycles and times.
• Replaces a cracked, stripped, loose or missing timer knob that prevents proper control.
• Provides a secure, tactile grip for accurate setting changes.
• Matches the original White finish for a clean, factory look.

• Disconnect the dryer from power before servicing.
• Most knobs pull straight off the timer shaft; align splines and press the replacement fully into place.
• Inspect the shaft and any retained plastic insert; transfer insert if the replacement does not include it.
• If knob is difficult to remove, use steady, even force or a soft-padded puller to avoid damaging the control panel.

Color: White.
