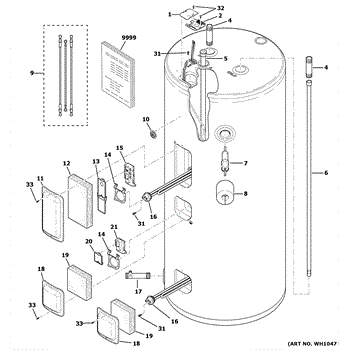

Parts for Ge GE40T08DAT01: Water Heater Assembly Parts

This badge is the small decorative nameplate used on the appliance exterior to display the manufacturer's emblem. It restores factory appearance and covers the original mounting location for a clean, finished look. What it does

• Replaces a damaged, faded, or missing exterior emblem to restore the appliance's original look
• Snaps or adheres into the existing badge location for a factory-correct appearance
• Helps identify the appliance visually without affecting function
• Common symptom: missing, scratched, or peeled badge on the appliance front

• One replacement badge/nameplate (exact fit for the listed part number)

• Installation is typically simple: align badge with mounting location and press into place; adhesive backing or snap clips may be used depending on model
• Clean mounting surface before installing to ensure good adhesion
• Use gentle pressure; avoid sharp tools that could scratch the finish
• If clips break during removal, replace clips only if explicitly listed as included

This control assembly regulates the oven's upper heating element and includes a thermal cut-off to help prevent overheating. It restores proper temperature control and helps the range heat more evenly. What it does:

• Controls power to the oven's upper heating element for stable cooking temperatures
• Incorporates a thermal cut-off that interrupts power if temperatures exceed safe limits
• Commonly replaces a failed control when the oven won't heat, overheats, or has irregular baking
• Works as the electrical control interface between the range's user inputs and the upper element

• Disconnect power at the breaker before inspecting or replacing this part to avoid shock.
• Access typically requires removing the oven back panel or control housing; follow the manufacturer service manual.
• Handle the control and thermal cut-off carefully to avoid bending terminals or damaging connectors.

This level regulator control manages the ice maker's water fill level to ensure proper ice production and reduce overflows. It replaces a faulty regulator to restore consistent water sensing and filling performance. What it does:

• Controls the ice maker water fill level so each cycle fills to the correct amount
• Helps prevent overfilling or underfilling that can cause poor ice quality or leaks
• Works with the ice maker assembly to time and stop water fill during harvest cycles
• Commonly replaces parts that cause continuous filling, no filling, or visible leaks

• 1 level regulator control

• Disconnect power to the appliance before starting any repair
• Handle wiring connectors and sensors carefully; match connector locations during reassembly
• Inspect surrounding components for damage before final testing
• Test for proper fill and cycle operation after reinstalling

This is a 10-32 x 1/2 screw with a hex washer-style head used to fasten appliance panels and components securely. It replaces missing or damaged fasteners to restore proper fit and reduce vibration. What it does:

• Secures panels, brackets, and trim to the appliance frame
• Provides a low-profile, washer-style bearing surface for even clamping
• Helps stop rattling and movement caused by loose or missing screws
• Designed for use where a 10-32 thread and 1/2" length are specified

• Disconnect power and water before servicing the appliance
• Use the correct 10-32 driver or socket to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Replace with the exact screw size and type for safe, proper fit

This 10-32 x 1/2 in pan head screw secures panels and small components on appliances, giving a flush, finished hold and corrosion resistance from its zinc plating. Ideal when replacing a missing, loose, or stripped fastener. What it does:

• Fastens panels, brackets, and internal components with a 10-32 thread
• Pan head provides a low-profile, rounded bearing surface for trim and covers
• Zinc plating helps resist rust and wear in typical appliance environments
• Replaces missing or damaged screws that cause loose panels, rattling, or poor alignment

• Use the correct 10-32 driver (Phillips or slotted as originally used) and start threads by hand to avoid cross-threading
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Disconnect power and follow appliance safety instructions before servicing interior components
• Replace all matching fasteners for even fit and security
