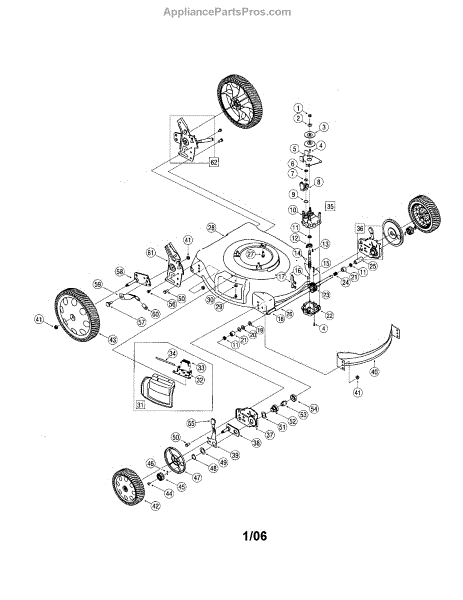

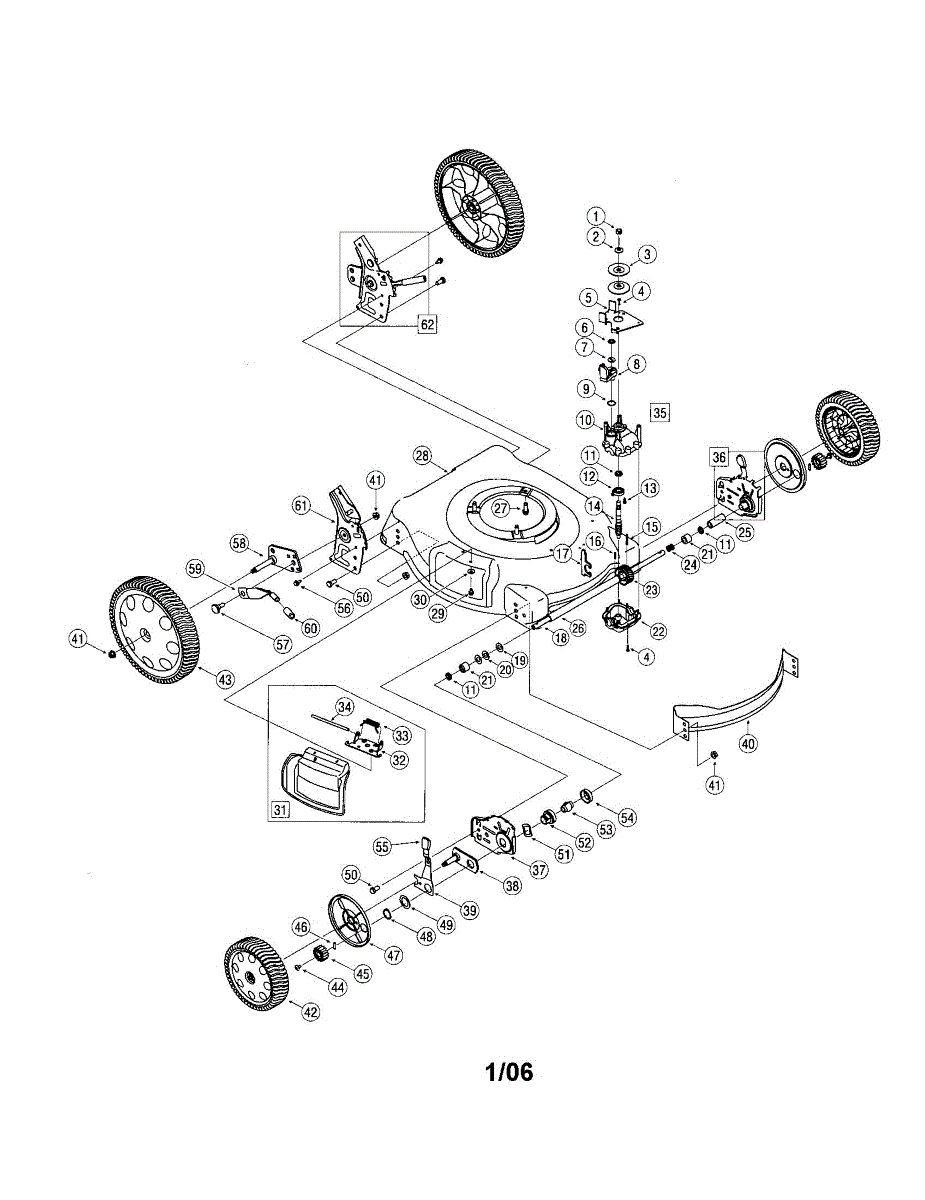

Parts for Troy-Bilt 565: Wheel Assembly Parts

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Torx screw for mowers and snow throwers. Secures carburetor, seat, transmission, and other components. Replace if stripped, missing, or damaged.

Hex washer screw for gas walk-behind and self-propelled mowers. Secures components during operation. Replace if stripped, rusted, or missing.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Replace your cracked or damaged 21-inch mower deck. This structural component houses the blade assembly on self-propelled walk-behind mowers.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Mulch plug assembly for walk-behind mowers. Blocks the discharge chute opening to enable mulching mode. Replace if cracked, broken, or missing.

Adapter plate for lawn mowers. Mounts between components to ensure proper alignment and secure attachment. Replace if cracked, bent, or missing.

Mulch plug assembly for walk-behind mowers. Blocks the discharge chute opening to enable mulching mode. Replace if cracked, broken, or missing.

Hinge pin fastener for lawn mowers. Secures moving components and panels. Replace if bent, missing, or damaged to restore proper attachment and function.

Replace a broken torsion spring causing handle slack or engagement issues on your lawn mower. Common DIY repair restores proper tension and operation.

If your mower won't propel forward or has inconsistent speed, the transmission assembly may have failed. This part connects the engine to the wheels.

Height adjustment assembly for walk-behind mowers. Installs on the deck to control cutting height. Replace if cracked, broken, or mechanism worn.

Height adjuster for lawn mowers. Controls blade cutting height settings. Replace if lever is broken, cracked, or won't hold adjustment position securely.

Left-hand spring lever for lawn mowers. Installs on the handle assembly. Replace if lever is bent, broken, or missing to restore proper operation.

Front baffle for lawn mowers. Installs in the deck area to direct airflow and debris. Replace if cracked, broken, or missing for proper operation.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

The front-drive wheels are attached to the axle with a ring gear and a left-hand smaller gear inside. The wheels are responsible for keeping the mower deck from touching the ground and keeping the blade at a good height for safe operation. They also provide easy maneuvering of the lawnmower. The black and white finish offers a clean, classic look. Although wheels don’t typically wear down enough to need to be replaced, they can become damaged over time. If the wheels are broken or missing, this replacement from the manufacturer can get a lawn mower rolling again in no time at all. Although it’s not required, it is suggested to replace wheels in pairs to ensure even wear over the lifespan of the mower. The front-drive wheel is compatible with several MTD and Troy-Bilt lawnmowers that require front drive wheels. This wheel is typically for self-propelled models. This item is sold as a single unit and additional wheels will have tobe purchased separately. These sturdy plastic wheels are direct from the manufacturer and made to their exact standards to guarantee proper performance and fit with every compatible model.

Replacement rear wheel for walk-behind mowers. Installs on axle assembly. Order when original wheel is cracked, broken, or worn for smooth operation.

Replacement screw for gas walk-behind and self-propelled mowers. Secures components and housing panels. Needed when original is stripped or missing.

Fix mower that won't move or has grinding noises with this 14-tooth left-hand spur gear. Essential transmission component for self-propelled models.

Replace your lawn mower's worn or damaged 14-tooth right-hand spur gear. Fits gas walk-behind, self-propelled, and hi-wheel mowers. Order now.

Dowel pin fastener for lawn mowers and outdoor power equipment. Secures two components together. Replace if damaged, worn, or missing during repairs.

Wheel dust cap for lawn mowers. Covers the wheel hub to protect bearings from dirt and debris. Replace if cracked, broken, or missing from your mower.

Hex screw for lawn mowers and outdoor power equipment. Secures components and panels. Replace if stripped, rusted, or missing for proper assembly.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

Pivot arm assembly that connects the wheel to the spring arm on walk-behind mowers. Replace if broken, cracked, or worn to restore proper height adjustment.

This replacement part is an arm assembly, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This part is typically found in lawn mowers that uses handles to steer and turn. This arm assembly is what allows the user to control the appliance and use it properly while cutting lawns. A new arm assembly might be needed if the user notices that the current arm or handle area is broken or damaged in anyway. It is possible for the arm assembly to become worn down overtime including being stripped of the color or coating. The user might want to replace the arm assembly simply for looks. Be sure to wear work gloves during this replacement as the old arm might be sharp or rigid. This arm assembly is sold individually. This replacement part is a genuine OEM part sourced directly from the manufacturer

Foam grip for lawn mower handles. Provides comfortable cushioning and vibration dampening. Replace if worn, cracked, torn, or missing for better control.
