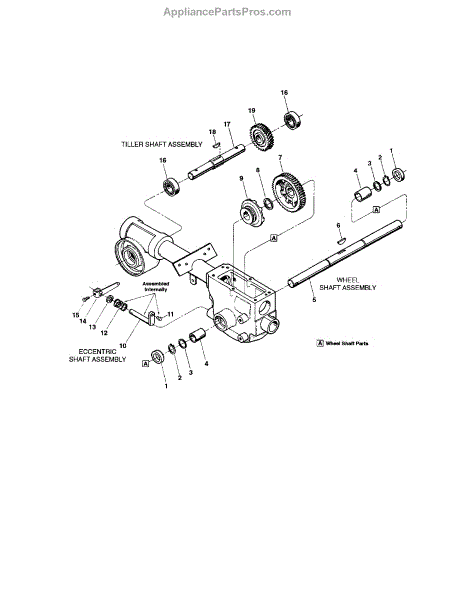

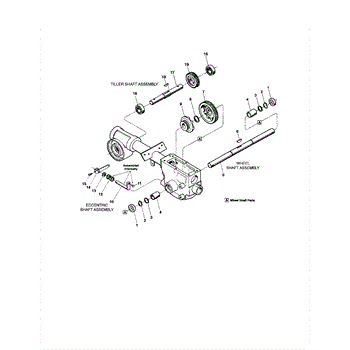

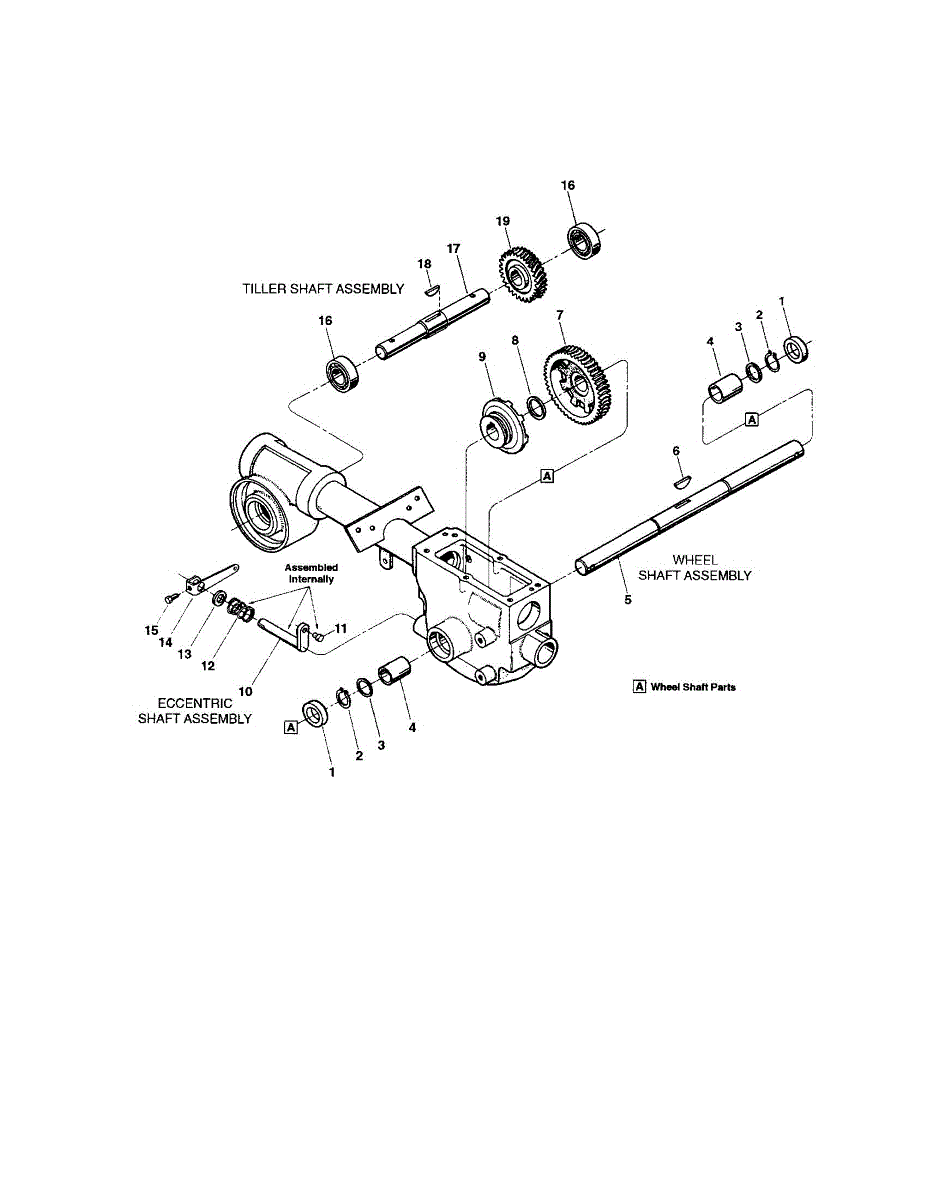

Parts for Troy-Bilt 21A-664D063: Wheel, Eccentric And Tiller Shafts Parts

This is a wheel shaft oil seal that can be used on several tillers and lawnmowers. It is located in the same areas as the tire and wheel assembly and prevents the leaking of oil from this area of the equipment. The seal is made of durable plastic but wear and tear or regular use can wear it our or cause damage. If the seal is damaged, it will start to leak oil and the part will need to be replaced.An inspection of the wheel shaft oil seal will determine whether it is causing issues with the tool. First, the wheels need to be removed and the shafts cleaned. The wheel shaft oil seals can be accessed from here, so a user can determine if they need to be replaced. If they do, the old seals should be pulled out of the holes using a pry bar. Oil the new oil seals and replace them.This is an authentic OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual oil seal. This component is designed to be used in lawn mowers and tillers that are manufactured by Troy-Bilt, Cub Cadet, and MTD.

This is an MTD lawn mower clutch. The clutch is responsible for shifting up or down between speeds on the lawn mower. A lawn mower's brake/clutch pedal engages the clutch, which in turn allows the lawn mower to be placed in different speed settings, as well as forward and reverse. Typically all clutches end up going bad at some point due to general wear on the product. An overused clutch pedal can wear the part down and not fully engage the clutch before shifting gears. Once a clutch begins to wear down, there is a noticeable difference in the feel of the mower when shifting between gears. It may become difficult to move from one gear to the next. The easiest way to begin a clutch replacement is by putting the lawn mower onto a lifting mechanism or jacks at the underside. Remove the safety covers to allow access to the drive belt tensioner. Remove the belt from the pulley on the clutch. If the clutch is electric, the cable needs to be unplugged from the wire harness. Perform these steps in reverse to install the new component.This part is compatible with MTD and Cub Cadet machines. It is available individually as a genuine OEM product sourced from the manufacturer

This part is a replacement ball bearing. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or worn ball bearing in tillers.Ball bearings ensure that parts within the equipment move smoothly and with minimal friction or vibration. Bearings can become worn or damaged over time and may require replacement. When working on or near an engine, it's important to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this ball bearing, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality metal. This ball bearing can be used with different models of tillers that have been manufactured by MTD, Craftsman, and other brands. Part sold individually.
