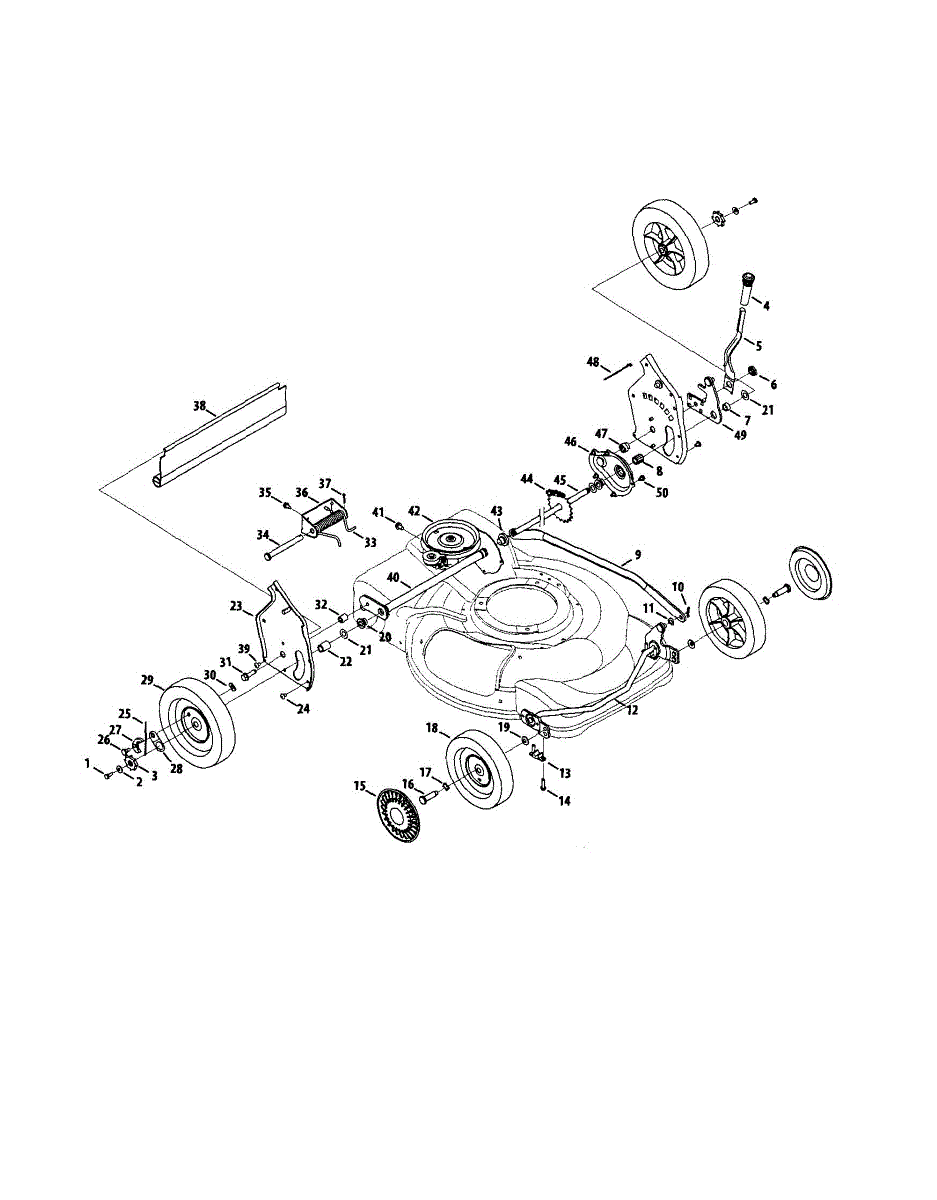

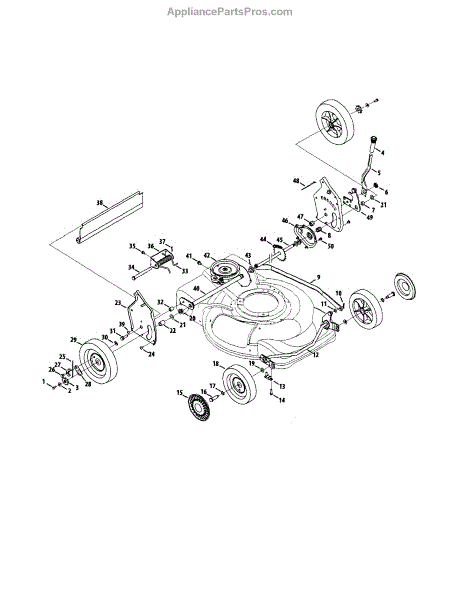

Parts for Craftsman 24737109: Wheels / Transaxle Parts

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Ratchet wheel for lawn mowers. Installs in the drive mechanism to enable continuous motion in one direction. Replace if cracked, worn, or damaged.

Replace worn, cracked, or missing handle grips on your lawn mower or snow blower. Restores comfortable control and cushioning to equipment handles.

Replacement lever spring for gas walk-behind and self-propelled mowers. Installs on control lever assembly. Replace if worn, stretched, or broken.

Shield nut for lawn mowers. Secures protective shields and guards in place. Replace if threads are stripped, nut is missing, or won't tighten properly.

Spacer component for lawn mowers and tillers. Reduces friction between parts while maintaining proper spacing. Replace if worn, damaged, or missing.

Lawn mower sleeve bearing allows flexible motion between components and reduces vibration. Replace if worn or damaged to restore smooth operation.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

Bowed washer for lawn mowers and tractors. Installs in fastening mechanisms to reduce friction. Replace if worn, damaged, or missing from assembly.

Fix lawn mower vibration or loose components with this block bushing. Facilitates smooth rotational movement and secures internal machinery. Easy DIY fix.

Hex washer head screw for lawn mowers and snow blowers. Replace worn, stripped, or missing fasteners on deck, housing, or engine components.

Grey plastic wheel hubcap for lawn mowers, snow throwers, and outdoor power equipment. Replaces cracked, broken, or missing hubcaps to protect wheel hubs.

Shield mounting screw for lawn mowers and tillers. Secures protective shields and covers to the mower deck. Replace if screw is stripped, missing, or damaged.

Wave washer helps secure fasteners and improve operation on lawn mowers and walk-behind equipment. Direct fit replacement part for push and self-propelled models.

Replace worn, cracked, or missing tire and rim assembly on your lawn mower or tiller. Installs on wheel axle for smooth rolling and maneuverability.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Flange bearing enables smooth operation and prevents overheating in lawn mowers. Replace if equipment runs rough or bearings show wear. Verify fit.

Flat washer for lawn mowers and outdoor power equipment. Installs between fasteners to distribute load and prevent damage. Replace if missing or worn.

Hardware spacer for lawn mowers. Installs on shafts to create proper gaps between connections. Replace if cracked, damaged, or missing for correct fit.

This is a pawl that can serve as a replacement for some mower models, as well as chippers and shredders. The pawl attaches to the ratchet pawl plate. The pawl is essential for starting the engine. When the starter turns, the pawl is forced outward and locks onto the flywheel, allowing the engine to start. When the starter rope is let go, the springs pull back the ratchet pawls. If there is damage to the pawl, the engine will not start.The piece is made from durable metal, and it is built to last. However, it can start to wear down over time. Additionally, there is the potential that it could corrode. If there are issues with the pawl, replace them as soon as possible to ensure their machine continues to operate properly.This pawl can work with select models from MTD, Troy-Bilt, Yard-Man, Cub Cadet, and Husky. The piece is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

This is a genuine OEM wheel sourced directly from the manufacturer for use on walk-behind mowers. It is one of the two rear wheels. If a wheel is damaged or lost, the lawnmower will not be operable. The wheels should be inspected prior to use to make sure they are functioning properly. If not, they should be replaced. This replacement takes approximately 10 minutes to complete. A socket set and screwdriver can be used to remove and replace the wheel. Before starting, disconnect the spark plug to ensure the mower is not accidentally started. Place the mower on wheel chocks and remove the damaged wheel. Install the new wheel and tighten using the socket set. Reinstall the spark plug and lower the lawnmower to the ground. Push the lawnmower to make sure the wheel is secure.This wheel is a solid black plastic wheel that is sold individually. It is a one-piece wheel with a rim included. It is designed to be compatible with lawnmowers manufactured by Troy Bilt, Yard-Man, and MTD.

Replacement fastener for lawn mowers and tractors. Secures components and panels in place. Order a new fastener if yours is stripped, missing, or damaged.

This is a genuine replacement self-tapping hex screw with a blunt nose designed for lawn mowers and lawn tractors. It is used in a variety of locations for the engine assembly of lawn mowers. The self-tapping feature allows the metal screw threads to tightly secure to other metal. The blunt nose requires the use of a pre-drilled pilot hole smaller than the diameter of the screw. These screws do not interchange well. Be sure to check the owner's manual to ensure the correct part number. The hex head needs a socket wrench for the easiest removal and replacement. When removing this type of screw, stripped threads can occur. If this happens, use a screw of the same type in a slightly larger size to accommodate for the damage. Typically, this type of screw would need to be replaced when removed to access another part of the lawn mower for replacement, such as the carburetor. This an OEM part sourced directly from the manufacturer and is sold individually. This screw fits products by Bolens, Brute, Columbia, County Line, Craftsman, Cub Cadet, Huskee, Huskee Supreme, MTD Black, MTD Gold, Mastercut, Murray, Troy Bilt, Yard Man, & Yard Machines.

Clevis pin fastener for lawn mowers and chipper shredders. Secures internal components. Replace if bent, broken, or missing to restore proper assembly.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

Fastener pin that secures nuts and bolts in lawn mower engines and assemblies. Replace if bent, missing, or damaged during maintenance or repair work.

Trail shield for walk-behind gas and self-propelled mowers. Replace this protective guard if cracked, broken, or missing to restore coverage.

Replacement truss head tap screw for lawn equipment engines. Secures various engine components. Replace if missing, stripped, or damaged during maintenance.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

Fix a mower that won't move forward or has a locked-up transmission. This replacement transmission rotates the axle to propel your mower smoothly.

Drive chain connects the axle sprocket to propel your mower's wheels. Replace if chain is stretched, rusted, or mower loses drive power. Verify fit.

Wheels won't turn or wobble on your mower? This right rear axle assembly connects the wheel to your mower frame. Replaces worn or damaged axles.

Replace your lawn mower's chain cover if it's cracked, broken, or missing. This protective cover shields the drive chain assembly on self-propelled mowers.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

Pivot arm for walk-behind lawn mowers that aids in steering and direction control. Replace if worn, damaged, or broken from heavy use or accidents.
