Whirlpool WP9703445 Worm Gear Thrust Bearing OEM Part

This time I replaced the front and rear bearings and thrust bearing and all the gears. The hardest part is thoroughly cleaning out all the old grease. After re-greasing and assembly mixer ran like new. I wish a more robust worm gear was available. A snap ring plier is a must for this job.

I make a lot of bread doughs with my KitchenAid mixer, and it's used 2-3 times a week for large batches of dough. The gears began slipping, and I decided to take the mixer apart, and replace the worn gears. Replacing the transmission housings plastic cover, with the newer metal one will probably result in me not having to repeat this process, as the plastic one broke at the screw holes under pressure. I also replaced the worm gear, and the sleeve bearings.

My brother saw the parts on the counter when they came for dinner. Well that was it, he loves doing that kind of stuff so I said go for it. It was a Kitchen Aid professional mixer, it took him about 30 minutes to complete Works great was a lot easier then I thought it would be.

Watched videos available on APP's website, then ordered all necessary parts. Once parts arrived, just followed the videos again, step-by-step, to repair the mixer. I am NOT a "handyman", but with APP as my resource, I did it. Mixer running great now.

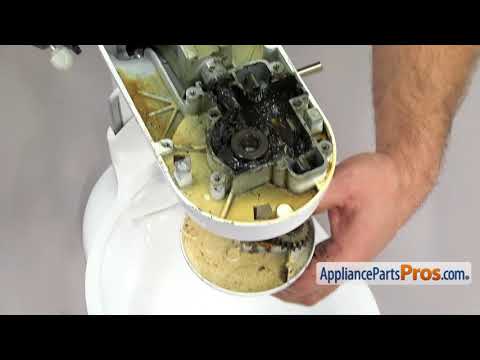

Tore down transmission gear case of my Kitchenaid Professional 600 stand mixer and replaced worn components to include front and rear sleeve bearing, worm gear thrust bearing, worm follower gear, drive shaft retaining clip, center shaft o-ring, and dowl pin. Additionally, replaced black plastic transmission housing with metal one and new gasket, replaced entire planetary assembly, and repacked transmission with OEM food grade grease. After tear down, but before rebuild, l cleaned all components completely of all old gear grease including leakage in stand mixer itself. Note: Kitchenaid has not made an engineering change to the driveshaft/planetary assembly. The drive shaft is tension fit to the planetary. Over time and use, this tension is lost and the planetary plate slips down and eventually off the drive shaft. So, this repair will need to be completed again sometime in the future. I would have rated this experience 5 stars had this been corrected.
