Product Details
Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
See all items in Refrigerator Control Board.
Whirlpool also makes various appliance models for Sears / Kenmore.
Cross Reference Information
Part Number W11449482 replaces AP6986938, W11174836, W11023173, W11133692, W11172796, W11265217.
Description

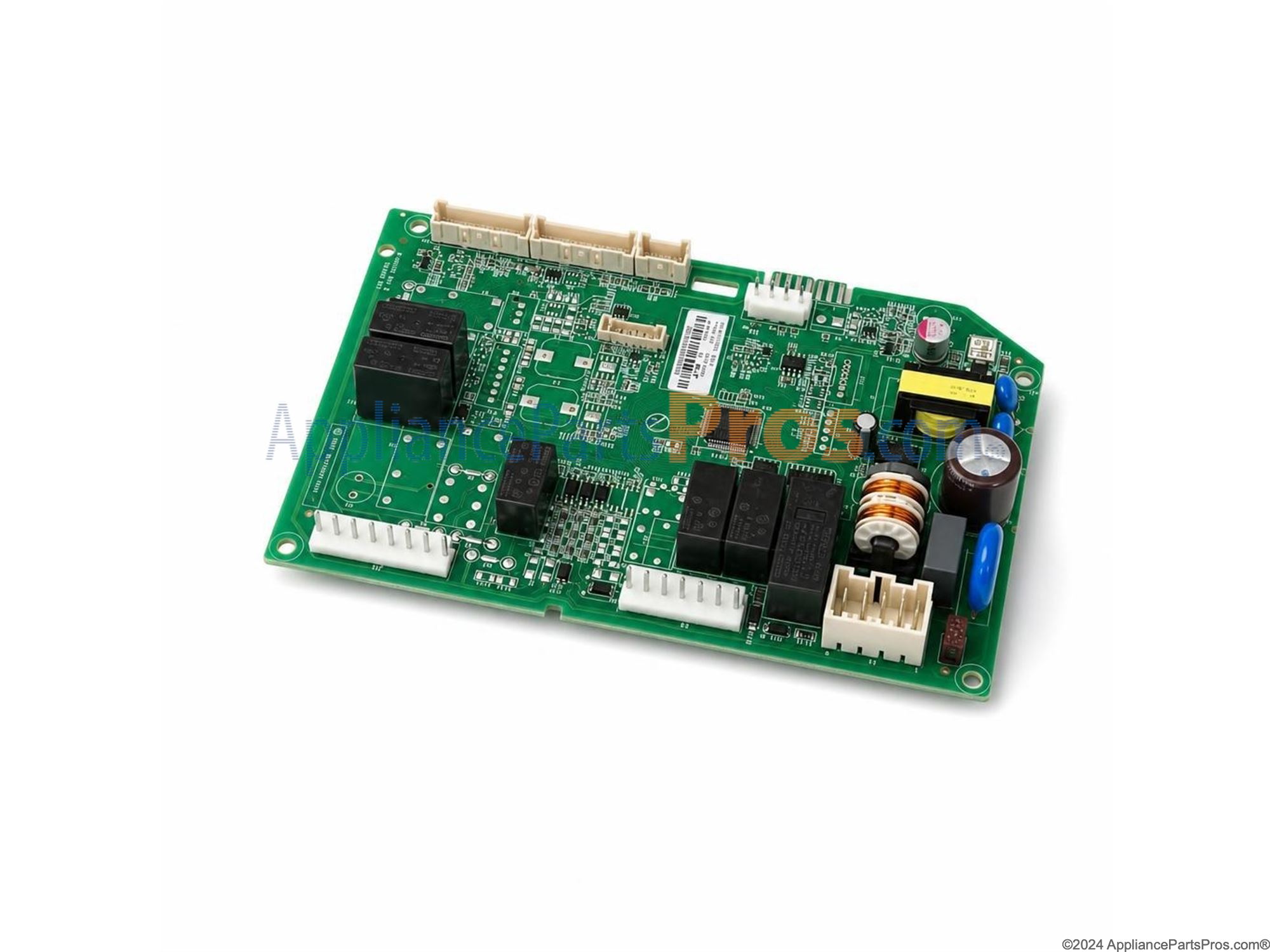

The Control Board is an OEM part for Whirlpool refrigerators. As the central processing unit, this board oversees all cooling, temperature regulation and digital display operations.
The control board monitors factors like door openings, freezer and fridge temperatures using various sensors. It then directs the compressor, fans, defrost componentry accordingly.
Causes of a failed control board commonly involve progressive damage from moisture or dust infiltration over many years of service. Physical impact can potentially disrupt soldered connections as well.
Symptoms of a faulty board include:
- Inability to adjust temperature settings as desired
- Fluctuating freezer or fridge temperatures
- Fault codes appearing regularly on the LCD display
This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
