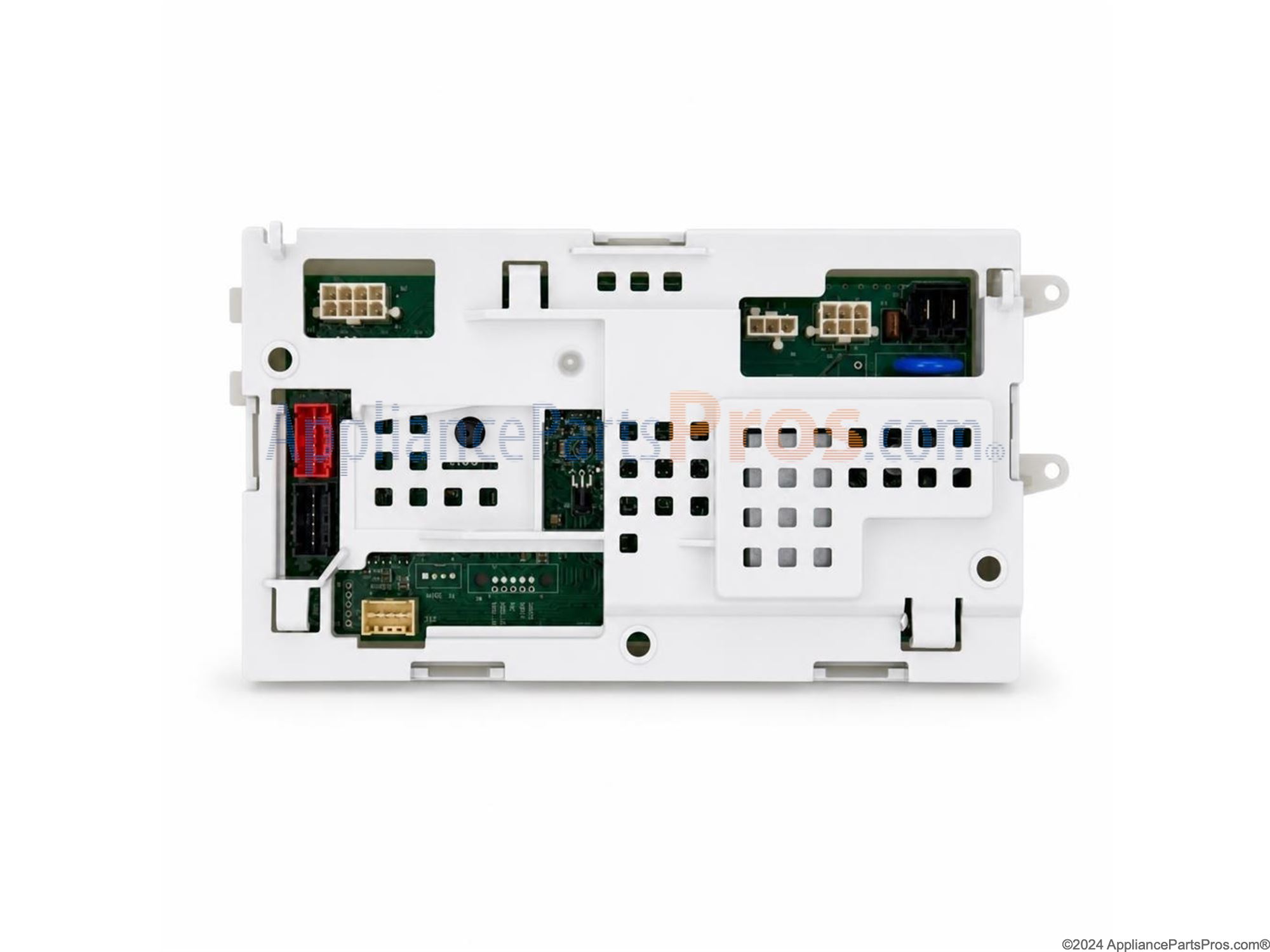

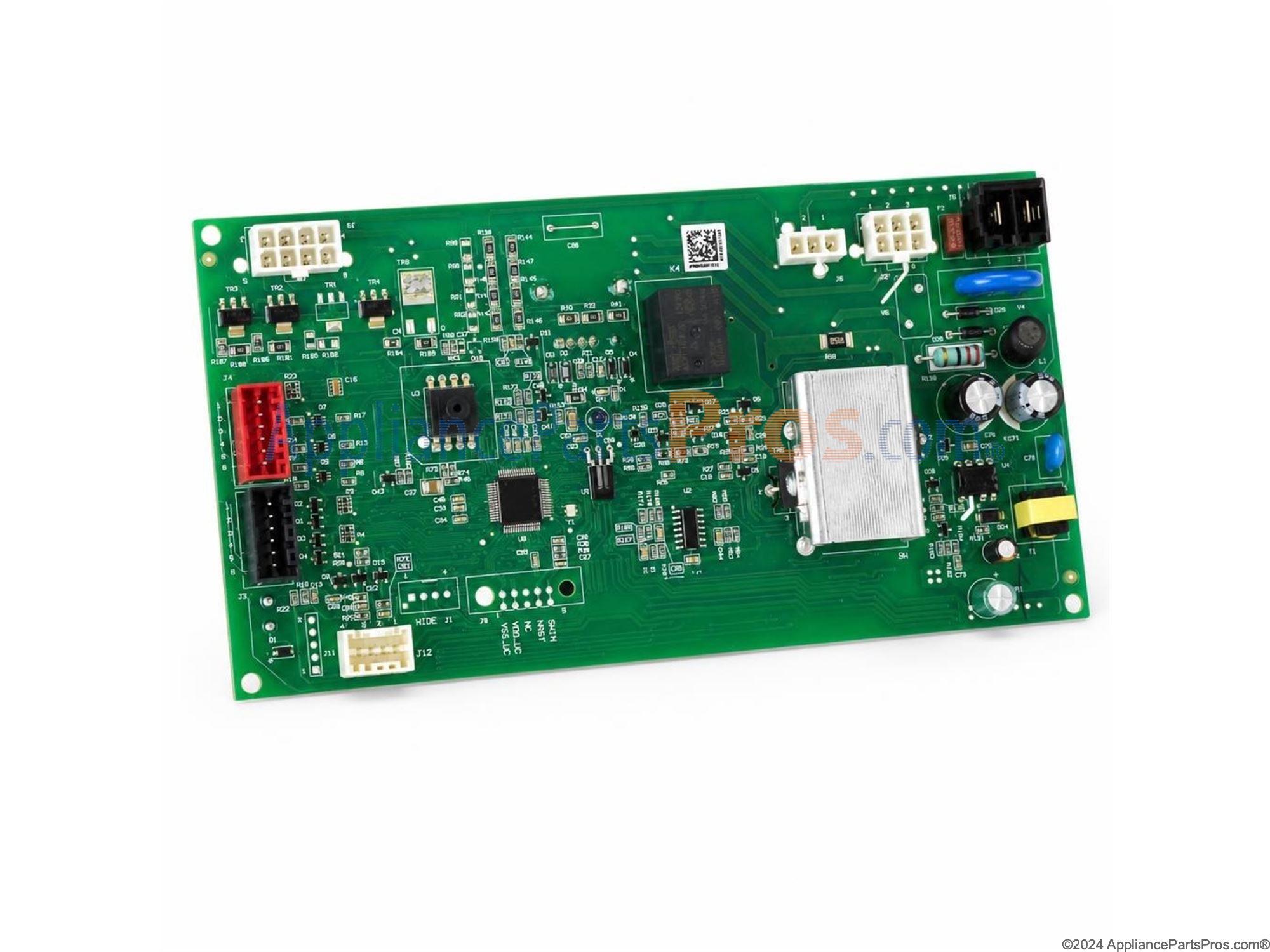

Whirlpool W11608056 Electronic Control Board (Main Control), 1 Board OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11608056 replaces AP7193512, W11578827.

Description

This electronic control board is the dishwasher's main "brain." It manages wash cycles, water heating, and key functions so the machine starts, runs, and completes cycles reliably.

• Coordinates cycle timing, water fill and drain signals, and heater activation
• Failure can present as no power, won't start, random beeping, stuck mid-cycle, or dead display
• Also causes incomplete cycles or error codes related to control communication
• Restores proper sequencing and response to user inputs when the original board fails

What's included: 1 electronic control board assembly Install notes:

• Disconnect power at the breaker before servicing to avoid electrical shock
• Take photos of wire connections to ensure correct reassembly
• Handle the board by edges; avoid touching components and contacts
• After installation, run a test cycle to ensure normal operation
