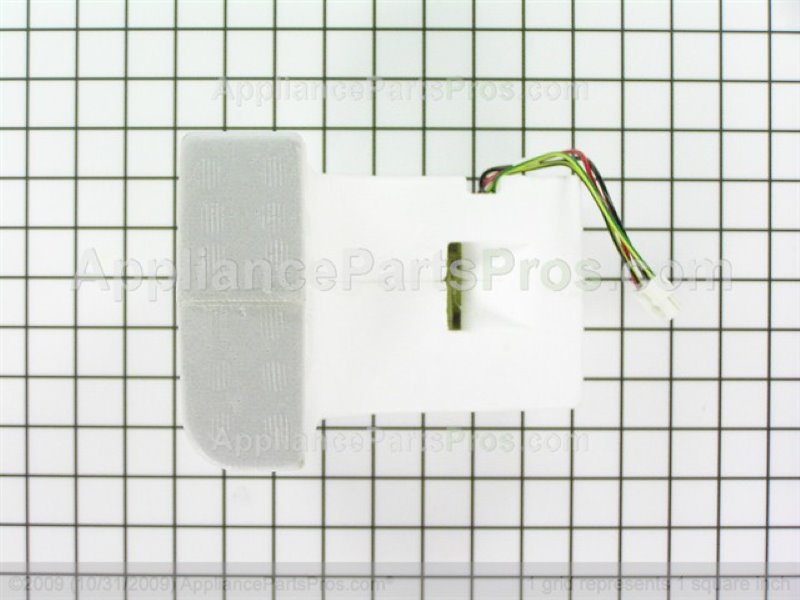

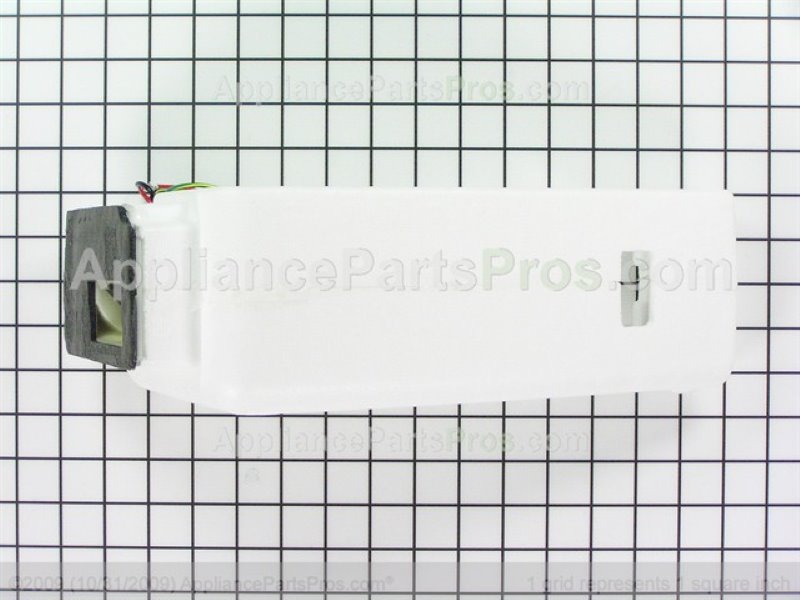

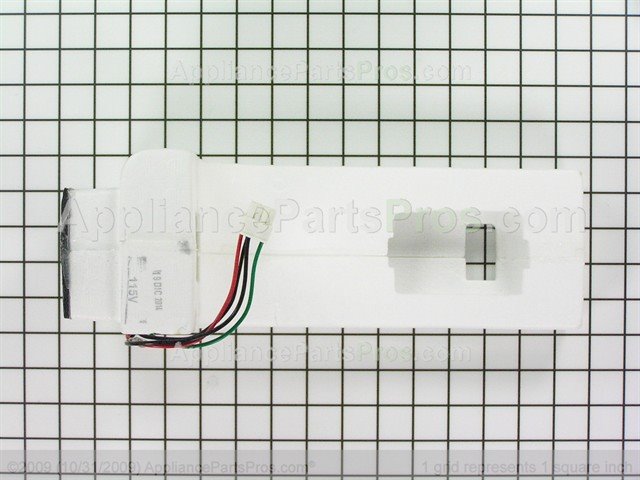

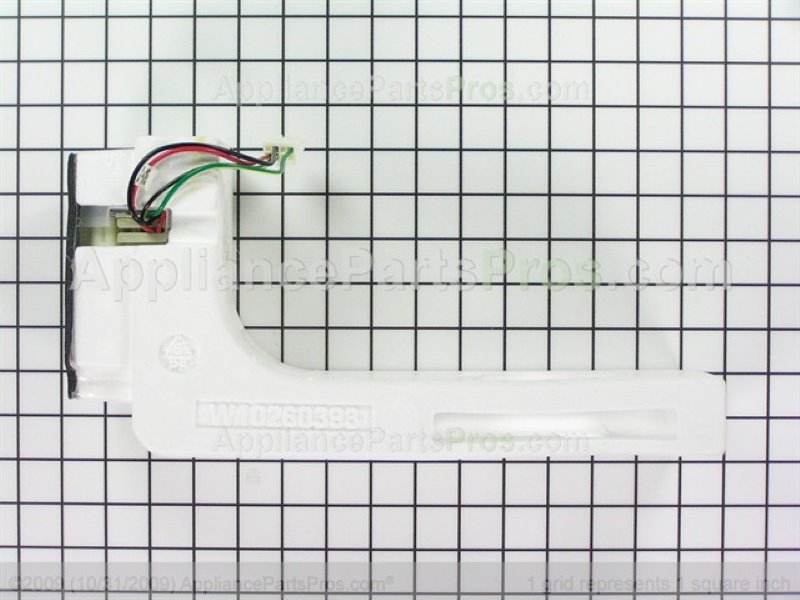

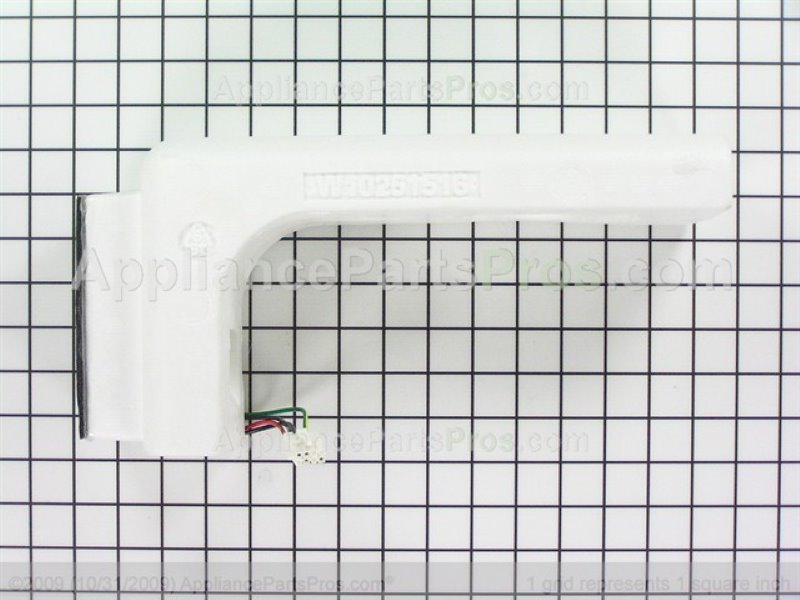

Whirlpool W11177624 Diffuser (Air Damper Control) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11177624 replaces AP6285320, W10699912, 4591492, PS12348494, W10750439, W11096212.

Description

This diffuser meters cold air from the freezer into the fresh food compartment, helping maintain even, accurate temperatures. Replacing a faulty diffuser restores proper airflow, reduces temperature swings, and helps prevent warm spots or freezing.

• Regulates and directs airflow between compartments to help keep set temperatures
• Opens/closes the air passage to prevent over-cooling or under-cooling
• Helps reduce frost or ice near vents caused by constant airflow
• Common symptoms of a failed diffuser: fresh food section warm while freezer is cold, temperature fluctuations, clicking/buzzing from the vent area, frost or ice around the diffuser outlet

What's included: 1 diffuser assembly Install notes:

• Disconnect power before servicing
• Remove shelves/air tower to access the diffuser; handle foam seals carefully to prevent air leaks
• Transfer any sensor, bracket, or seal from the original part if your model uses them
• After installation, restore power and allow up to 24 hours for temperatures to stabilize
