Whirlpool WPW10242957 Radiant Surface Element (2000W) OEM Part

Open oven door removed 2 screws to lift up top then remove 1 screw at back of burner assy to let right side burner assy drop down to replace then remove wires be sure to write down where wires go look on bottom side for location of wire plugs new burner plugs may be located in different location mine was then install new burner assy

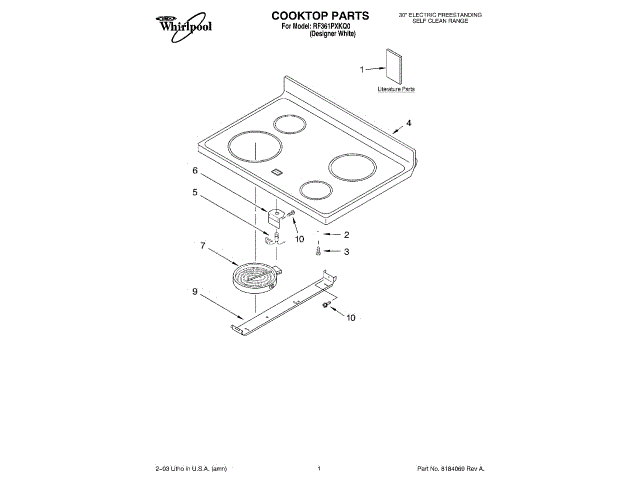

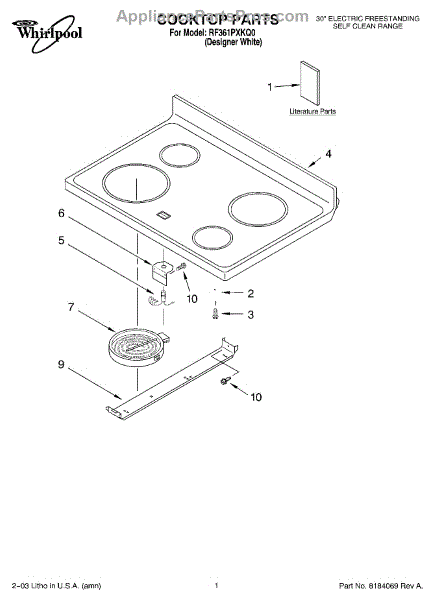

Identified, discussed part selection with ApplicancePartPros phone rep, ordered, and received the burner elements. Installation of the two small elements was uneventful with all fittings as expected. However the large burner element of the replacement unit had a male electrical connector tab that was too large for the female connector attached to the stove wiring. After purchase of a packet of female connectors, i snipped off the old female connector head attached to the stove wire, leaving only the cylindrical portion attached to the wire. The new larger connector slipped over it and crimped on in a straightforward fashion. Another connector broke off during removal from the burned out unit, but a similar procedure fitted a new female connector over the remaining cylindrical stub. Fitting the two female connectors over the old cylindrical stubs avoided having to cut and strip (and in one case, re-twine) wires that were already quite short. For others pursuing repair of this unit, the cooktop part does *not* contain any burner elements--so ordering the cooktop would still require ordering the individual burner units. The AppliancePartsPros phone rep saved me from making that ordering mistake.

Purchased a replacement part at Appliance Parts Pros & installed the part. The only issue was that the terminal configuration of the replacement was different from the original. I spent about 15 minutes to verify the proper wiring configuration.

Ordered the part from you. Was the perfect part. My spouse fixed it. It was easy.

Replaced the part.
