Whirlpool W11628765 Bake Element OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others. See all items in Range / Cooktop / Oven Heating Element.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number W11628765 replaces AP7196195, W10745723.

Description

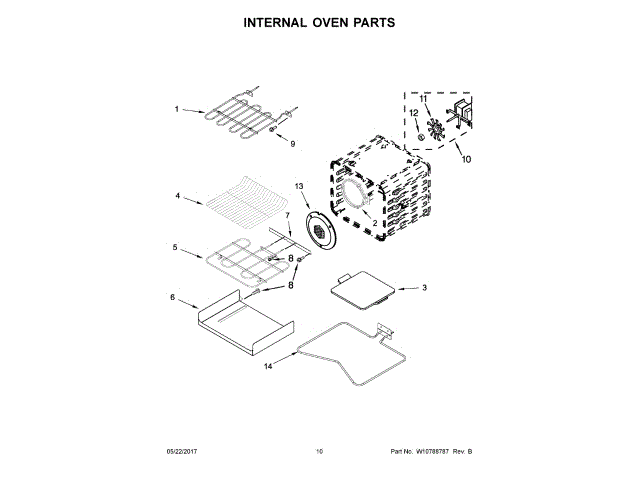

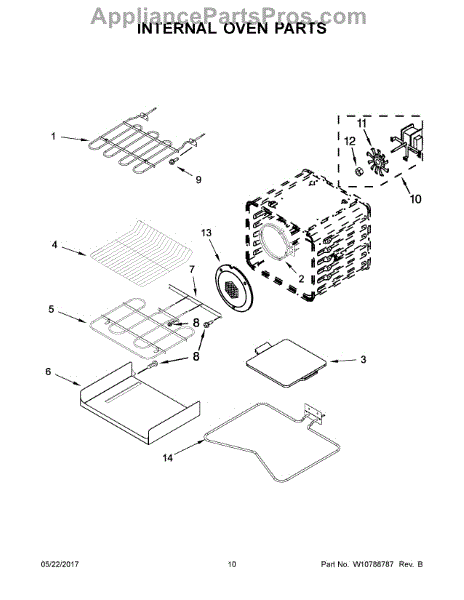

This bake element installs at the bottom of the oven cavity to provide the primary heat during Bake. Replacing a worn or failed element restores proper preheating and consistent baking performance.

• Provides lower-oven heat during Bake cycles
• Helps maintain set temperature for even, reliable results
• Common failure symptoms: no heat in Bake, unusually long preheat times, uneven or undercooked food
• Visual indicators can include blistering, cracks, or burn-through on the element

What's included: 1 bake element Installation notes:

• Disconnect power at the breaker and allow the oven to cool completely
• Remove mounting screws, gently pull the element forward, and move wires one at a time to prevent them from slipping back into the cavity
• Avoid sharply bending the new element; ensure terminals are fully seated and connections are secure
• Reinstall hardware, restore power, and test Bake
