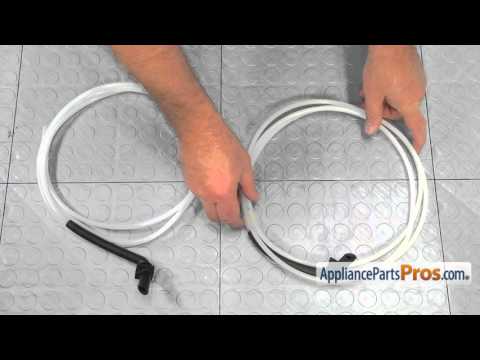

Whirlpool WP2256096 Ice Maker Water Supply Tube OEM Part

Replaced internal water supply line to ice maker and water reservoir line for door water dispenser. Parts arrived quickly and repair was a no-brainer thanks to the repair videos.

All this occurred after our utility had to cut off our water for 2-3 hours. We almost ordered a new ice maker, but thankfully someone had their repair story posted. Based on that story, we ordered a new ice maker supply line and a new water inlet valve for our Kitchen Aid refrigerator. After turning off the water to the refrigerator we noticed that the water supply line had almost burst right above the ice maker, so we thawed that out with a hair dryer, then replaced that line first. Removed the Ice Maker. Then we located the water inlet valve, removed the old one and replaced it with the new one only after watching the video on your site. Reinstalled the ice maker and turned the water back on, no problems since and ice maker is working like new.

Replaced ice maker water supply line.

Remove icemaker assembly,disconnect tube from valve on back of fridge, pull tube from inside of freezer to expose connection of rubber to plastic tubing, cutoff black rubber from end of split filler tube inside of freezer, tape with electric tape new plastic tube to old tube, pull old plastic from back of fridge until entire new tube was through to back of fridge, connect new tube to valve, done.

I pulled the old water line forwards out of the freezer a little ways. I then cut the black rubber end off and used duct tape to connect the new line to it. Then I pulled the old line out the back of the unit which pulled the new line into place.
