Whirlpool WPW10345285 Float Assembly (Overfill Protector) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WPW10345285 replaces AP6019972, W10345285, 1938003, PS11753283.

Description

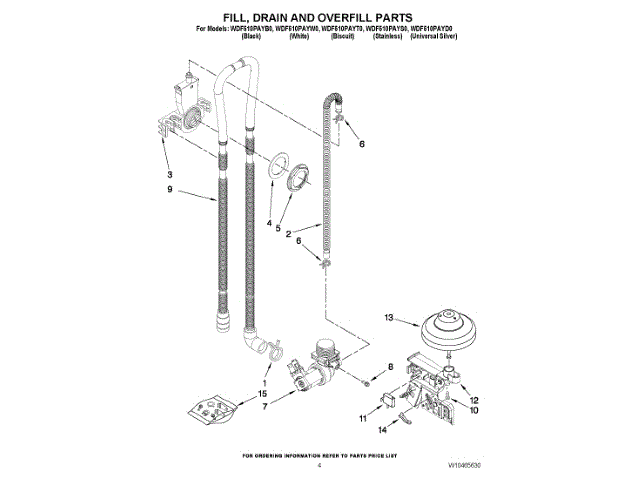

This float assembly sits in the dishwasher tub and rises with incoming water to signal the float switch to stop filling. Replacing a worn or sticking overfill protector restores proper water level control and helps prevent overfilling and leaks.

• Monitors water level by floating upward as the tub fills
• Triggers the float switch to shut off the inlet valve at the correct level
• Helps prevent overfilling and potential leaks
• Helps with: won't fill or stops filling early, water level too high, float sticks or is visibly damaged

What's included: 1 float assembly Install notes:

• Disconnect power and shut off the water supply before servicing.
• Remove the lower rack to access the float inside the tub.
• Lift the old float straight up; on some models a retainer under the tub must be released to remove it.
• Transfer any existing hardware if needed, install the new float, ensure free movement, then restore power and test for proper fill.
