Jeff R Colorado Springs , CO June 29, 2020 Appliance: Model KENMORE 596.72383411 Ice maker quit working. The tech sheet test 56 said the motor wouldn't return to zero. I ordered the "Ice Maker Assy-Lp, and the Valve Assy-Water Dual". On my particular model the ice maker is in the ceiling of the refrigerator box. After removing the water filter and two screws around the drop down water filter door, the right side panel drops down by pulling it apart from 3 plastic pop-ins. Two of them broke when the repair guy man handled it. Pulling easy and supporting the inside pieces is key. Then I unplugged the wiring and removed two screws on the ice maker panel on the ceiling of the left side. Then you just have to pull the unit towards the refrigerator opening. There are 4 L shaped slide ins that allow it to come forward and drop down. Then it is an easy swap out. The valve ended up not needing to be replaced. Read More... 18 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Nut Drivers, Screwdrivers

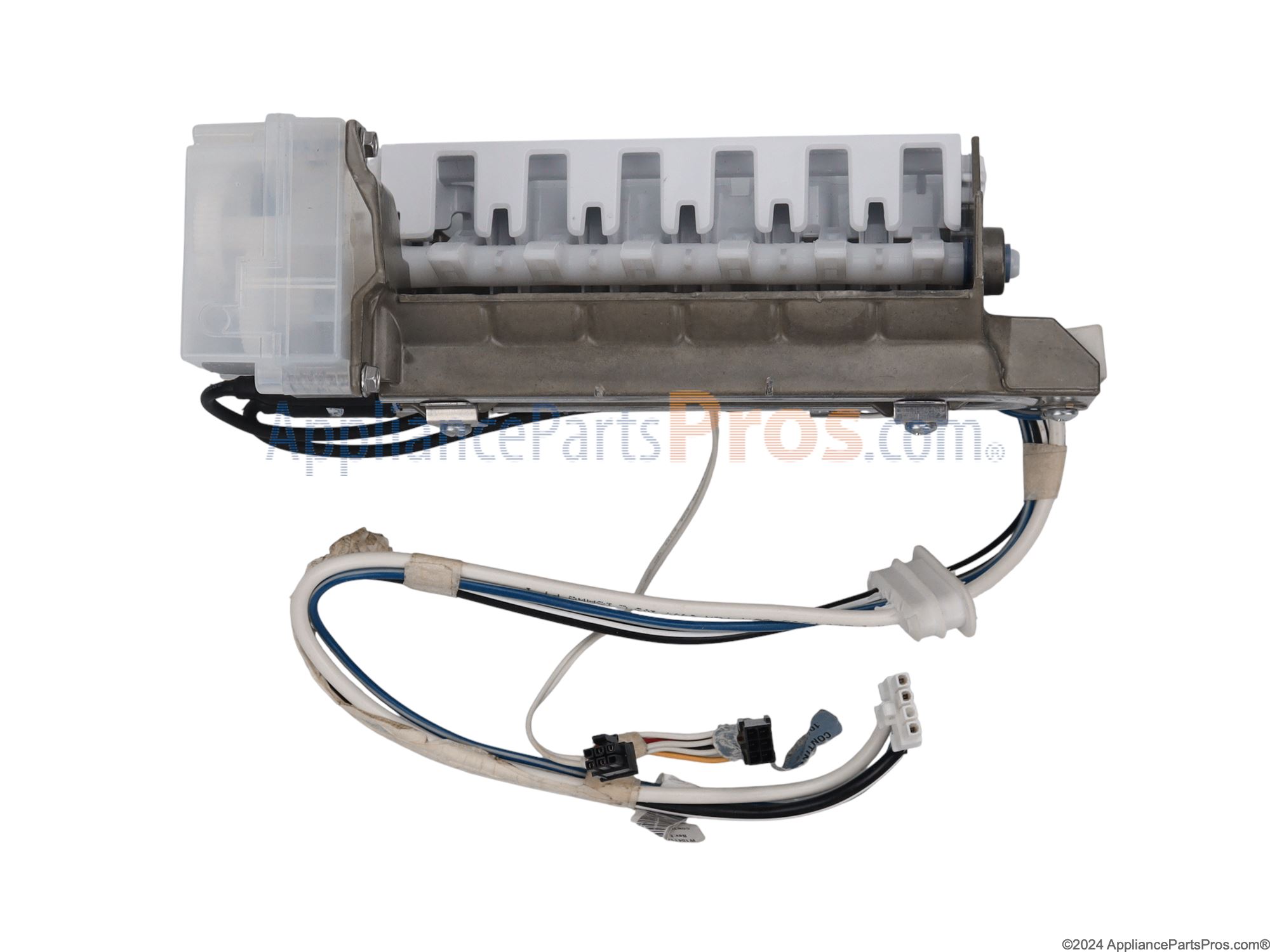

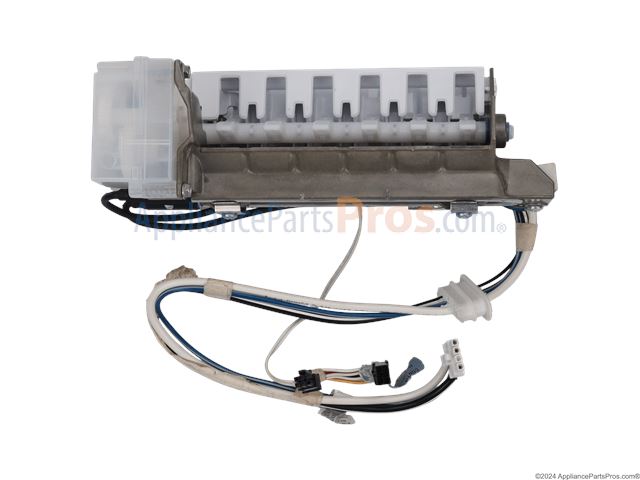

Curt B San Angelo , TX August 20, 2018 Appliance: KitchenAid Refrigerator KFIS29PBMS02 Ice maker assembly motor would not turn or harvest Ordered a new Ice Maker Assembly Unit and installed it. Now we have ice again. Read More... 7 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Nut Drivers, Screwdrivers
Samy B Pflugerville , TX September 03, 2019 The ice maker stopped making ice I replaced the ice maker Read More... 7 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Nut Drivers, Screwdrivers, Socket Set
Pat K Bend , OR September 18, 2021 Appliance: Whirlpool Refrigerator WRF736SDAM11 The ice maker leaking water from left side. error code e2 I ended up getting all new water valves and an Icemaker. I just figured that it would be better to change out the whole deal. My water pressure was 55 lbs so it was going to be the water valves or the ice maker. That’s why I didn’t want to change one just to take it all apart again. I had already changed out the water filter. The job was not too difficult it was all completed in 1 1/2 hours. I did watch some Youtube to get an idea of how to do the job. Read More... 1 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 1-2 hours Tools: Nut Drivers, Screwdrivers
Dominick M Selden , NY December 23, 2018 Ice maker Replaced it Read More... 1 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Nut Drivers
