Whirlpool 4386996A Dishwasher Impeller & Seal Kit OEM Part

Ordered the replacement pump seal kit from AppliancePartsPros. I watched the online how-to video on their website. The impeller was slightly stuck on the motor shaft due to age but overall was amazed at how easy it was to repair. Thanks AplianePartsPros!

I replaced the Impeller seal kit.

Replaced the seal along with the impeller seal kit, it went very well thanx to your very helpful video and timely service

With the exception of the chalk outline my wife drew on the floor indicating where the water was coming from, my experience was nearly identical to the other folks who commented on this repair. The most difficult part was unscrewing the plastic retainer above the impeller. Years of soap and or calcium deposits seemed to lock it in place. It eventually broke loose after applying slow steady pressure to the vanes in the plastic piece. The old impeller was another challenge. Had to destroy it to get it out as it was seized on the motor shaft. Note: if you need to do the same, be sure to vacuum any debris from the housing. Don't want anything to ruin the new seals! Realistically it took about an hour and a half to diagnose the problem, watch the excellent video, disassemble the pump and order the parts. Parts were ordered on a Saturday, arrived on Tuesday.Within a half hour everything was back together and working fine. (for a 20+ year old Dishwasher)

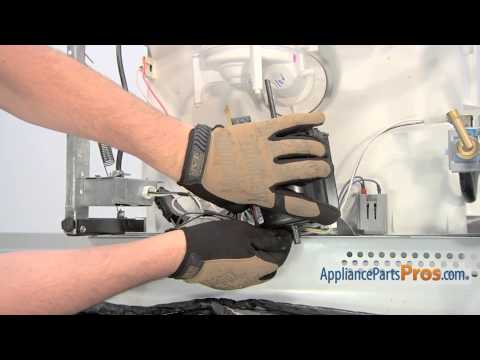

The video that was underneath the impeller/seal kit that I ordered showed exactly what I needed to do. Note: if you find a spring under the impeller during disassembly do not put it back in with the new kit parts. That old spring came from inside the old impeller seal. The new part has the same spring already inside of it. Also, the video doesn't show it, but you need to disconnect the drain hose from the attachment under your sink, next to your faucet, in order to pull the dishwasher out.
