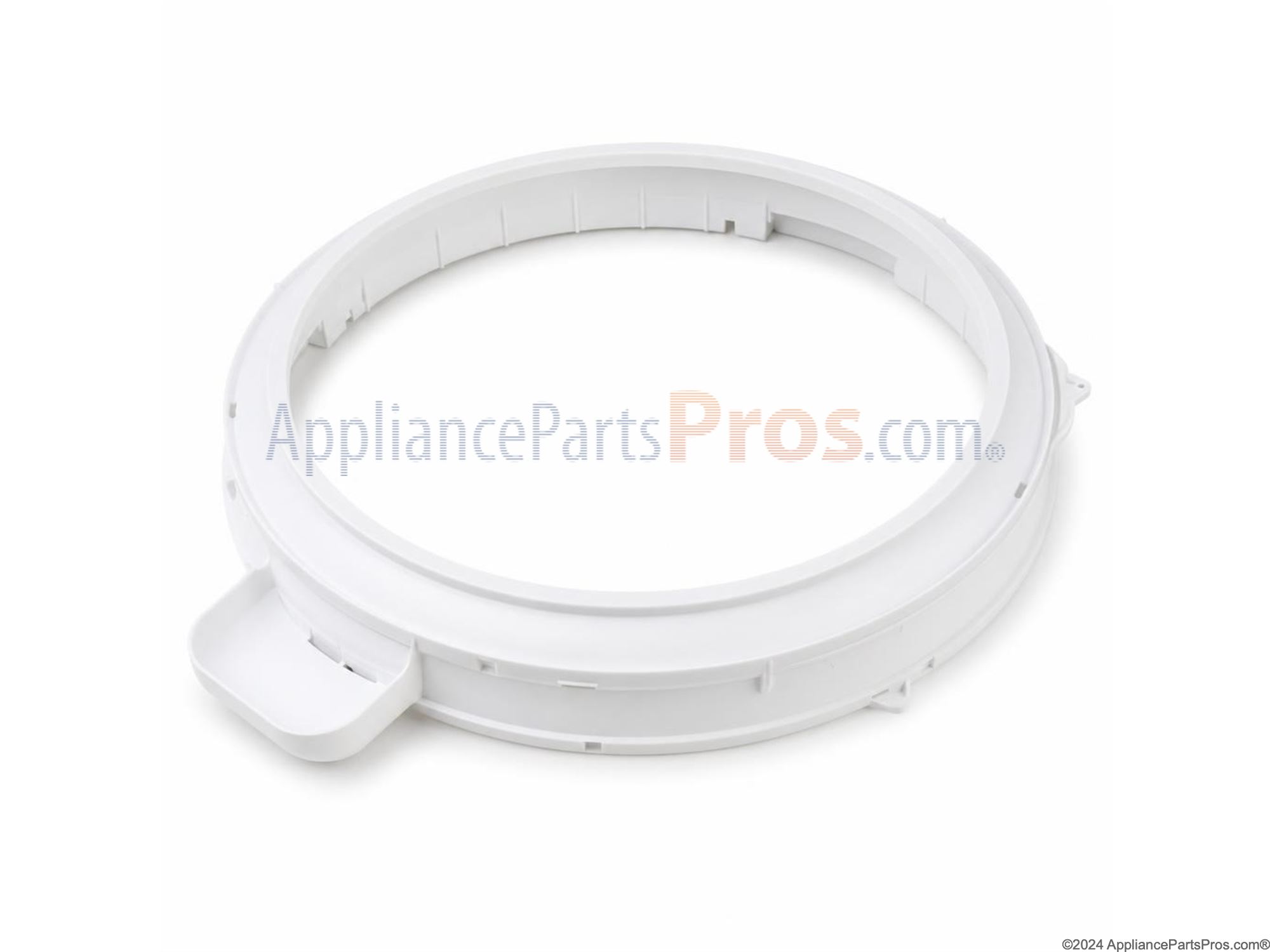

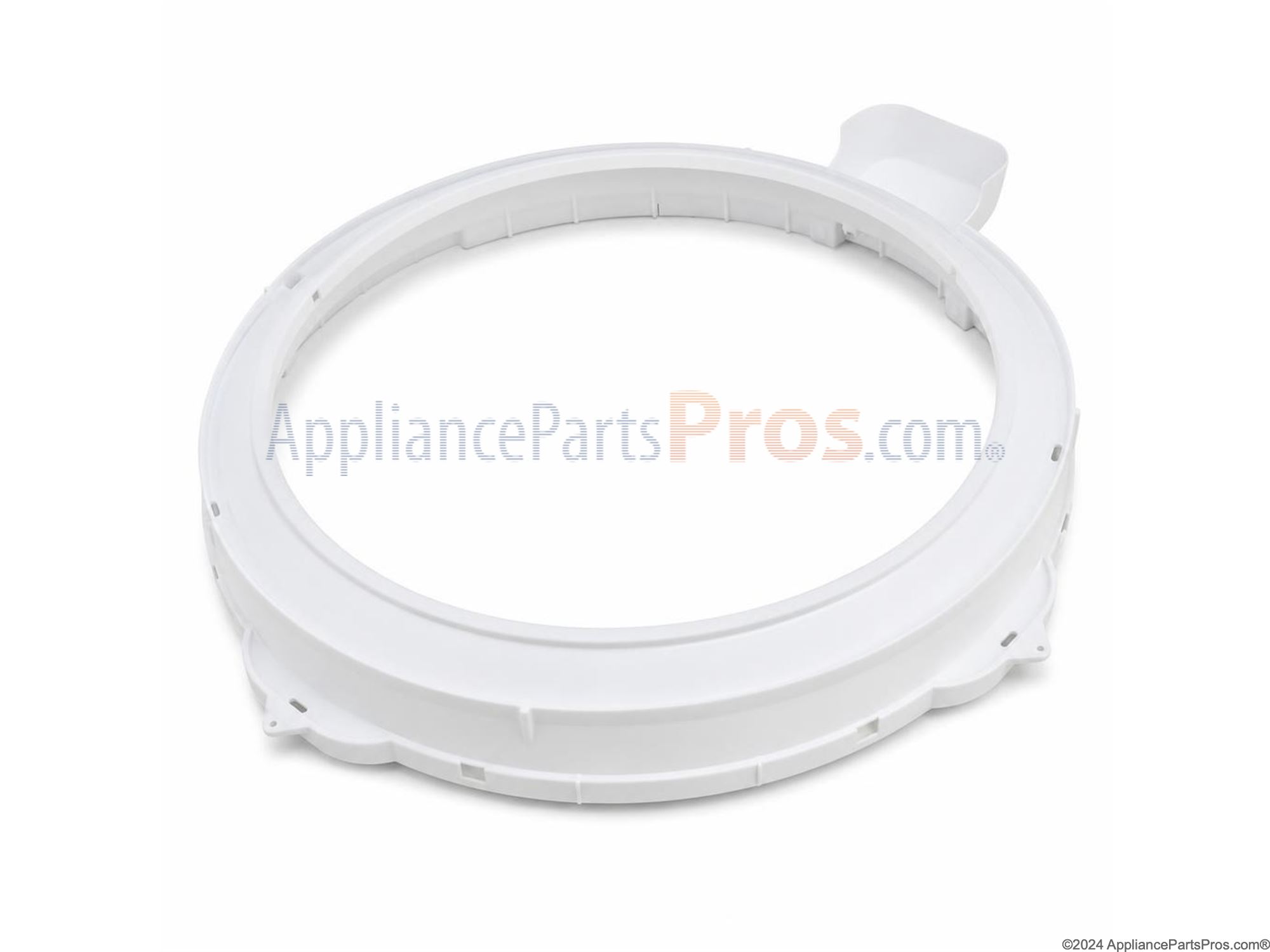

Whirlpool WPW10531289 Tub Ring (Splash Guard) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WPW10531289 replaces AP6022692, 3021381, PS11756029, W10531289.

Description

This tub ring mounts at the top of the outer tub to contain splashes and suds during agitation and spin, helping prevent over-the-rim leaks. Replace a cracked or broken ring to restore proper water containment and fit.

• Acts as the upper splash shield for the outer tub
• Helps keep wash water and suds from escaping during operation
• Secures with locking tabs for a tight, even fit around the tub opening
• Typical signs of failure: cracks, broken/missing tabs, water or suds at the top of the tub

What's included: 1 tub ring Install notes:

• Disconnect power and water; wear gloves and eye protection
• Lift or remove the top/console to access the tub opening
• Release retaining clips/tabs, remove the old ring, and clean the tub rim
• Align and snap the new ring evenly into place; confirm all tabs are fully seated before reassembly
