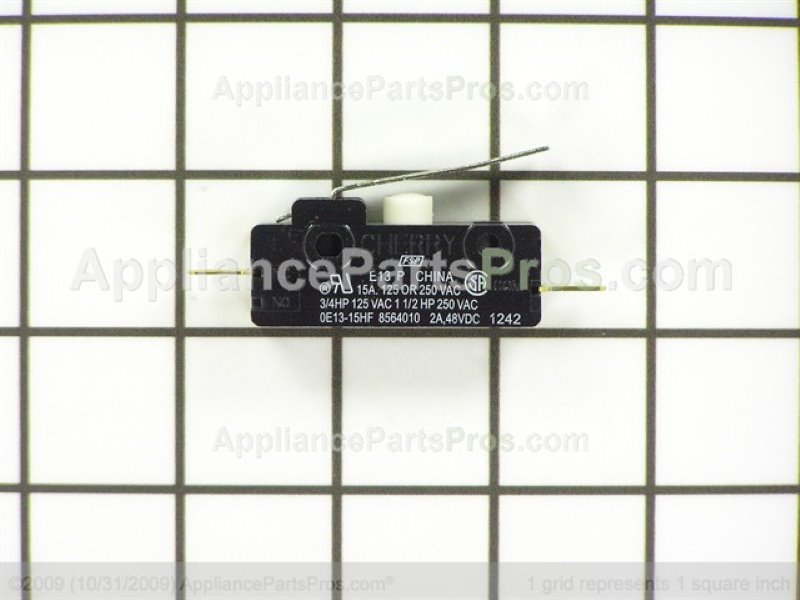

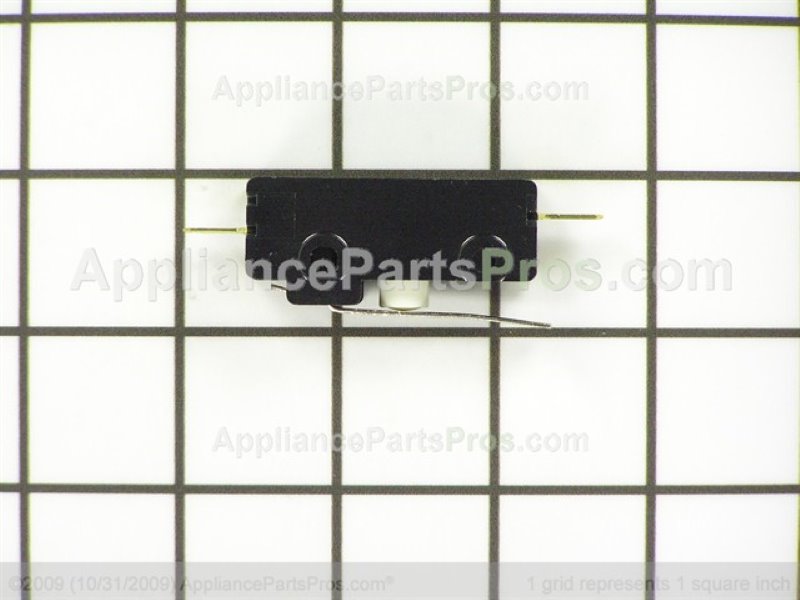

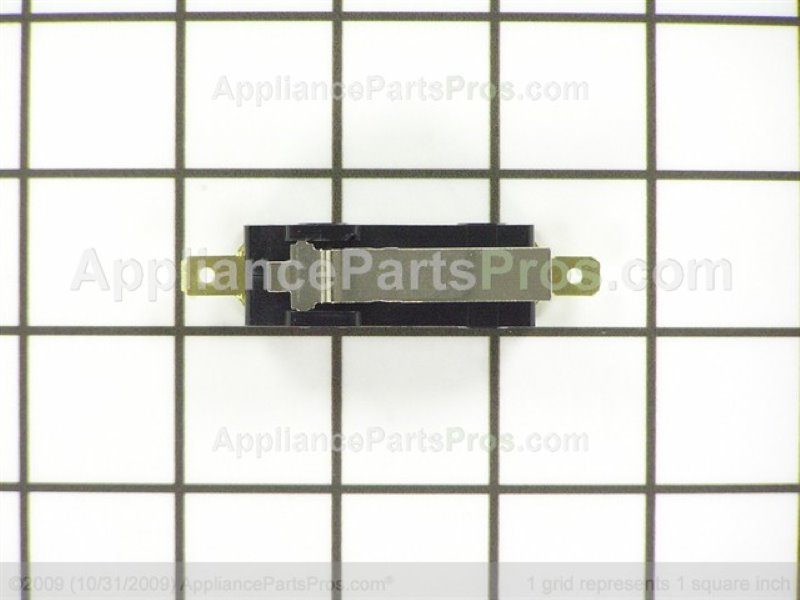

Whirlpool WP8564010 Switch Actuator Assembly OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WP8564010 replaces AP6013311, 8564010, 4438584, PS11746537.

Description

This switch actuator assembly transfers motion to a microswitch so the appliance can sense a required condition and operate safely. If the actuator wears or breaks, the switch may not engage, causing no-start or intermittent operation. What it does:

• Presses the corresponding microswitch at the correct point in the mechanism's travel
• Signals the control that a required condition is met
• Helps prevent operation when the mechanism isn't in the correct position
• Common symptoms of a failed actuator: won't start, starts and stops intermittently, or requires pressure on a handle/lever to run

What's included:

• 1 switch actuator assembly

Install notes:

• Disconnect power to the appliance; if applicable, shut off gas
• Access the switch area; note the actuator's orientation before removal
• Transfer any screws/clips from the old part as needed; avoid bending the lever or over-tightening hardware
• After reassembly, test operation before fully closing panels
