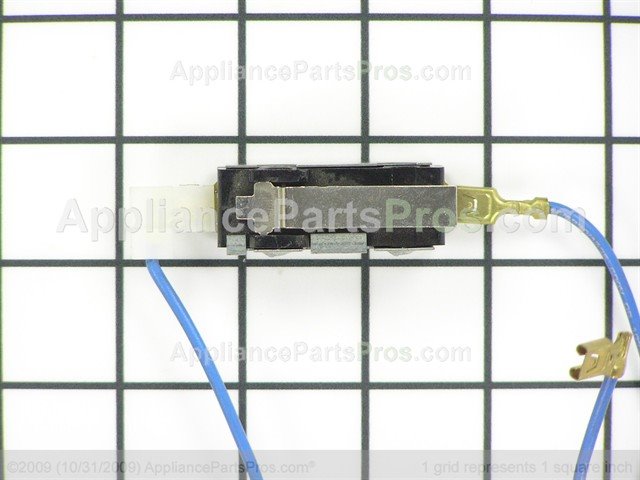

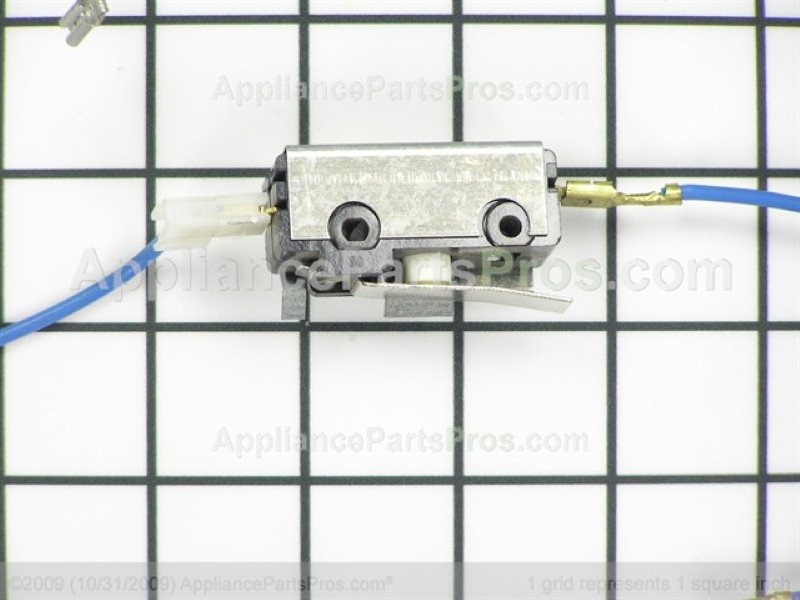

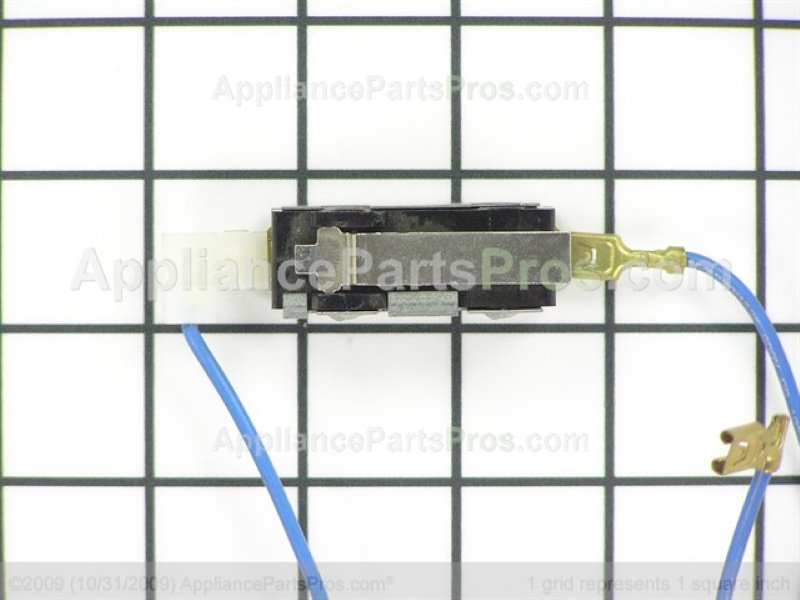

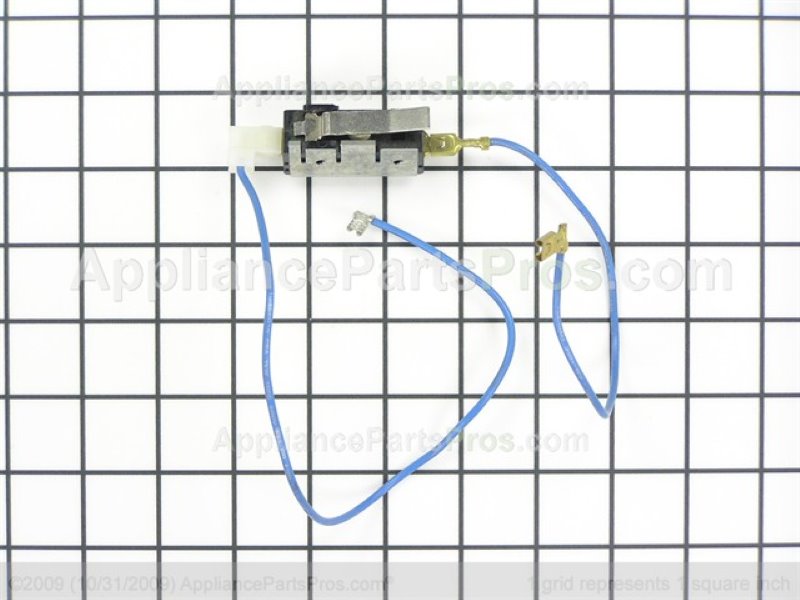

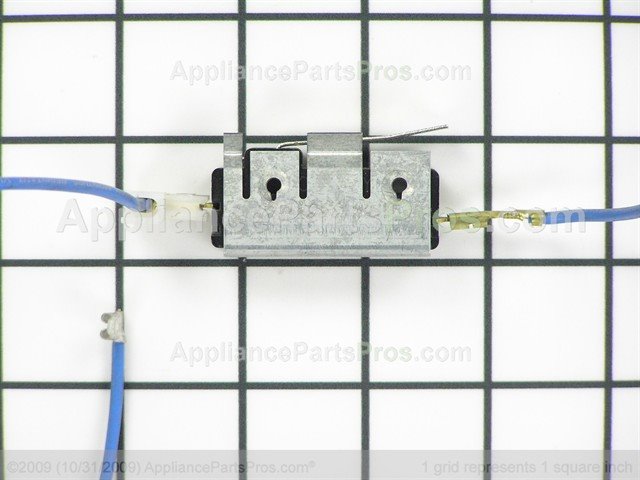

Whirlpool WP8564012 Switch Assembly OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WP8564012 replaces AP6013312, 8564012, 4438585, PS11746538.

Description

This replacement switch assembly restores reliable on/off signaling inside the appliance. When actuated by its lever, cam, or latch, it opens or closes the circuit so the control can start, stop, or confirm a function.

• Opens/closes an electrical circuit when actuated by the appliance mechanism
• Common fix for won't start, intermittent operation, or stopping mid-cycle
• Helps ensure the control receives a consistent "on" or "closed" signal

What's included: One switch assembly Installation notes:

• Disconnect power before servicing
• Access the switch location and take photos to note wire positions
• Transfer wires to the new assembly one at a time and secure the assembly so the actuator aligns properly
• Test for proper actuation/continuity before reassembling panels
