Product Details
Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
See all items in Washer Control Board.
Whirlpool also makes various appliance models for Sears / Kenmore.
Cross Reference Information
Part Number 21001362 replaces AP4024875, 436709, AH2017797, EA2017797, PS2017797.
Description
This timer is the electromechanical control that sequences wash/dry cycles and timed functions. It replaces a failed cycle timer so the appliance can advance through settings and control timed operations reliably. What it does:
- Rotates through timed cycles and engages switch contacts to power motors, heaters, and valves in sequence
- Restores timed control when the original timer fails to advance or get stuck
- Common symptom: appliance does not advance through cycles or stays on a single cycle
- Common symptom: selector changes have no effect or certain functions do not receive power
What's included: One timer assembly. Install notes:
- Disconnect power to the appliance before starting any repair to avoid shock
- Handle electrical connectors gently and note wire locations or take a photo before disconnecting

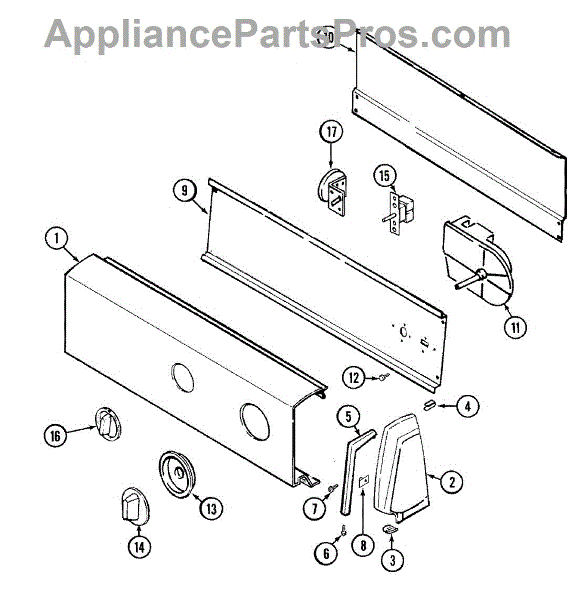

- Verify this part number matches the service diagram for your exact model before installation
