Whirlpool WP2310139 Transformer Assembly (Control Transformer) OEM Part

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WP2310139 replaces AP6007199, 2310139, 1199550, PS11740309.

Description

This transformer assembly provides the low-voltage power supply needed by the appliance's control system so the control board and user interface receive stable operating voltage. It restores proper control and display function when the transformer fails. What it does:

• Converts incoming line voltage to the low-voltage supply used by the control board and user interface.
• Helps the electronic control power up so cycle selection, lights and display operate correctly.
• Commonly replaced when the appliance shows no display, no response from controls, or intermittent control operation.

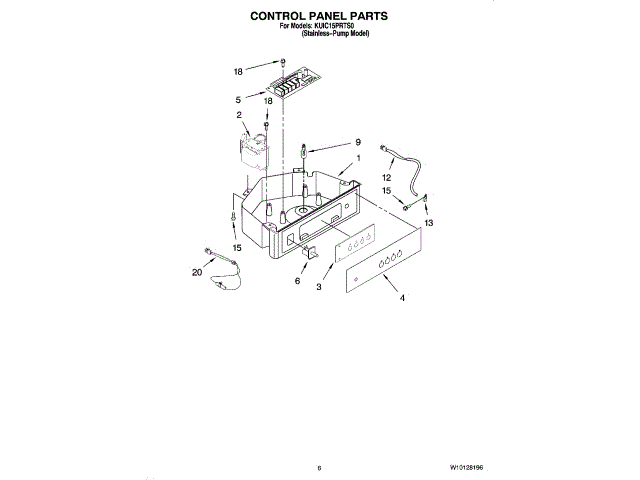

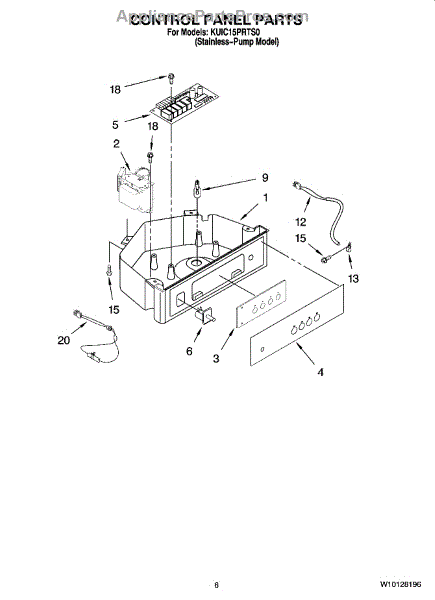

• Fits into the control module area and connects to the control board and power wiring.

What's included:

• One transformer assembly as pictured and specified by the manufacturer.

Install notes:

• Disconnect all power to the appliance before servicing to avoid electrical shock.
• Handle wiring carefully; note or photograph connector locations before removal for correct reassembly.
• Replacement may require access to the control panel or console.
• Use only the exact part number replacement; do not attempt to modify or bypass the transformer.
