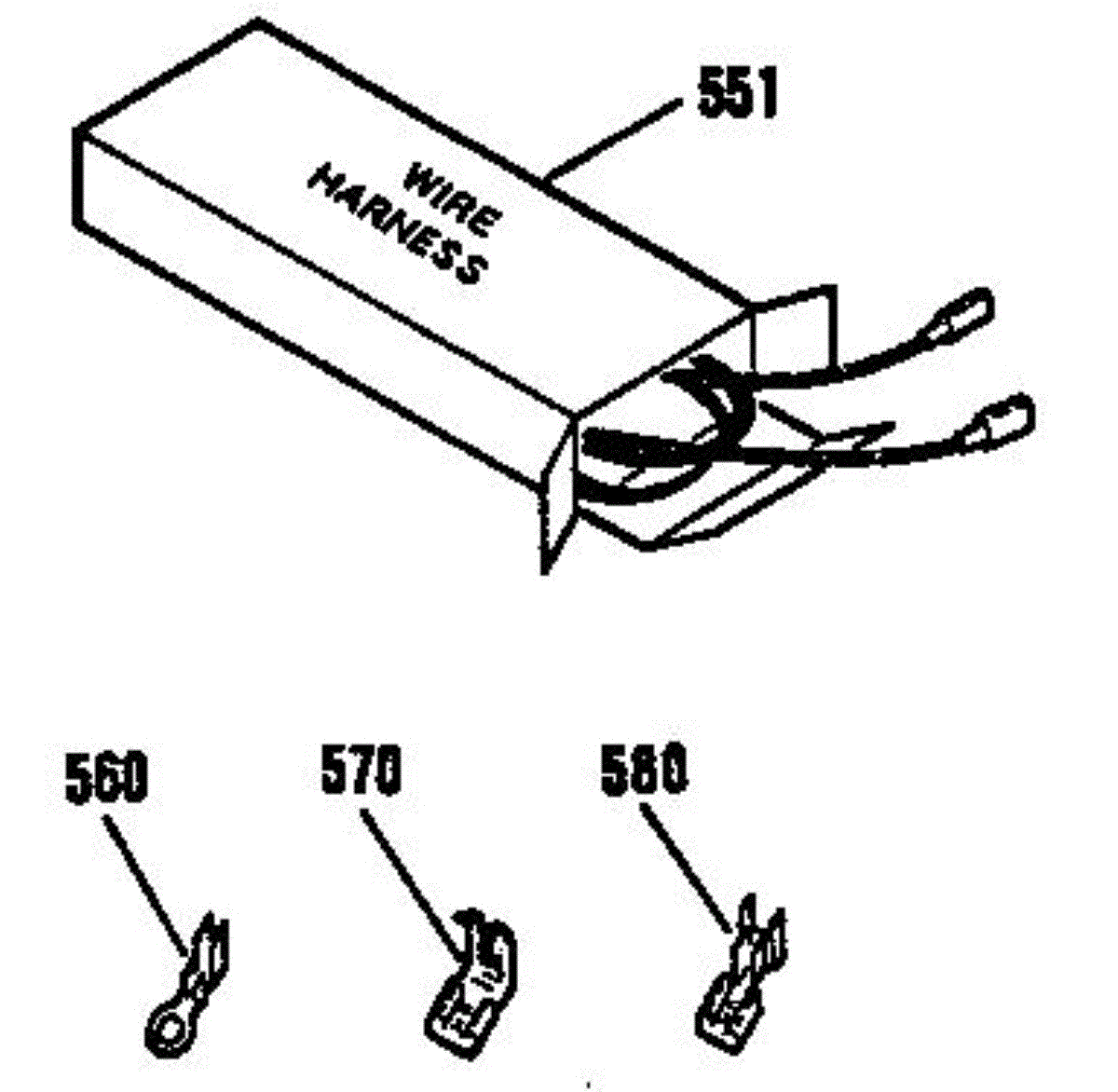

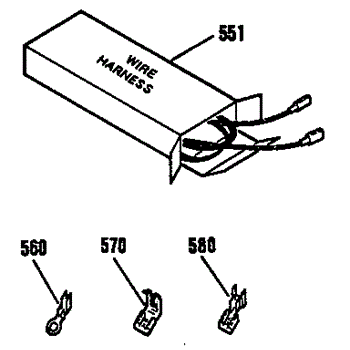

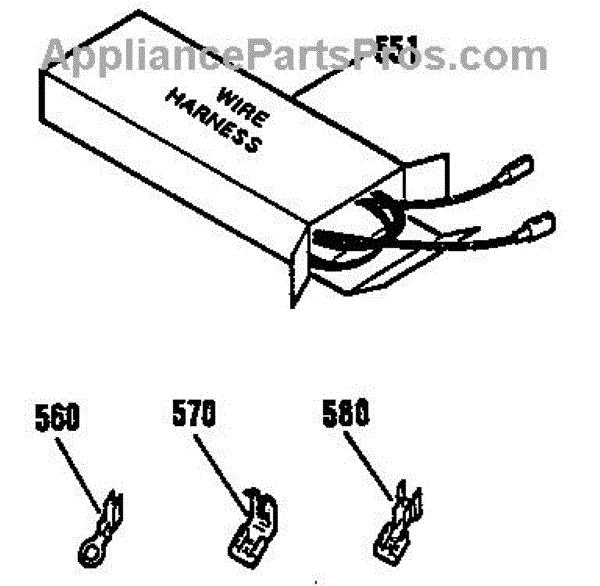

Parts for Kenmore 911.4742593 (9114742593, 911 4742593): Wire Harness And Components Parts

This wire harness connects the oven door lock motor to the appliance wiring, restoring electrical continuity for reliable door latch operation. It's a direct-fit replacement that helps resolve intermittent or failed lock motor function. What it does:

• Routes power and signal between the control board and the door lock motor so the latch can engage and release.
• Commonly used when a door won't lock, unlock, or shows intermittent lock operation.
• Replaces damaged, frayed, or burned wiring that can interrupt lock motor function.
• Helps restore proper oven or range door locking during self-clean or cook cycles.

• One lock motor wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Inspect connector ends and routing; replace only if the harness matches the original and connectors seat fully.
• Some models require partial disassembly of the door or console to access the lock motor; follow the OEM service instructions.

This printed user manual provides the original manufacturer's operating, safety, and care instructions so you can use your appliance correctly and keep it running safely. Easy-reference guidance for normal use and basic troubleshooting. What it does:

• Explains controls, settings and normal operation in plain language
• Lists safety warnings and recommended care to reduce risk of damage or injury
• Covers basic troubleshooting steps to identify common user-level issues
• Includes maintenance tips to help extend the appliance's usable life

• No tools required; keep the manual nearby for reference during setup and use
• Read safety and warning sections before operating the appliance
• Do not discard — the manual contains important model-specific information and care instructions
• For service or parts replacement, refer to your appliance's model and serial number when contacting support
