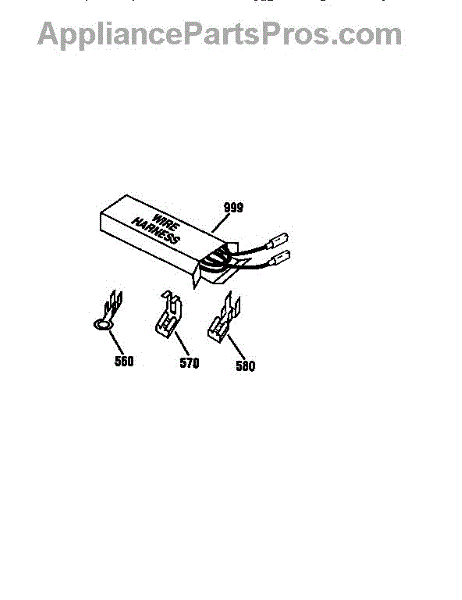

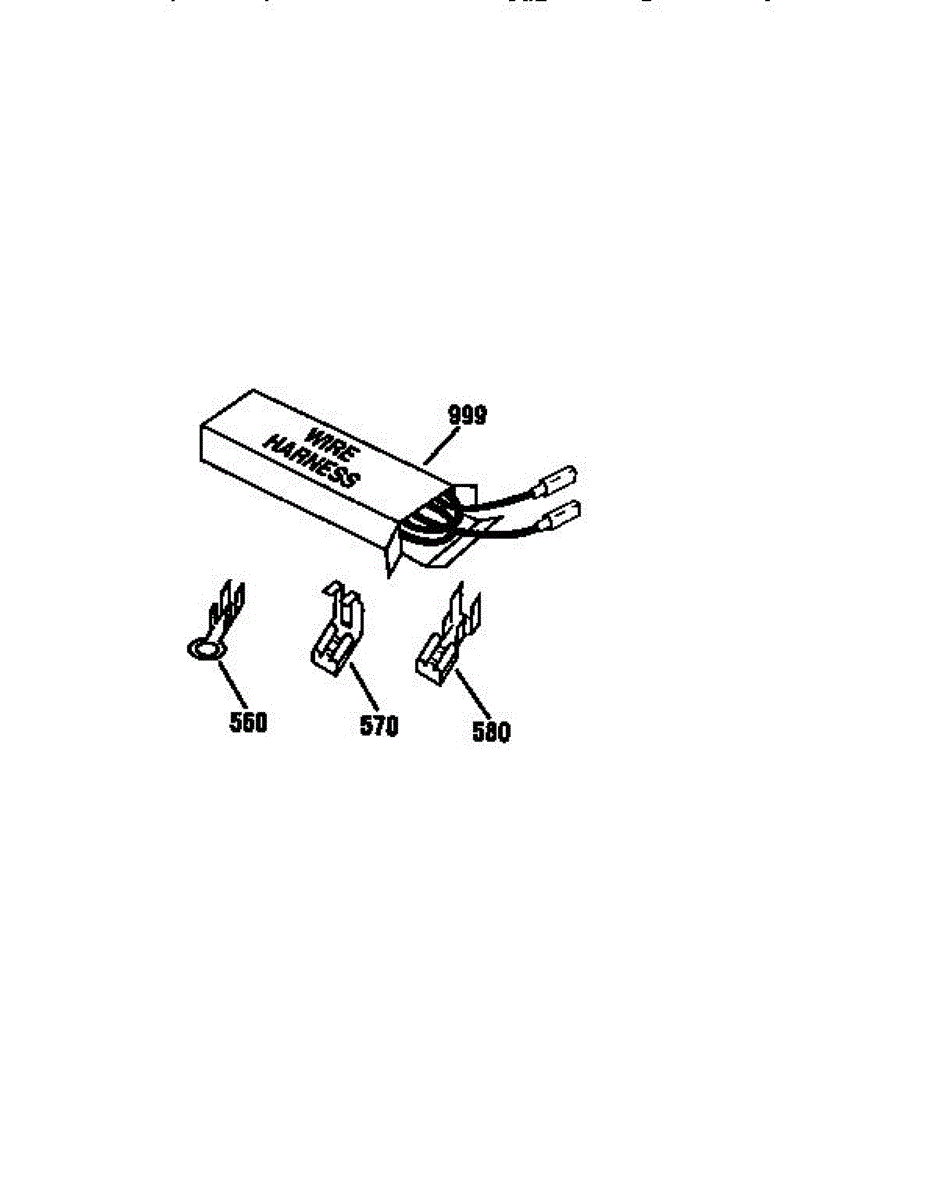

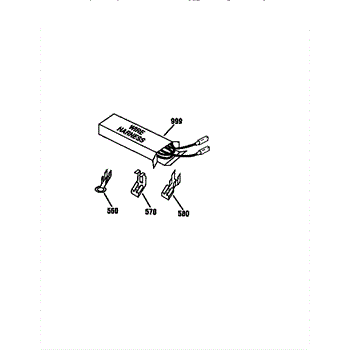

Parts for Kenmore 911.48469690 (91148469690, 911 48469690): Wire Harness And Components Parts

This main wire harness routes power and signals between the refrigerator's control components, enabling lights, compressor, dispenser and defrost systems to operate reliably. Replaces a worn or damaged harness to restore electrical connectivity. What it does:

• Delivers power and signal connections between control board, compressor, lights, and other internal components
• Restores lost or intermittent operation caused by frayed wires, broken connector tabs, or damaged insulation
• Helps stop issues like no lights, intermittent cooling, or non-functioning ice/water features when caused by harness faults
• Maintains proper routing and strain relief to prevent shorts and connector stress

• One main wire harness

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the harness
• Compare the harness and connector orientation to the original; tag or photograph wires before removal for correct reassembly
• Route wires along original clips and channels; secure connectors fully until they click
• If harness damage affected other components, inspect adjacent wiring, connectors, and the control board.
