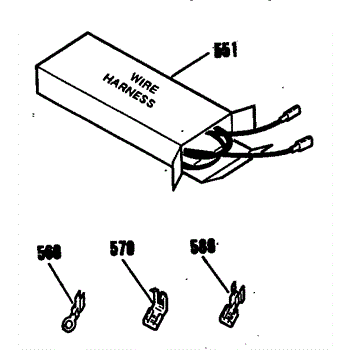

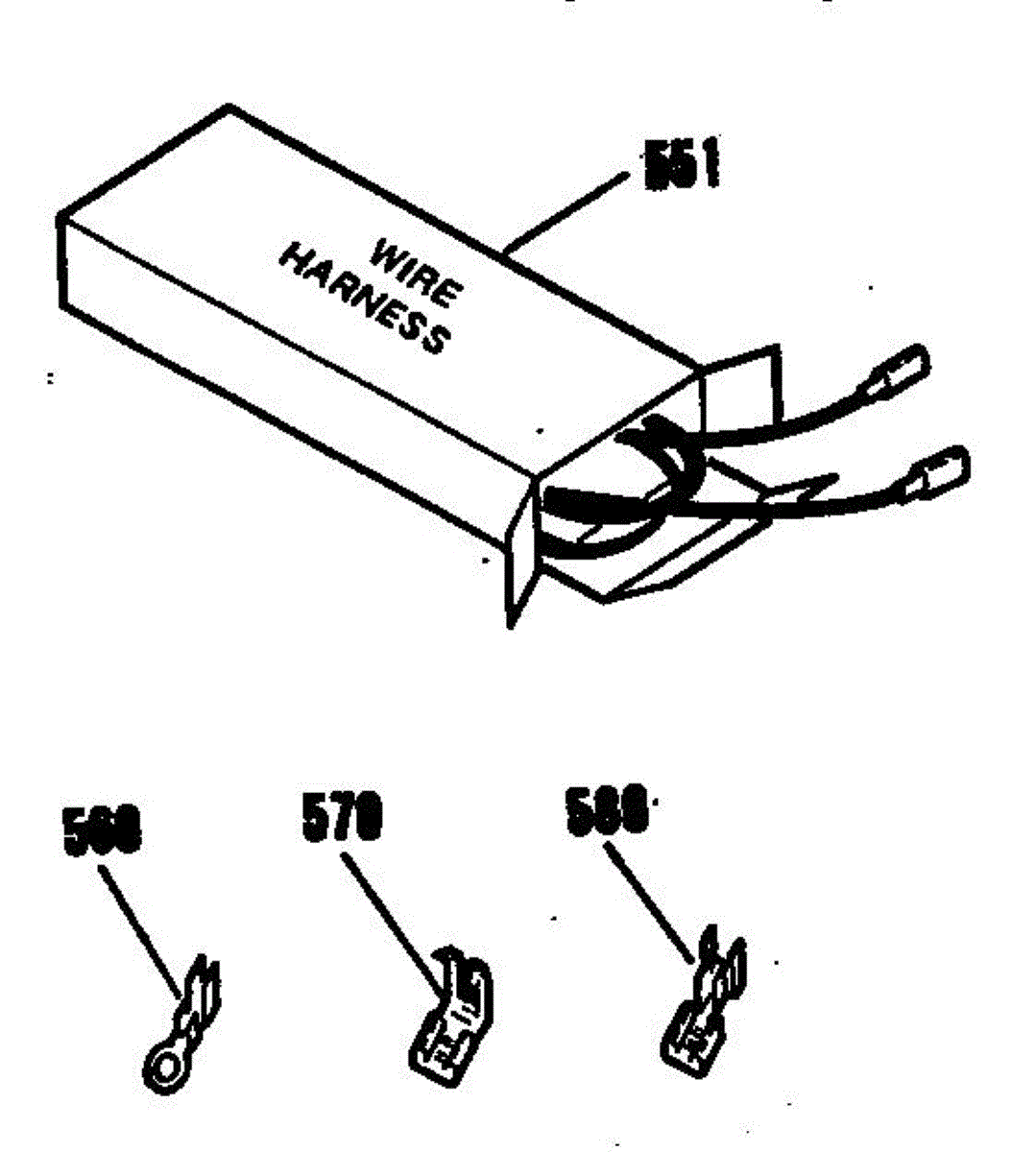

Parts for Kenmore 911.4803591 (9114803591, 911 4803591): Wire Harness Parts

This wire harness connects the oven door lock motor to the appliance wiring, restoring electrical continuity for reliable door latch operation. It's a direct-fit replacement that helps resolve intermittent or failed lock motor function. What it does:

• Routes power and signal between the control board and the door lock motor so the latch can engage and release.
• Commonly used when a door won't lock, unlock, or shows intermittent lock operation.
• Replaces damaged, frayed, or burned wiring that can interrupt lock motor function.
• Helps restore proper oven or range door locking during self-clean or cook cycles.

• One lock motor wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Inspect connector ends and routing; replace only if the harness matches the original and connectors seat fully.
• Some models require partial disassembly of the door or console to access the lock motor; follow the OEM service instructions.

This printed user manual provides the manufacturer's operating, safety and maintenance guidance so you can use and care for your appliance correctly. Clear instructions help prevent damage and support safe, reliable operation. What it does:

• Describes appliance controls, features and normal operation in plain English
• Lists safety warnings and proper handling to reduce risk of injury or damage
• Covers routine cleaning and maintenance recommendations to help extend service life
• Offers troubleshooting steps for common issues and guidance before calling service

• Read safety warnings completely before operating the appliance
• Keep this manual near the appliance for quick reference and share with other users
• Refer to model-specific labels and serial plate for service information and replacement parts
• For repairs beyond basic troubleshooting, follow manufacturer guidance.
