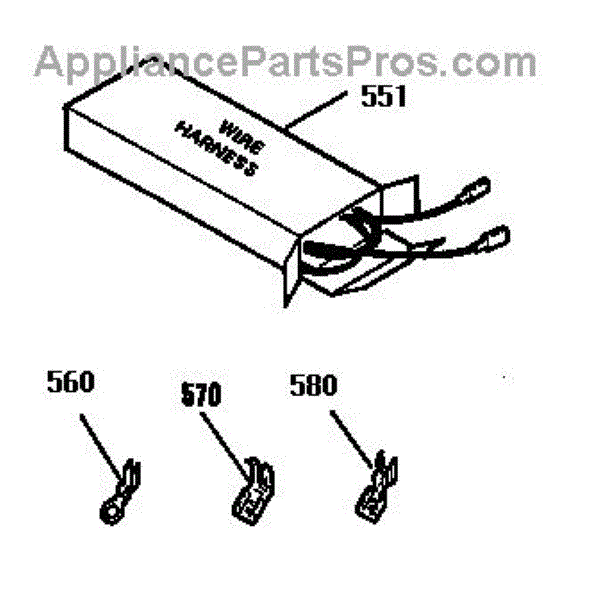

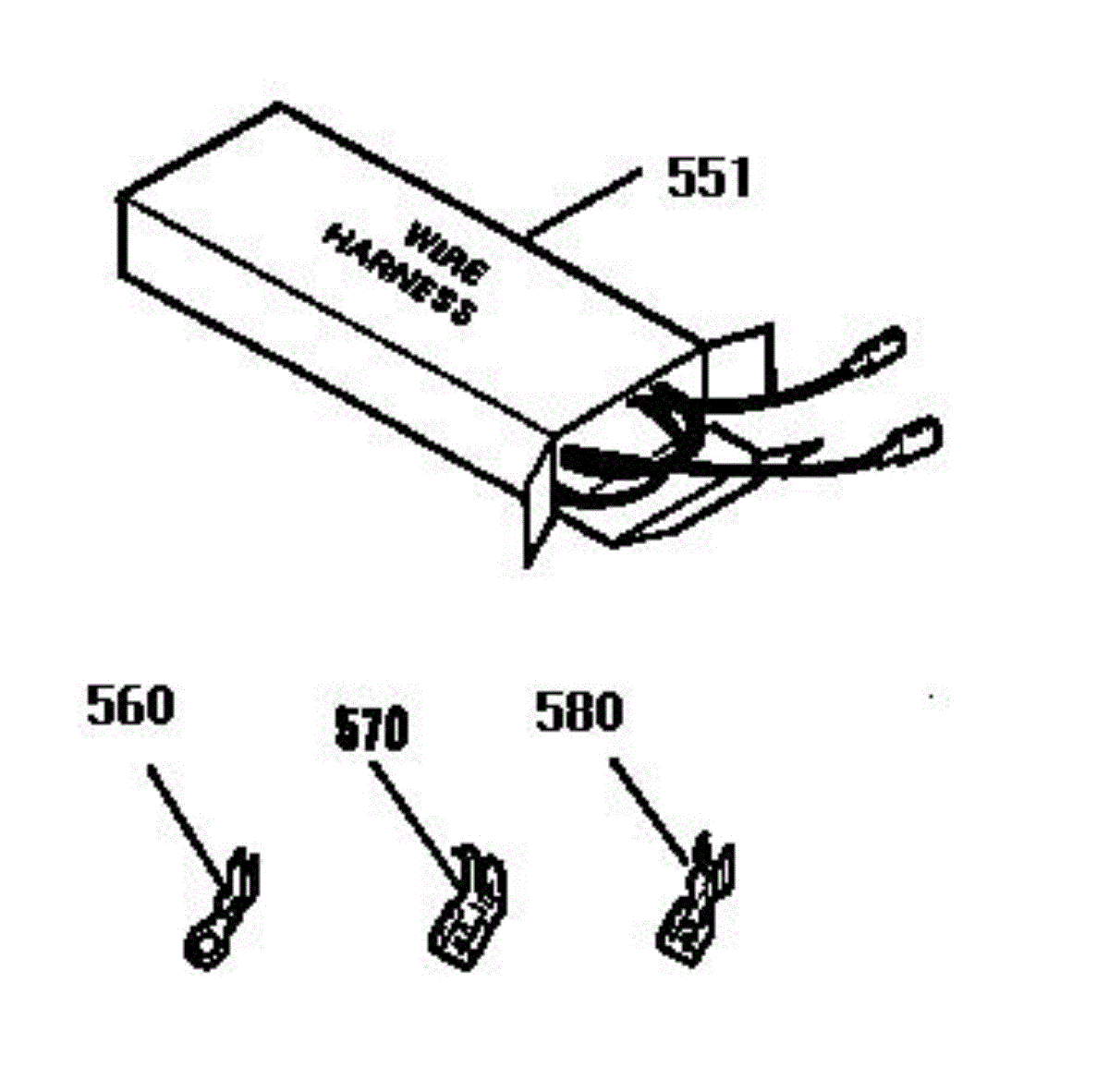

Parts for Kenmore 911.9384691 (9119384691, 911 9384691): Wire Harness Parts

This wire harness connects the appliance's door lock switch to the main control, restoring the electrical connection needed for the lock/switch to communicate with the control board. Replaces a damaged or frayed lock-switch lead for reliable operation. What it does

• Provides the electrical path between the door lock/latch switch and the control board.
• Restores proper signaling when a worn or broken harness causes lock faults or prevents cycle start.
• Helps stop intermittent door-lock errors caused by corroded or broken wires or terminals.
• Used when the door will not lock, the unit won't start, or the control reports a lock/switch fault.

• One lock switch wire harness.

• Disconnect power to the appliance before starting any repairs.
• Verify connectors match and seat fully; replace any damaged terminals or housings.
• Handle the lock assembly and connectors gently to avoid damaging the door latch or harness.
