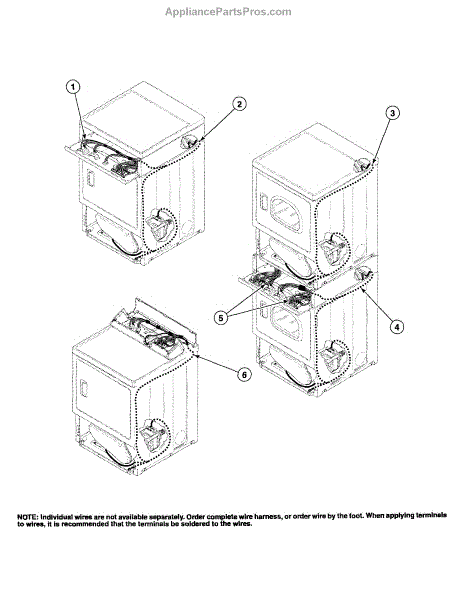

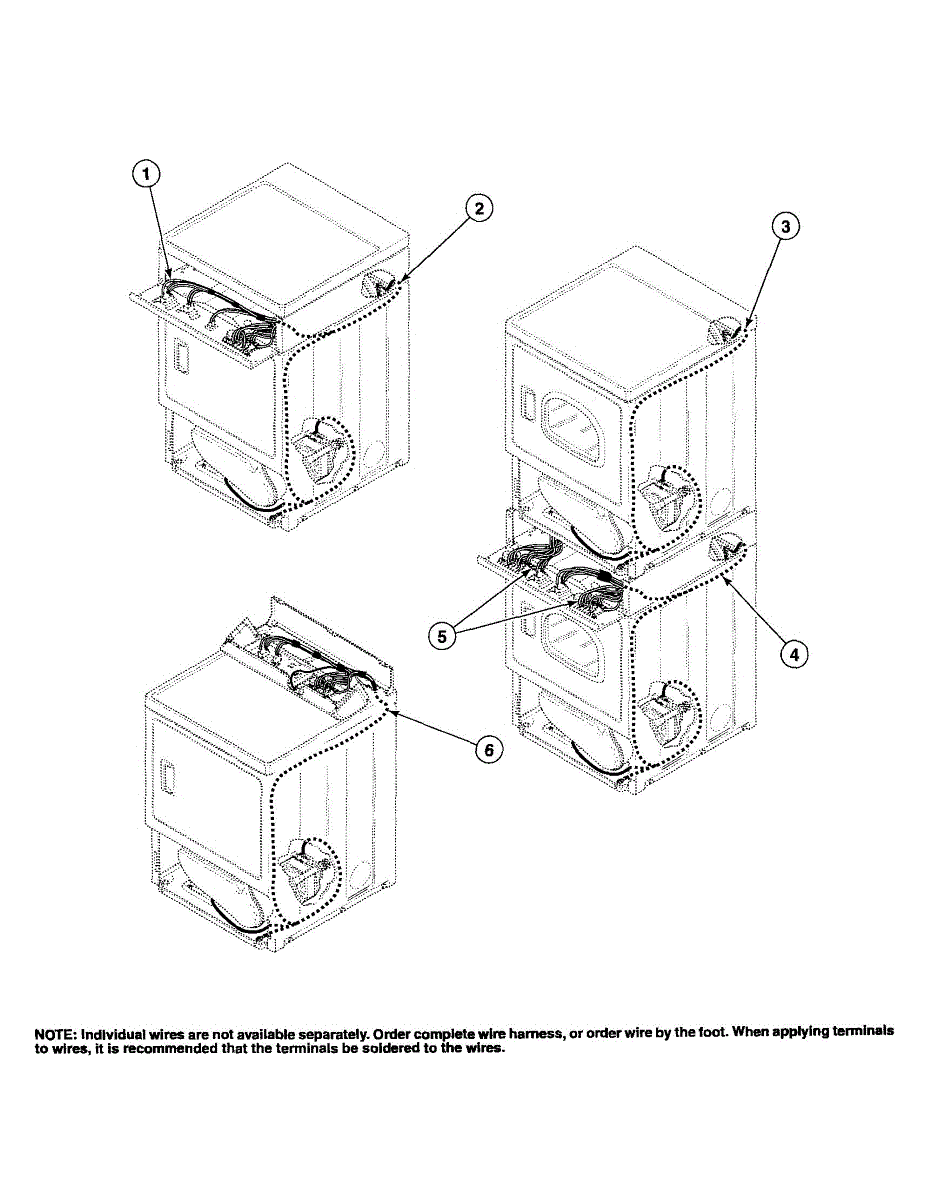

Parts for Speed Queen AGS20AWF: Wire Harnesses / Wires Parts

This wiring harness assembly routes power and control signals between the washer's control board and key components, restoring reliable electrical connections and helping resolve intermittent or no-power issues. What it does:

• Connects the control board to motors, switches, sensors and selectors for proper operation
• Delivers power and signal paths so cycles, displays and indicators function correctly
• Replaces damaged or corroded wiring to stop intermittent faults, failures to start, or unresponsive controls
• Prevents shorting from frayed insulation or loose terminals when properly installed

• Disconnect all power before servicing and verify the appliance is de-energized.
• Take reference photos of existing routing and connector locations before removal for correct reinstallation.
• Route harness along original clips and tie points; avoid contact with moving parts and sharp edges.
• Ensure all connectors are fully seated and secure; replace any damaged retainers or insulation.

This electrical cable connects various components to the washer's main control system, running through the cabinet to secondary components. Replace it when electrical functions fail intermittently, the washer doesn't respond to controls, or you notice burned or damaged wiring.

The Wiring Harness is an OEM part for SpeedQueen dryers. The wiring harness is a network of wires that connect the dryer's electrical components, such as the temperature sensor, door switch, drum motor, and heating element. It allows these components to communicate and function together as the dryer operates.

Causes of a bad wiring harness can be wear and tear over time, cuts or abrasions to the wires from repeated movement in the dryer cavity, or wire fatigue from constant electrical current.

Symptoms of a bad wiring harness include:

• Intermittent or unreliable operation
• Certain components not functioning properly
• Error codes displaying or cycles ending prematurely
• Loose, damaged, or cracked wires
