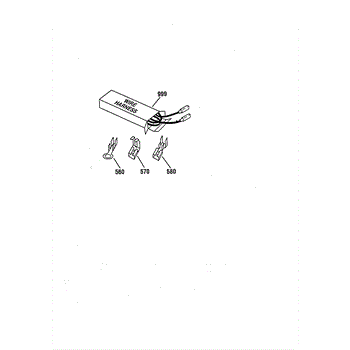

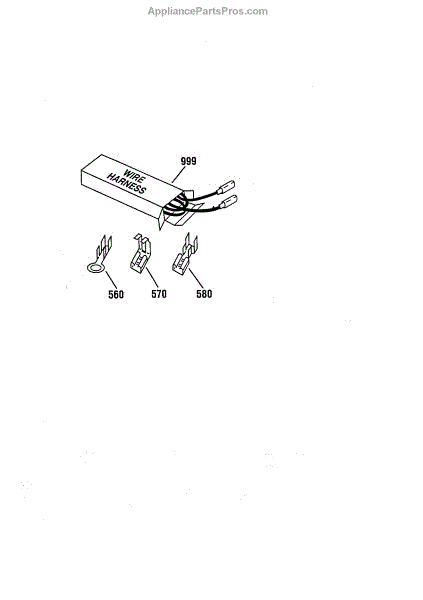

Parts for Kenmore 911.48489991 (91148489991, 911 48489991): Wire Harnesses / Wiring Components Parts

This lock motor wire harness connects the door lock motor to the appliance wiring, restoring reliable power and signal to the lock assembly. It helps resolve wiring failures that prevent the door from locking or the unit from starting. What it does:

• Carries power and control signals between the control board and the lock motor
• Restores operation when damaged or frayed wires cause intermittent or no lock engagement
• Can stop related symptoms like the door not locking, cycle not starting, or lock-related error codes
• Matches OEM wiring configuration for a direct replacement

• Disconnect power (unplug or shut off breaker) before inspecting or replacing wiring
• Handle connectors by the plastic housings; avoid pulling on wires
• Route and secure the harness to prevent chafing or pinching when reassembling panels
