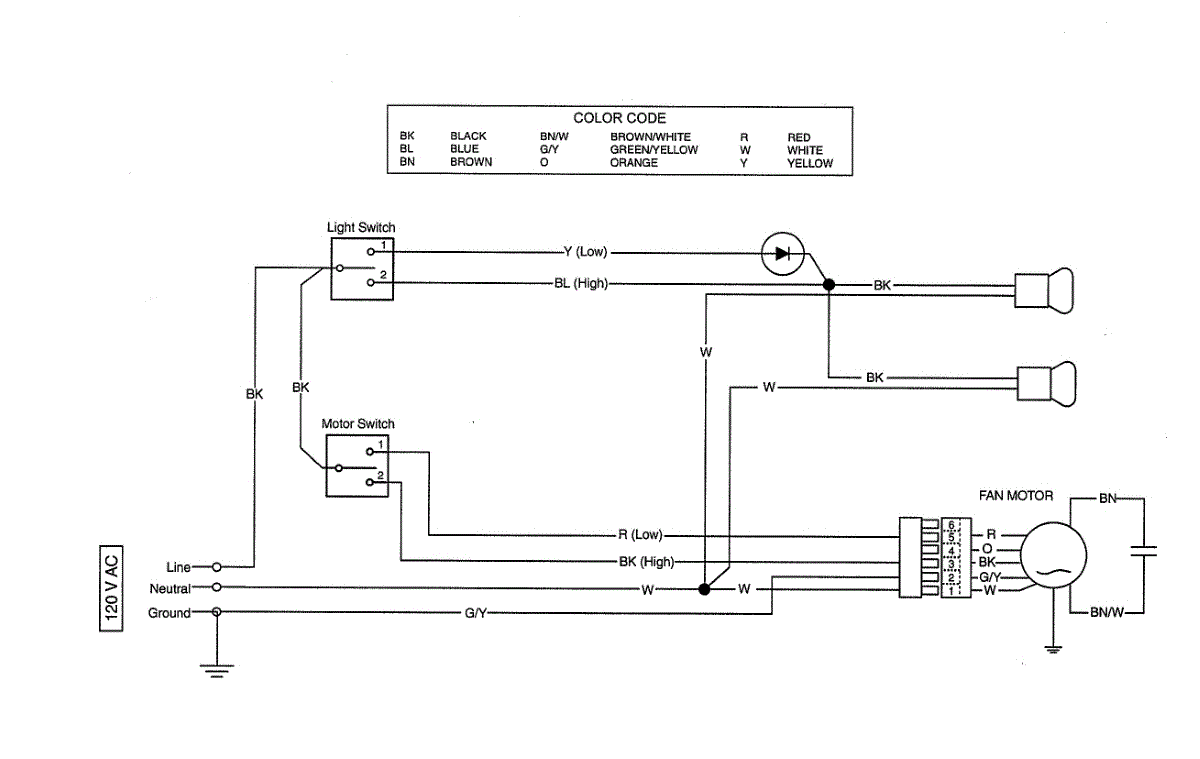

Parts for Broan BCSD136BC: Wiring Diagram Parts

Wiring cover for range hood electrical junction box. Replaces cracked, broken, or missing covers that expose internal wiring connections. Installs over wiring compartment.

Charcoal filter traps cooking odors and grease in recirculating range hoods. Replace every 3-6 months for optimal air quality. Verify compatibility.

This LED light bulb restores bright, dependable lighting in your range hood so you can clearly see the cooktop while cooking. It replaces the original lamp specified by the manufacturer for models that call for this part number. What it does:

• Provides task lighting from the hood's light socket
• Replaces a bulb that is burnt out, dim, or flickering
• Helps maintain clear visibility over the cooking surface
• Common symptoms include the light not turning on or intermittent operation

• LED light bulb

• Disconnect power to the hood at the breaker before servicing
• Allow the lamp to cool completely before handling
• Access the light from the underside; remove any lens or retaining ring as designed
• Remove the old bulb, seat the new bulb fully, and test before reinstalling the lens/trim

Mounting brackets, screws, and hardware to secure your range hood and complete duct connections. Replace missing or damaged installation components.
