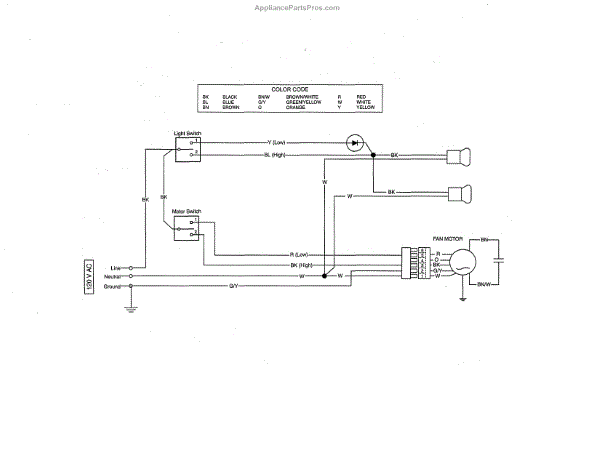

Parts for Broan BKSA130BL: Wiring Diagram Parts

This non-ducted replacement filter restores recirculating ventilation by trapping cooking particulates and helping reduce kitchen odors when your hood can't vent outside. A simple maintenance part that keeps recirculating range hoods working as designed. What it does:

• Replaces the recirculating/non-ducted filter element used in compatible range hoods
• Helps capture airborne grease and cooking particles in non-vented operation
• Reduces cooking odors when external venting isn't available
• Restores intended airflow filtration for safe, effective recirculation

• Follow your appliance owner's manual for replacement instructions and any model-specific steps
• Power off the hood/light before accessing the filter area
• Handle and dispose of used filters according to local regulations
• Replace regularly per manufacturer recommendations to maintain performance

This LED light bulb restores bright, dependable lighting in your range hood so you can clearly see the cooktop while cooking. It replaces the original lamp specified by the manufacturer for models that call for this part number. What it does:

• Provides task lighting from the hood's light socket
• Replaces a bulb that is burnt out, dim, or flickering
• Helps maintain clear visibility over the cooking surface
• Common symptoms include the light not turning on or intermittent operation

• LED light bulb

• Disconnect power to the hood at the breaker before servicing
• Allow the lamp to cool completely before handling
• Access the light from the underside; remove any lens or retaining ring as designed
• Remove the old bulb, seat the new bulb fully, and test before reinstalling the lens/trim
