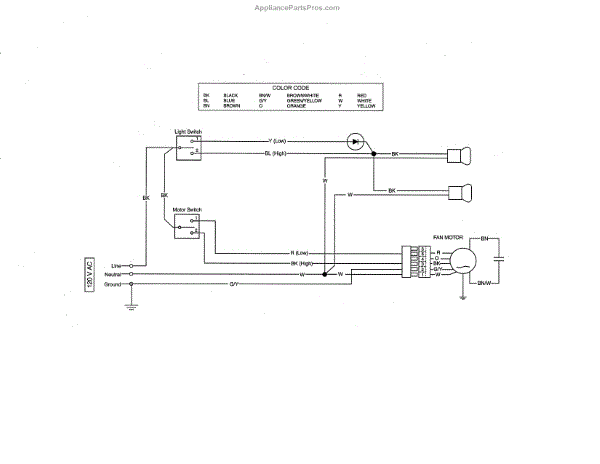

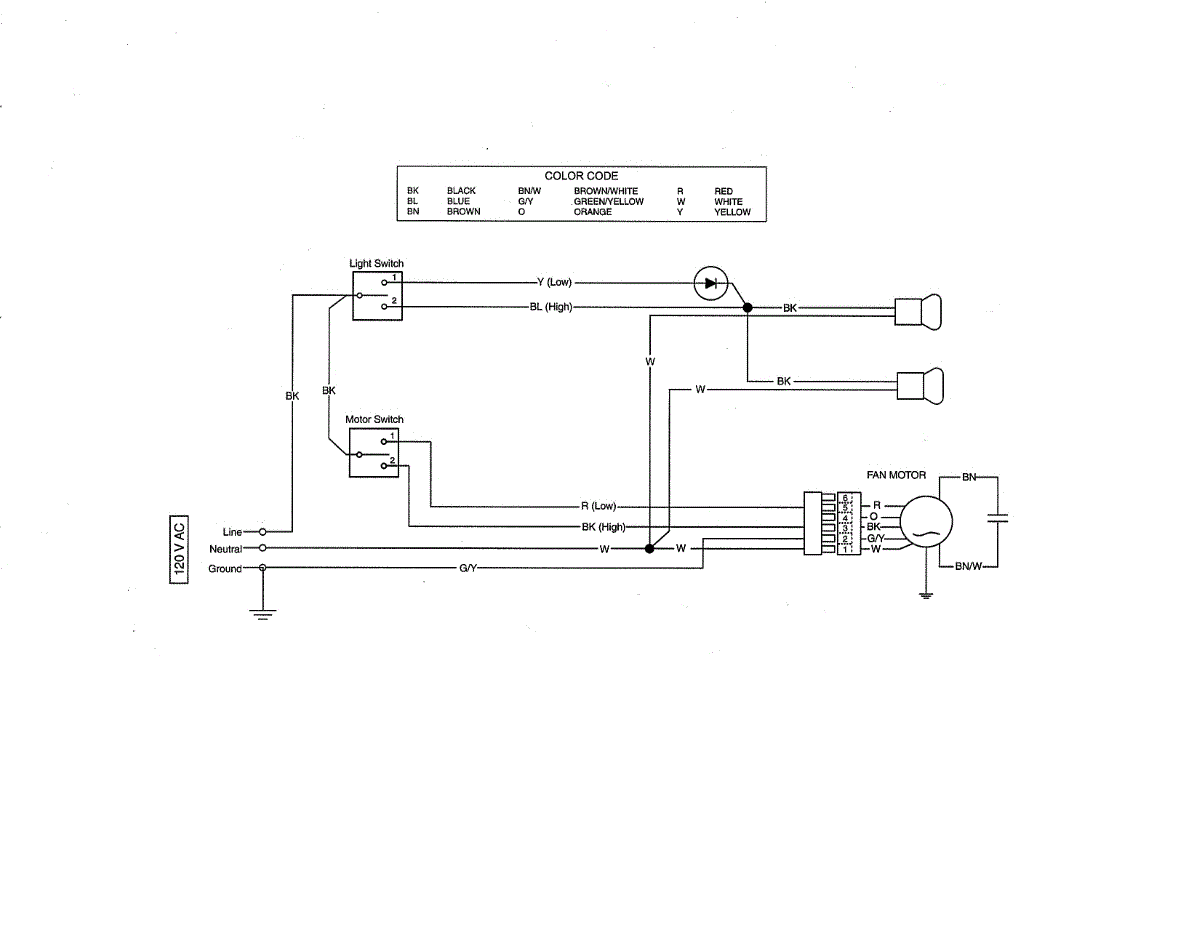

Parts for Broan BKSH130BL: Wiring Diagram Parts

This pair of charcoal filters restores odor control for recirculating range hoods by filtering cooking smells and grease particles from the air. Use when your hood no longer removes kitchen odors effectively. What it does:

• Adsorbs and reduces common cooking odors in recirculating ventilation setups
• Helps maintain cleaner air when ducting to the outside is not available
• Restores intended recirculation performance when old filters are saturated
• Simple maintenance item to keep hood operation fresh and effective

• Turn off power to the hood and follow the hood owner's manual before accessing filters
• Remove the grease filter or access panel per instructions, then replace charcoal filter(s)
• Inspect surrounding filter housing for damage or excess grease and clean as needed
• Dispose of used filters according to local regulations

This install kit provides the hardware needed to mount and connect your ventilation appliance, helping secure the unit and complete the vent/duct connection for reliable operation. Useful when original installation parts are missing or damaged. What it does:

• Supplies mounting brackets, screws, and fittings to fasten and align the appliance
• Provides parts needed to complete the vent/duct connection and maintain airflow
• Replaces missing or damaged installation hardware that can cause loose mounting or noise
• Helps prevent gaps or misalignment that lead to air leaks or improper venting

• Turn off power to the appliance before beginning work and follow all safety precautions.
• Use common hand tools; some installations may require cutting or sealing of ductwork.
• Follow the original equipment manufacturer's installation instructions exactly.

This LED light bulb restores bright, dependable lighting in your range hood so you can clearly see the cooktop while cooking. It replaces the original lamp specified by the manufacturer for models that call for this part number. What it does:

• Provides task lighting from the hood's light socket
• Replaces a bulb that is burnt out, dim, or flickering
• Helps maintain clear visibility over the cooking surface
• Common symptoms include the light not turning on or intermittent operation

• LED light bulb

• Disconnect power to the hood at the breaker before servicing
• Allow the lamp to cool completely before handling
• Access the light from the underside; remove any lens or retaining ring as designed
• Remove the old bulb, seat the new bulb fully, and test before reinstalling the lens/trim
