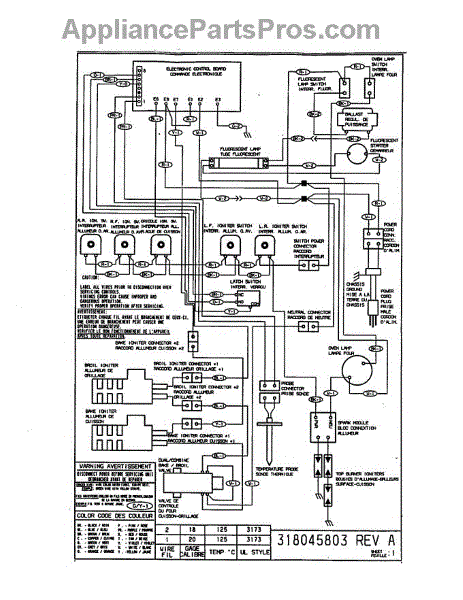

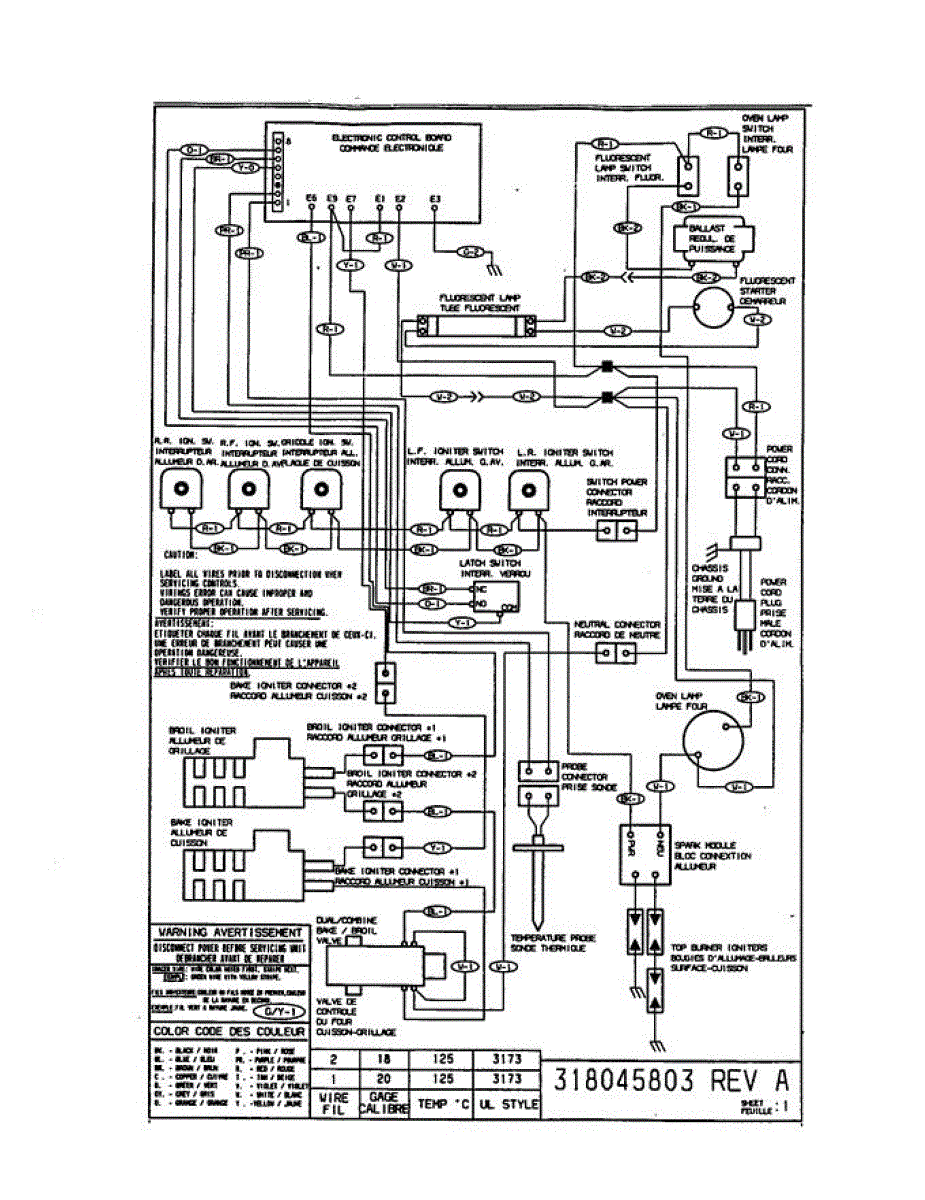

Parts for Tappan TGF657BFB2: Wiring Diagram Parts

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Hex washer head ,10-32 x 0.375. Ground

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

Size: 6-20 x 0.312 inch.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
