Parts for Kenmore 911.47456590 (91147456590, 911 47456590): Wiring Harness Parts

Parts for Kenmore 911.47456590 (91147456590, 911 47456590): Wiring Harness Parts

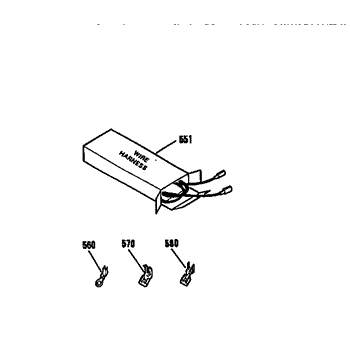

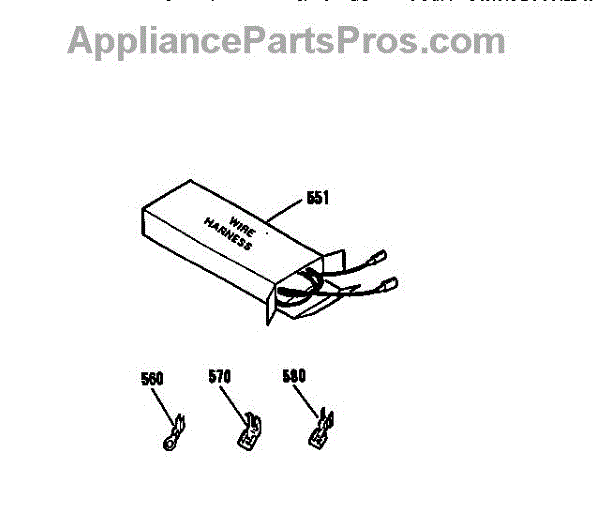

Location on Diagram
Part Description
Price & Availability
551
By: Ge
Part Number: WB18K5210

This wire harness connects the oven door lock motor to the appliance wiring, restoring electrical continuity for reliable door latch operation. It's a direct-fit replacement that helps resolve intermittent or failed lock motor function. What it does:

  • Routes power and signal between the control board and the door lock motor so the latch can engage and release.
  • Commonly used when a door won't lock, unlock, or shows intermittent lock operation.
  • Replaces damaged, frayed, or burned wiring that can interrupt lock motor function.
  • Helps restore proper oven or range door locking during self-clean or cook cycles.
What's included:
  • One lock motor wire harness
Install notes:
  • Disconnect power to the appliance before servicing to avoid shock or injury.
  • Inspect connector ends and routing; replace only if the harness matches the original and connectors seat fully.
  • Some models require partial disassembly of the door or console to access the lock motor; follow the OEM service instructions.

More
$41.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
560
By: Ge
Part Number: WB18M1
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
