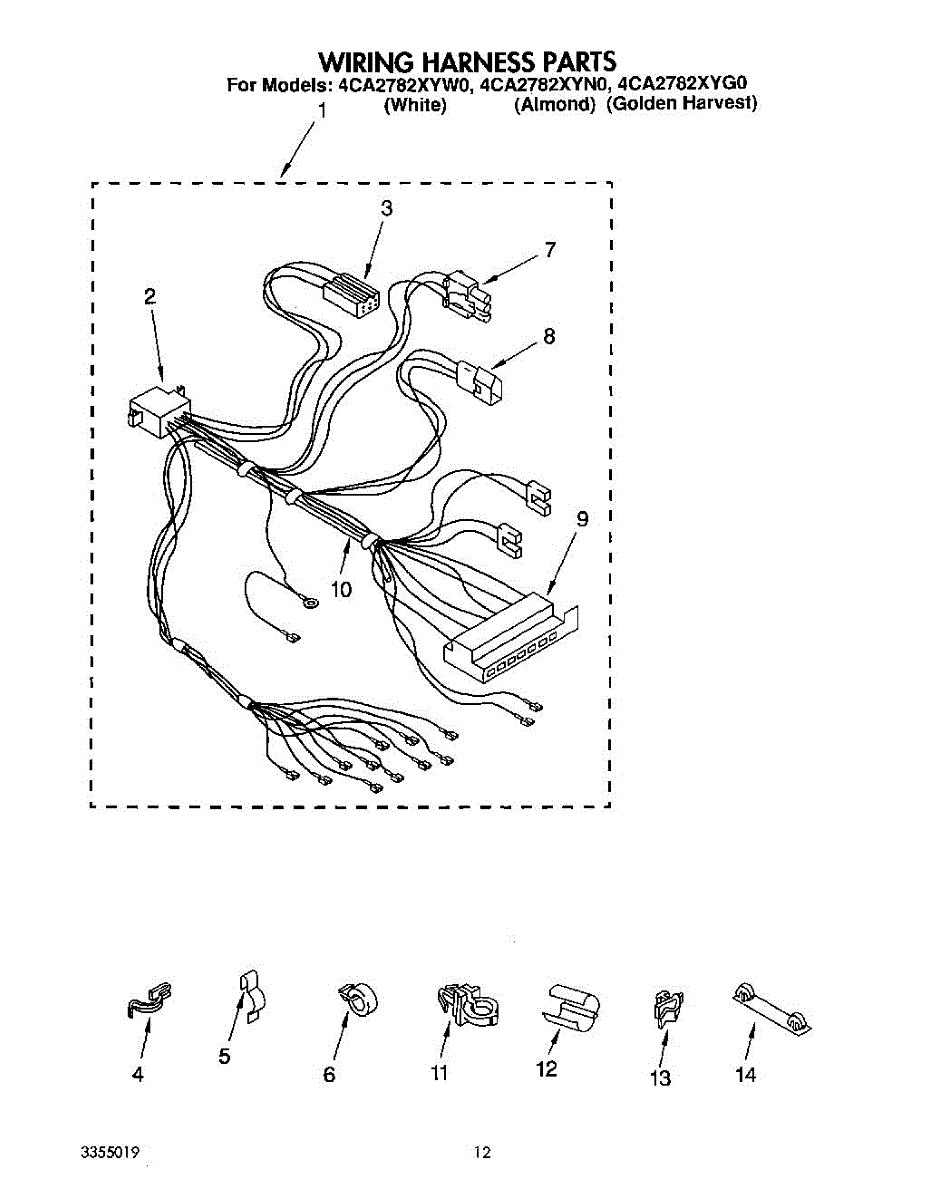

Parts for Whirlpool 4CA2782XYN0: 09 - Wiring Harness Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This 15-way terminal plug provides the wire-to-wire connection used on select appliance control assemblies, restoring secure electrical connections and reliable signal/power routing. Fits into the matching terminal block for proper electrical contact. What it does:

• Re-establishes a 15-position connector between wiring harness and control/terminal block
• Helps stop intermittent operation caused by loose, damaged, or corroded plug connections
• Ensures correct routing of power and control signals when mating terminals are secure
• Used wherever a 15-way plug interface is specified on the appliance wiring harness

• One 15-way terminal plug

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle terminals and wires gently to avoid bending or damaging contacts
• Confirm plug orientation and full seating into the mating terminal block during installation
• If mating terminals or wiring are damaged or corroded, replace those components as well

Used for lid switch.

For mating plug use 691707.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This 10-circuit connector housing provides a secure plug-style connection for the appliance wiring harness, restoring reliable electrical contact where the original plastic connector is cracked or melted. It helps ensure circuits stay seated and insulated. What it does:

• Replaces a damaged or cracked 10-circuit plastic connector housing to restore a proper plug connection
• Secures wiring harness terminals to prevent intermittent power or signal loss
• Keeps electrical contacts insulated from vibration and moisture
• Useful when the mating connector body is broken, burned, or otherwise unusable

• One 10-circuit connector housing

• Disconnect power to the appliance before starting any repairs
• Verify terminal pin type and wiring orientation before removing the old housing; take a photo for reference
• This listing is for the housing only; transfer existing terminals/pins or replace pins with exact matches as needed

Washer overfilling or not filling properly? A damaged pressure switch hose prevents accurate water level sensing. Easy 15-minute DIY fix with video.

Harness retainer secures wiring harnesses inside your washer cabinet. Replace if cracked, broken, or missing to properly route and protect wires.
