Parts for Kitchenaid KEBI100VBL3: 05 - Wiring Harness Parts

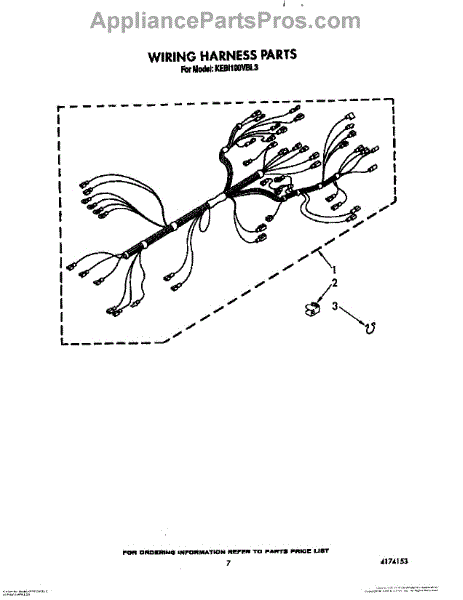

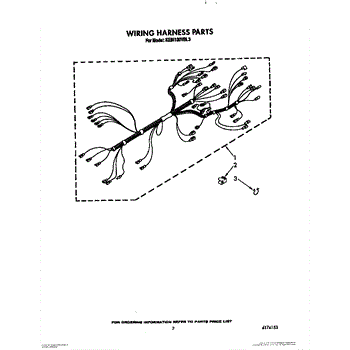

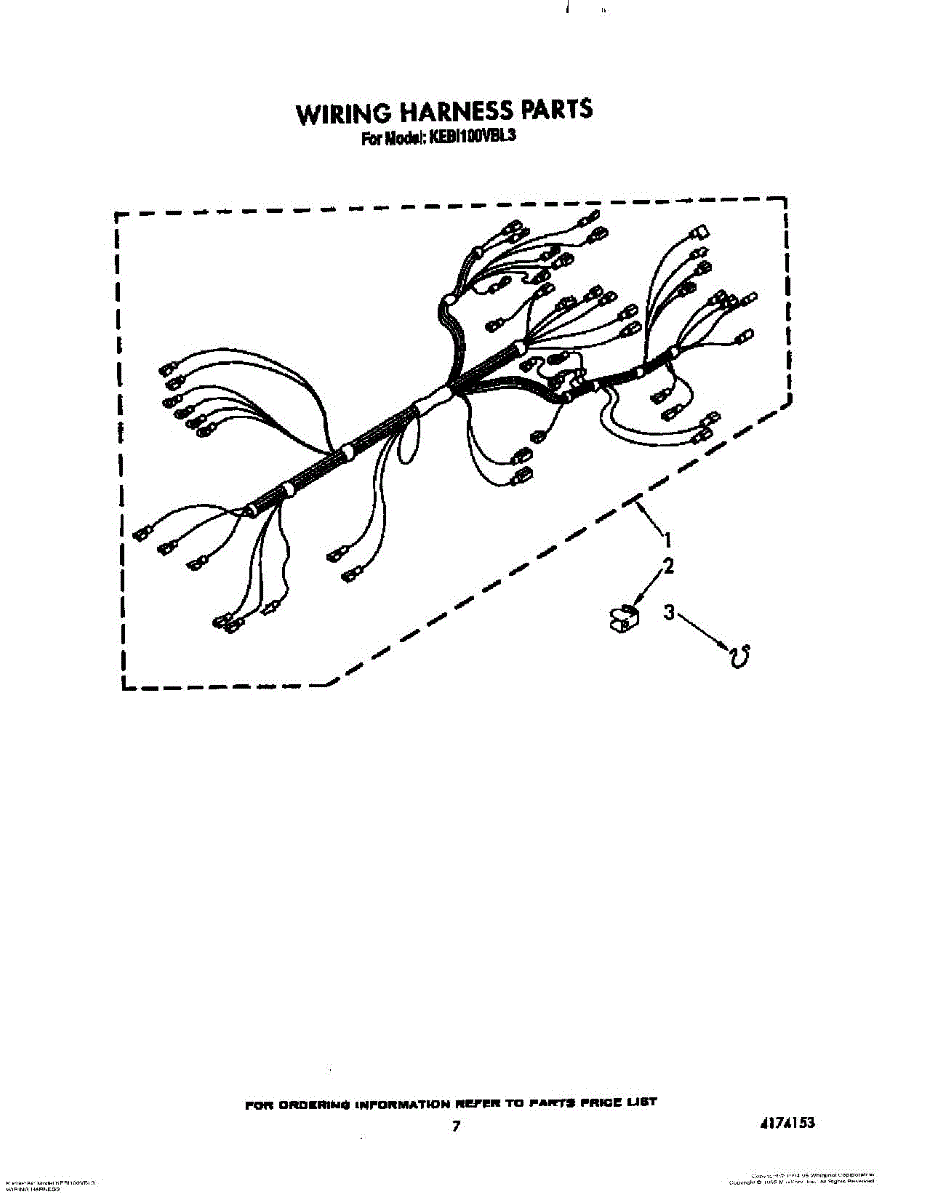

05 - Wiring Harness
Electric Wall Oven

Parts for Kitchenaid KEBI100VBL3: 05 - Wiring Harness Parts

Location on Diagram
Part Description
Price & Availability
1

Wire Harness Main

By: Whirlpool
Part Number: 3149263

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Nut

By: Whirlpool
Part Number: 3147832

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Handle, Drawer (Screw, Black )

By: Whirlpool
Part Number: 308504

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo

Screw,\ 10A\ X\ 1/2\ (Black)

By: Whirlpool
Part Number: 307748

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo

Wire Harness Clip

By: Whirlpool
Part Number: 16515

More
$25.76

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
3
Product photo

Screw (Flat Head)

By: Whirlpool
Part Number: WP488627

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

  • Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
  • Helps maintain alignment and secure attachment during operation
  • Replaces stripped, rusted, or missing hardware
  • Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment
What's included: 1 flat-head screw Install notes:
  • Disconnect power (and shut off gas, if applicable) before servicing
  • Match screw length and thread to the original for proper fit
  • Start threads by hand to avoid cross-threading; tighten snugly without overtightening
  • Support the part being fastened to keep alignment while tightening

More
$12.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart

Insulation, Rear

By: Whirlpool
Part Number: 9754000

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Insulation (Pyro Oven)

By: Whirlpool
Part Number: 310434

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Insulation

By: Whirlpool
Part Number: 3149328

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Repair Parts List

By: Whirlpool
Part Number: LIT4174153

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Instructions, Installation

By: Whirlpool
Part Number: LIT3147385

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Guide, Use & Care

By: Whirlpool
Part Number: LIT3147434

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Cookbook

By: Whirlpool
Part Number: LIT3149670

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
