Parts for Kitchenaid KEBI271BBL3: 08 - Wiring Harness Parts

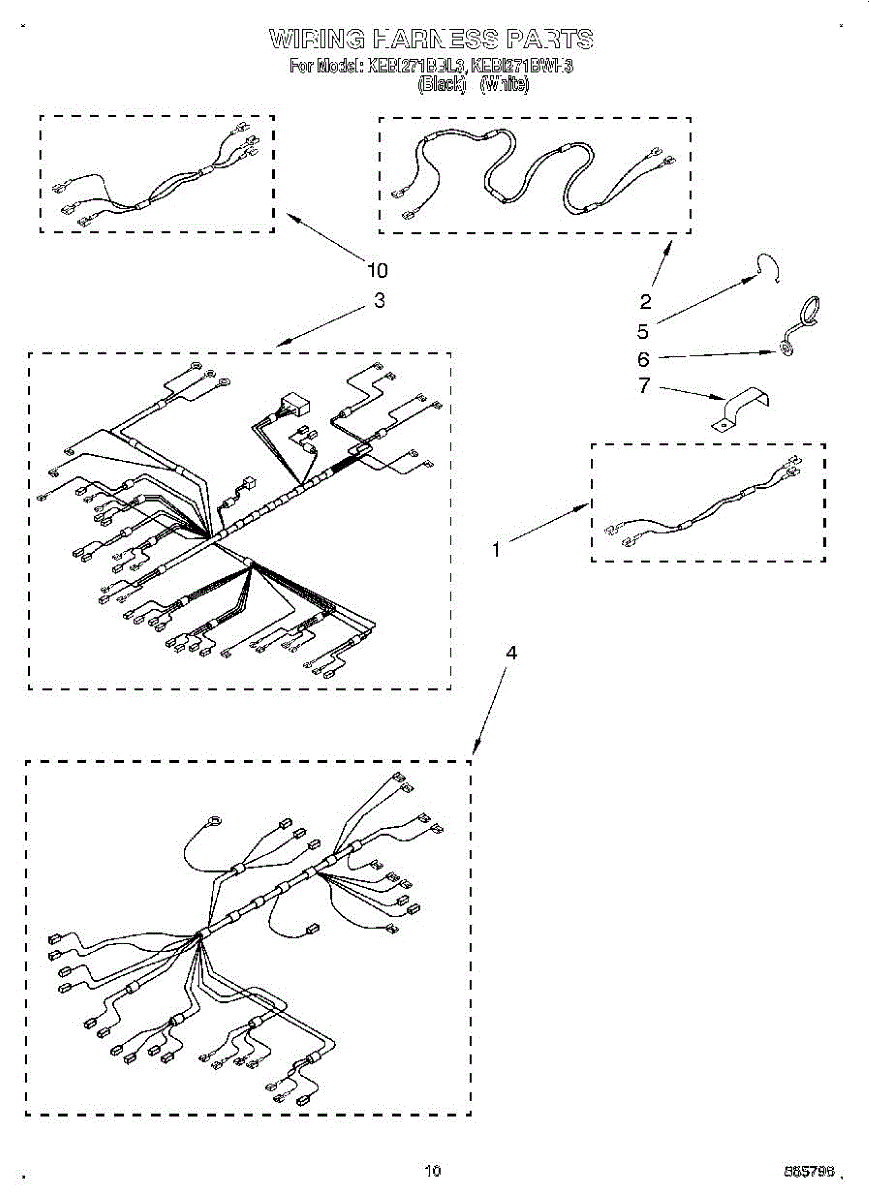

08 - Wiring Harness
Imperial 27" Electric Wall Oven

Parts for Kitchenaid KEBI271BBL3: 08 - Wiring Harness Parts

Location on Diagram
Part Description
Price & Availability
1

Wiring Harness Door Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Harness, Wire (Door Switch Lower)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Harness Wire (Lower Oven)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Harness Wire (Upper Oven)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
Product photo

Wire Harness Clip

By: Whirlpool

More
$24.95
Compare At:
$29.69
You Save:
$4.74

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
5
Product photo

Hex Nut

5.0 (2)
By: Whirlpool

Size: 10-32 inch.

More
$7.95
Compare At:
You Save:

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6

Standoff, Harness Wireform

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Screw

By: Whirlpool

Size: 8 x 3/8 inch.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Clamp

By: Whirlpool

More
$7.56
Compare At:
$8.32
You Save:
$0.76

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
10

Harness, Wire Latch Assembly (Upper Oven)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
