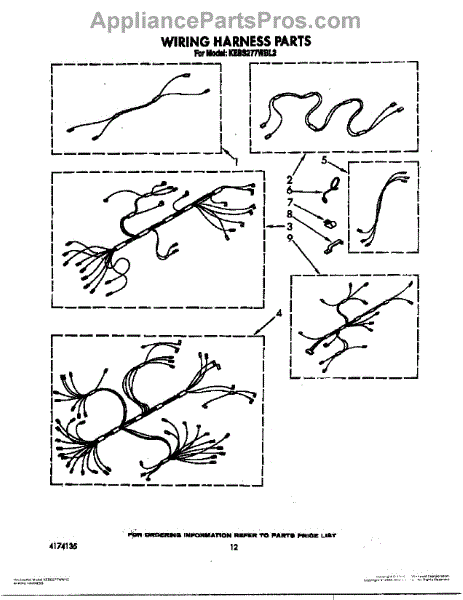

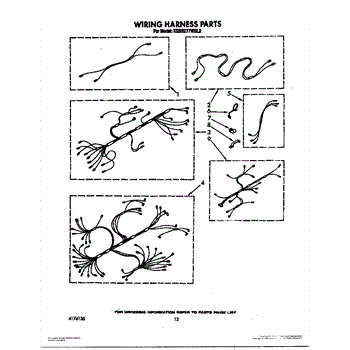

Parts for Kitchenaid KEBS277WAL2: 09 - Wiring Harness Parts

09 - Wiring Harness

Parts for Kitchenaid KEBS277WAL2: 09 - Wiring Harness Parts

Location on Diagram
Part Description
Price & Availability
1

Wiring Harness (Door Switch)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Harness, Wire (Door Switch)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Harness Wire (Lower Oven)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Wire Harness

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5

Harness Adapter Meat Probe

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Standoff, Harness Wireform

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
Product photo

Screw - Trim Mounting

4.5 (2)
By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Product photo

Tube Clamp

By: Whirlpool

More
$7.49
Compare At:
$8.91
You Save:
$1.42

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8

Clamp

By: Whirlpool

More
$7.56
Compare At:
$8.32
You Save:
$0.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
9

Harness, Wiring (T/C Meat Probe)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9
Product photo

Hex Nut

5.0 (2)
By: Whirlpool

Size: 10-32 inch.

More
$7.95
Compare At:
You Save:

IN STOCK
Ships Today Guaranteed
Add to Cart
