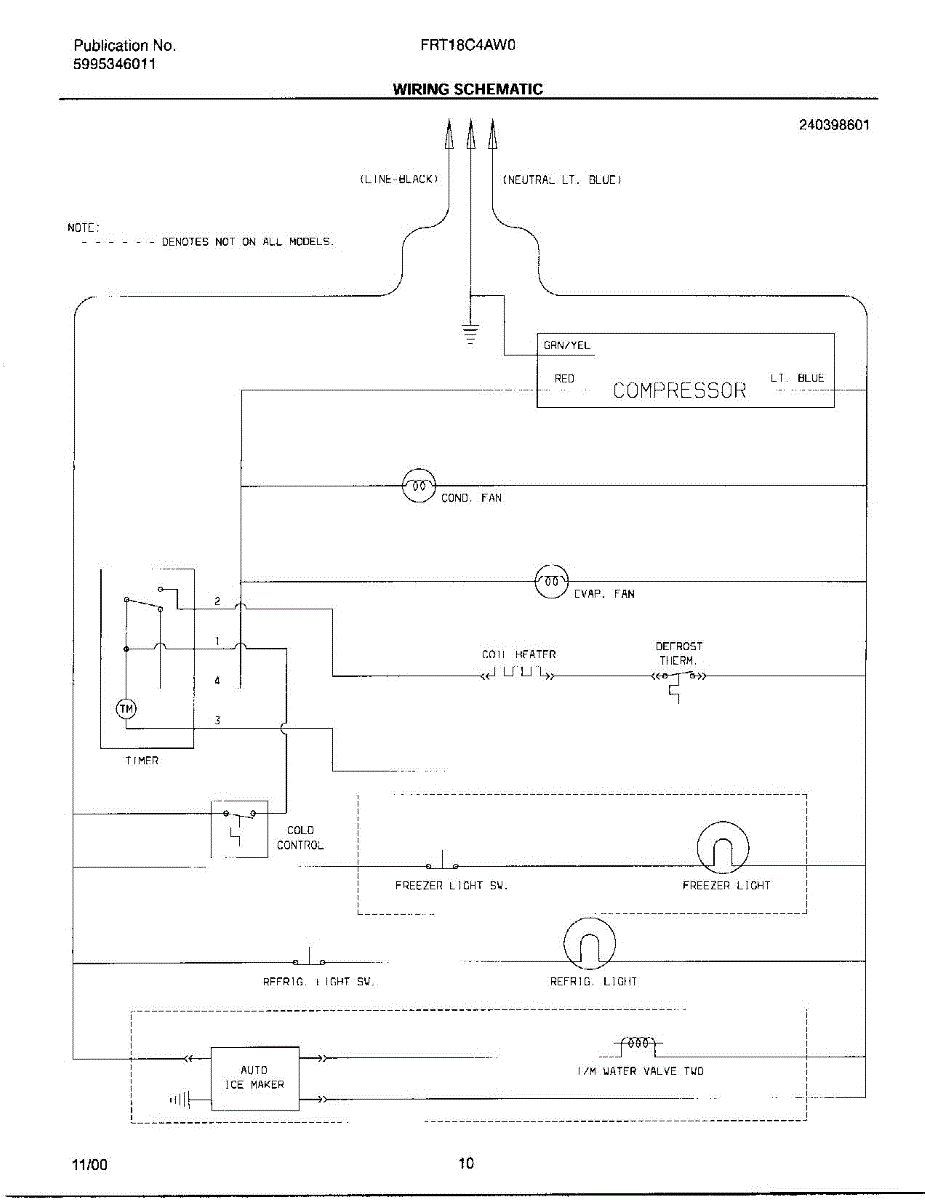

Parts for Frigidaire FRT18C4AW0: 09 - Wiring Schematic Parts

Secures motor wiring in your refrigerator. Replace if adhesive fails or clamp breaks, causing loose wires. Confirm fit with your model number.

Foam seal tape creates airtight barriers around refrigerator components. Replace when worn, compressed, or damaged to restore proper sealing and efficiency.

Seals around the air diffuser to prevent leaks and maintain even temperatures. Replace if worn, cracked, or causing temperature issues. Verify fit with your model number.

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

This heat exchanger suction line kit replaces a damaged or corroded suction line assembly to restore proper refrigerant flow and heat transfer in the cooling system. It helps maintain consistent compartment temperatures and system efficiency. What it does:

• Transfers heat from the refrigerant suction line so the compressor and evaporator operate correctly
• Replaces cracked, kinked, or corroded tubing that can cause refrigerant loss or reduced cooling
• Helps address symptoms such as warm or inconsistent temperatures, visible oil or residue at fittings, or abnormal frost/ice patterns
• Restores a sealed refrigerant path after tubing damage or when corrosion has compromised the line

• Intended for qualified service technicians only; system access requires certified refrigerant handling
• Disconnect power to the appliance before servicing and follow all safety precautions
• Installation may require brazing, flare fittings, or specialty tools; verify leak-tight connections and pressure-test per OEM procedures
• Evacuate and recharge the refrigerant system to OEM specifications after installation

Secures the evaporator or condenser fan shroud to the refrigerator cabinet. Replace this mounting screw if stripped, missing, or broken during repair.

Color: Chrome

Replacement shelf spacer that attaches to wire shelves in your refrigerator or freezer to hold them securely in place. Needed when original is lost or damaged.

Control box wiring harness assembly for refrigerators. Connects control board to components. Replace if wires are damaged, connector is cracked, or harness is worn.

Restores tight seals to stop leaks, drafts, and temperature loss. Replace when you notice gaps, noise, or moisture issues. Verify fit with your model.

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
