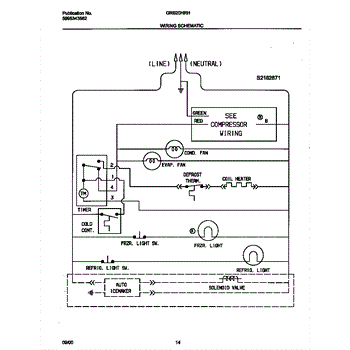

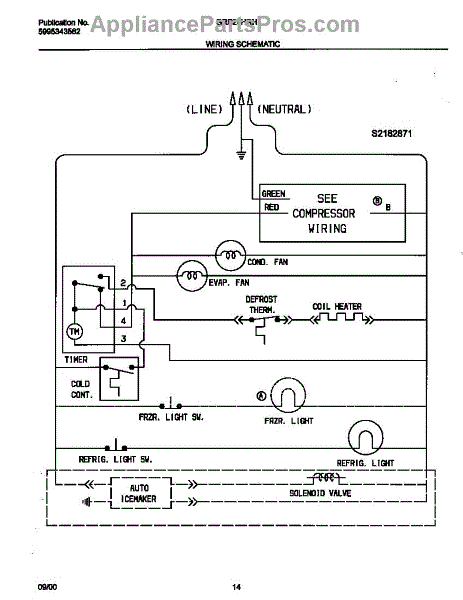

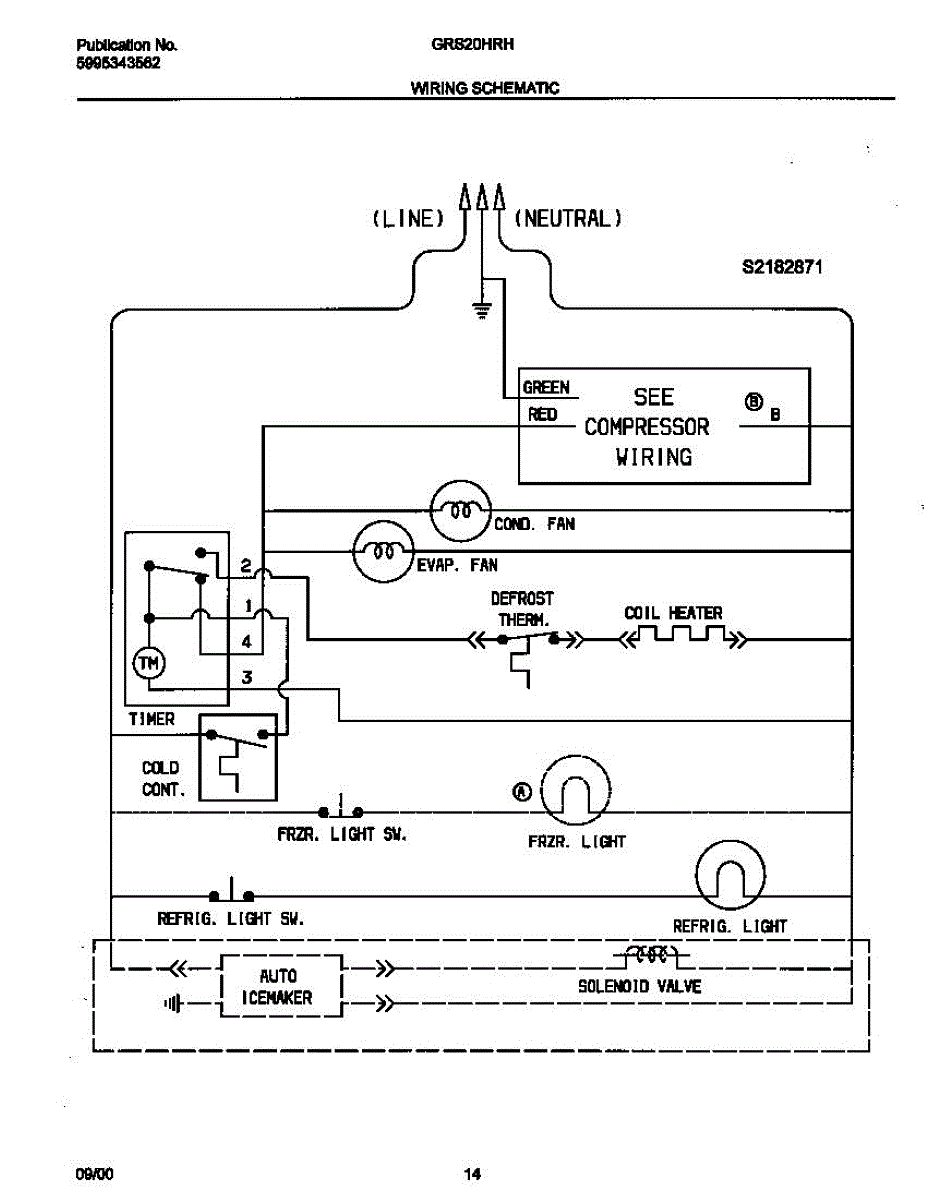

Parts for Frigidaire GRS20HRHD4: 08 - Wiring Schematic Parts

This part has been discontinued by the manufacturer and is no longer available.

Lower hinge tapping plate for refrigerators. Secures the bottom door hinge to the cabinet frame. Replace if cracked, stripped, or damaged.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

This screw is a direct-replacement fastener used to secure appliance panels and trim so components stay in place and operate quietly. It restores proper fit where mounting screws are missing or worn. What it does:

• Secures panels, trim, brackets or small components to the appliance frame
• Helps prevent rattling, misalignment, or loose parts during operation
• Matches OEM thread and head style for correct fit and reliable fastening
• Useful when replacing stripped or missing mounting hardware

• Disconnect power before servicing electrical appliances
• Use the correct screwdriver or bit to avoid stripping the head
• Keep small parts away from children and pets during installation
• Replace with the exact OEM screw to ensure proper fit and safety

This spacer tube positions and supports a refrigerator tube or small component to keep lines aligned and reduce vibration. Replaces a worn or missing spacer to help stop rubbing, rattling, or misalignment of tubing or nearby parts. What it does:

• Holds and centers a tube or small assembly to maintain proper clearance
• Prevents tubing from rubbing against cabinet walls or other components
• Reduces vibration and noise caused by loose or misaligned lines
• Helps maintain correct routing to lower risk of chafing or wear

• Disconnect power and shut off water supply before starting
• Typically installs by sliding or snapping onto the tube or mounting boss; minimal tools needed
• Inspect surrounding tubing and clips; replace any damaged fasteners to ensure secure routing

Refrigerator foam tape seals gaps and reduces vibration. Replace if worn, compressed, or causing air leaks. Verify fit with your model number.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Color: Black

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

Replacement water line tube for refrigerators. Connects water supply to dispenser or ice maker. Replace if cracked, kinked, leaking, or damaged.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.

Nylon washer for the evaporator fan motor shaft in refrigerators. Replace if worn, cracked, or missing to ensure proper fan alignment and operation.
